H30-35471W Page 1 of 6

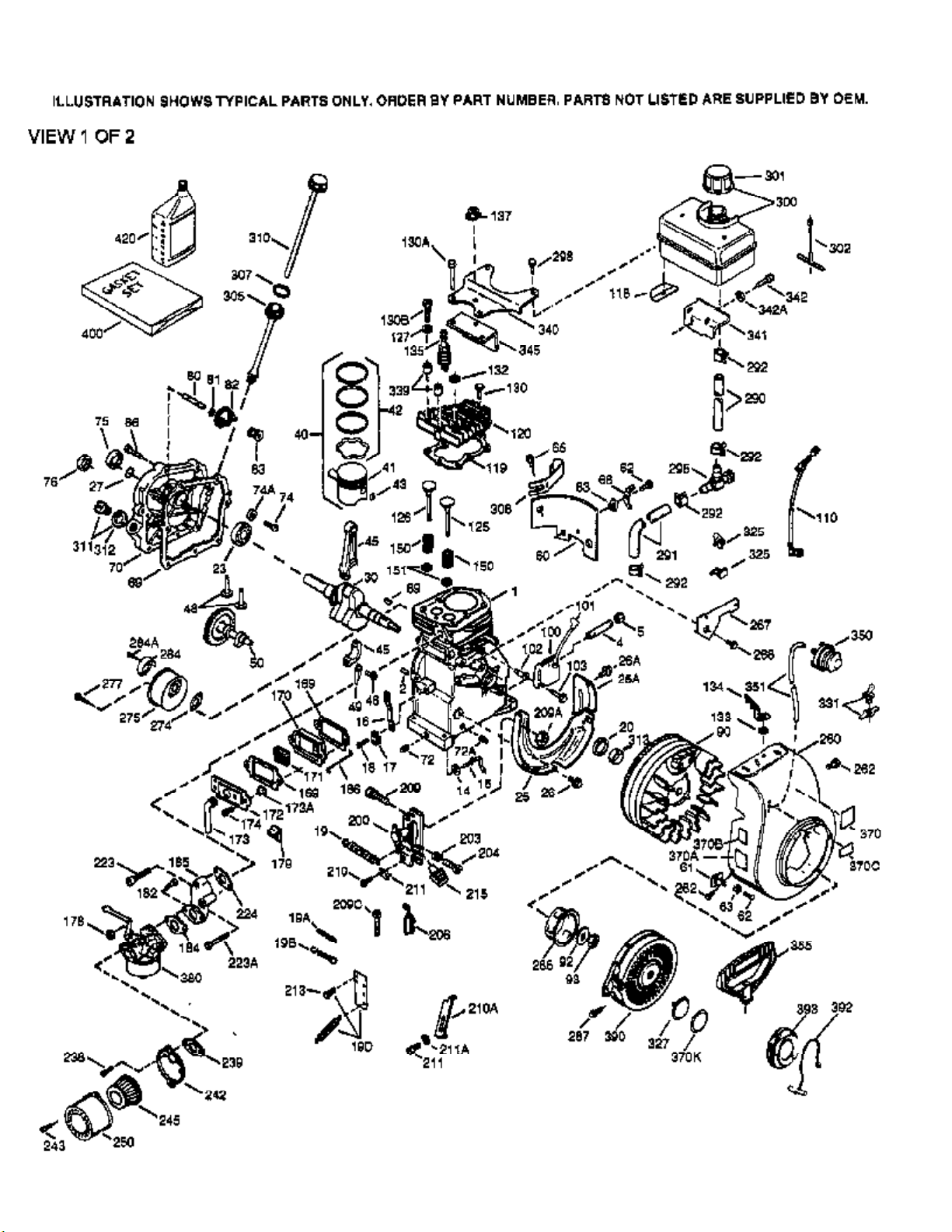

Engine Parts List #1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35471W Page 2 of 6
Engine Parts List #1
Ref # Part Number Qty Description
1 36589 Cylinder (Incl. 2, 20, 72 & 125)1
2 26727 Dowel Pin2
14 28277 Washer1
15 31334 Governor Rod1
16 31510 Governor Lever1
17 31335 Governor Lever Clamp1
18 650548 Screw, 8-32 5/16"1
19 31426 Extension Spring1
20 32600 Oil Seal1
23 28458 Ball Bearing1
25 36552 Blower Housing Baffle (Incl. 262)1
25A 35883 Baffle Extension1
26A 650926 Screw, 8-32 x 21/64"1
26 650802 Screw, 1/4-20 x 5/8"2
27 28539 Retaining Ring1
30 34727 Crankshaft1
40 34514 Piston, Pin & Ring Set (Std.)1
40 34515 Piston, Pin & Ring Set (.010" OS)1
40 34516 Piston, Pin & Ring Set (.020" OS)1
41 32538B Piston & Pin Ass'y. (Std.) (Incl. 43)1
41 32548B Piston & Pin Ass'y. (.010" OS) (Incl. 43)1
41 32549B Piston & Pin Ass'y. (.020" OS) (Incl. 43)1
42 28986 Ring Set (Std.)1
42 28987 Ring Set (.010" OS)1
42 28988 Ring Set (.020" OS)1
43 20381 Piston Pin Retaining Ring2
45 30963B Connecting Rod Ass'y. (Incl. 46 & 49)1
46 32610A Connecting Rod Bolt2
48 27241 Valve Lifter2
49 28594 Oil Dipper1
50 33149A Camshaft (BCR)1
60 29745 Blower Housing Extension1
65 650128 Screw, 10-24 x 1/2"1
69 27677A * Cylinder Cover Gasket1
70 30756C Cylinder Cover (Incl. 75 thru 83 & 31 1)1
72 27642 Oil Drain Plug2
74 30200 Screw, 10-24 x 9/16"2
74A 28537 Washer2
75 28540 Oil Seal1
80 30574A Governor Shaft1
81 30590A Washer1
82 30591 Governor Gear Ass'y. (Incl. 81)1
83 30588A Governor Spool1
86 650488 Screw, 1/4-20 x 1-1/4"7
89 610961 Flywheel Key1
90 611195 Flywheel1
92 650815 Belleville Washer1
93 650816 Flywheel Nut1
100 34443A Solid State Ignition1
101 610118 Spark Plug Cover1
102 650872 Stud2
103 651007 Screw, Torx T-15, 10-24 x 15/16"2
110 35182 Ground Wire1
119 36437 * Cylinder Head Gasket1
120 36438 Cylinder Head (Incl. 130)1
125 36471 Exhaust Valve (Std.) (Incl. 151)1
125 36472 Exhaust Valve (1/32" OS) (Incl. 151)1
126 29314B Intake Valve (Std.) (Incl. 151)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35471W Page 3 of 6
Engine Parts List #1
Ref # Part Number Qty Description
126 29315C Intake Valve (1/32" OS) (Incl. 151)1
130 650694A Screw, 5/16-18 x 2"5
131 6021A Screw, 5/16-18 x 1-1/2"3
135 33636 Resistor Spark Plug (J8C/356)1
150 31672 Valve Spring2
151 31673 Valve Spring Cap2
169 27234A * Valve Cover Gasket2
170 27666 Breather Body1
171 31410 Breather Element1
172 34146 Valve Cover1
173 35350 Breather Tube1
174 30200 Screw, 10-24 x 9/16"2
178 29752 Nut & Lock Washer, 1/4-282
182 6201 Screw, 1/4-28 x 7/8"2
184 26756 * Carburetor To Intake Pipe Gasket1
185 28416A Intake Pipe1
186 31858 Governor Link1
200 36677 Control Bracket (Incl. 203 thru 209A & 212 th ru 217)1
203 31342 Compression Spring1
204 650549 Screw, 5-40 x 7/16"1
206 610973 Terminal1
209A 30322 Lock Nut, 8-322
209 650139 Screw, 8-32 x 3/4"2
210 27793 Conduit Clip1
211 28942 Screw, 10-32 x 3/8"1
215 32410 Control Knob1
223 650664 Screw, 1/4-20 x 1-19/32"1
223A 650840 Screw, 1/4-20 x 1-7/32"1
224 26754A * Intake Pipe Gasket1
238 650152 Screw, 8-32 x 3/8"2
239 27272A * Air Cleaner Gasket1
242 31691 Air Cleaner Base1
243 28820 Screw, 10-32 x 1/2"2
245 30727 Air Cleaner Filter1
250 31715 Air Cleaner Cover1
260 35585 Blower Housing1
262 650737 Screw, 1/4-20 x 1/2"2
267 34212 Hold Down Bracket1
268 30200 Screw, 10-24 x 9/16"1
275 36473 Muffler (Incl. 277)1
277 650988 Screw, 1/4-20 x 9/32"2
285 36467A Starter Cup1
287 650926 Screw, 8-32 x 21/64"2
290 30705 Fuel Line1
292 26460 Fuel Line Clamp2
298 650665 Screw, 1/4-15 x 7/8"2
300 35584 Fuel Tank (Incl. 292 & 301)1
301 35355 Fuel Cap1
311 27625 Oil Fill Plug2
313 34080 Spacer1
340 36247 Fuel Tank Bracket1
342 650751 Screw, 1/4-20 x 7/16"1
345 33344 Heat Baffle1
370 34686 Name Decal1
370J 35703 Throttle Decal1
370A 36261 Lubrication Decal1
370K 36695 Starter Decal1
380 631921 Carburetor (Incl. 184)1
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35471W Page 4 of 6
Engine Parts List #1
Ref # Part Number Qty Description
390 590732 Rewind Starter (NOTE: This engine could hav e been built
1
with 590738 starter. Refer to the design of the rope pulley
strength ribs for part identification. Individual starter parts do
not interchange. Refer to service bulletin 116.)
400 36439 * Gasket Set (Incl. items marked PK i n notes) Incl. part #'s
420 730225 SAE 30 4-Cycle Engine Oil (Quart)1
1
26754A (1), 26756 (1), 27234A (2), 27272A (1), 27677A (1),
29673 (1), 30081A (1), 31688A (1), 32649A (1), 36437 (1)
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35471W Page 5 of 6
Engine Parts List #2
www.mymowerparts.com
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
H30-35471W Page 6 of 6
Engine Parts List #2
Ref # Part Number Qty Description
16 31510 Governor Lever1
17 31335 Governor Lever Clamp1
18 650548 Screw, 8-32 5/16"1
131 6021A Screw, 5/16-18 x 1-1/2"3
178 29752 Nut & Lock Washer, 1/4-282
200 36677 Control Bracket (Incl. 203 thru 209A & 212 th ru 217)1
203 31342 Compression Spring1
204 650549 Screw, 5-40 x 7/16"1
206 610973 Terminal1
209 650139 Screw, 8-32 x 3/4"2
209A 30322 Lock Nut, 8-322
209B 36691 Lock Nut1
212 36689 Speed Control Lever Bushing1
212A 36688 Bearing Plate1
212C 650953 Screw, 10-32 x 1/2"1
212B 650583 Washer1
216 36690 R.P.M. Adjusting Lever1
217 36687 Speed Control Lever1
238 650152 Screw, 8-32 x 3/8"2
242 31691 Air Cleaner Base1
245 30727 Air Cleaner Filter1
250 31715 Air Cleaner Cover1
275 36473 Muffler (Incl. 277)1
277 650988 Screw, 1/4-20 x 9/32"2
370J 35703 Throttle Decal1
370A 36261 Lubrication Decal1
380 631921 Carburetor (Incl. 184)1
