Page 1
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 1 of 9
Engine Parts List #1
www.mymowerparts.com
Page 2
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 2 of 9
Engine Parts List #1
Ref # Part Number Qty Description
1 35513 Cylinder Assy. (2-5/8" Bore)0
2 26727 Pin, Dowel0
3 32323 Washer, Thrust (.010" thick)0
4 32600 Seal, Oil0
5 29313C Valve, Exhaust (Standard) (Conventional0
5 29315C Valve, Exhaust (1/32" oversize)0
6 29314B Valve, Intake (Standard) (Conventional0
6 29315C Valve, Exhaust (1/32" oversize)0
8 31671 Cap, Upper valve spring0
9 31672 Spring, Valve0
10 31673 Cap, Lower valve spring0
11 35173 Crankshaft Assy.0
12 29783 Pin, Crankshaft gear0
13 27613 Gear, Crankshaft0
14 34851 Piston, Pin & Ring Assy. (Std.) (2-5/8")0
14 34852 Piston, Pin & Ring Assy. (.010 oversize)0
14 34853 Piston, Pin & Ring Assy. (.020 oversize)0
14A 32603B Piston & Pin Assy. (Std.) (2-5/8")0
14A 32604B Piston & Pin Assy. (.010 oversize)0
14A 32605B Piston & Pin Assy. (.020 oversize)0
15 34854 Ring Set, Piston (Standard) (2-5/8")0
15 34855 Ring Set, Piston (.010 oversize)0
15 34856 Ring Set, Piston (.020 oversize)0
16 20381 Ring, Piston pin retaining0
17 30963B Rod Assy., Connecting0
18A 32610A Bolt, Connecting rod0
21A 27241 Lifter, Valve0
21 27241 Lifter, Valve0
22 33553 Camshaft (Mechanical Compression Release)0
23 29914 Pump Assy., Oil0
24 35261 Gasket, Mounting flange0
25 35179 Flange Assy., Mounting0
26 27897 Seal, Oil0
27 28833 Gasket, Oil drain0
28 30572 Plug, Drain (Hex hd. 3/8-18)0
30 650488 Screw0
31 30590A Washer, Flat0
32 30574 Shaft, Mechanical governor0
33 30591 Gear Assy., Governor0
34 29193 Ring, Retaining0
35 30588A Spool, Governor0
36 31335 Clamp, Governor lever0
37 28277 Washer, Flat0
38 650548 Screw, Hex washer hd., 8-32 x 5/160
39 31383A Lever, Governor0
40 31361 Spring, Governor0
41 30589 Rod, Governor0
43 610961 Key, Flywheel (Std. Pt. Ign.)0
44A 6021A Screw, Hex flange hd., 5/16-18 x 1-1/20
44 650694A Screw, Hex flange hd., 5/16-18 x 20
45 35395 Plug, Spark (Champion RJ-19LM or equivalent)0
46 33015 Gasket, Cylinder head0
47 34342 Head, Cylinder0
48 26073 Washer, Connecting rod bolt0
51 30200 Screw0
53 34336 Link, Governor-to-throttle0
54 34337 Link, Governor spring0
55 32755 Cover, Valve spring box0
www.mymowerparts.com
Page 3
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 3 of 9
Engine Parts List #1
Ref # Part Number Qty Description
56 27234 Gasket, Breather cover0
57 650128 Screw0
59 34690 Gasket, Intake0
60 31384A Pipe, Intake0
61 6201 Screw0
62 650451 Screw0
67 26756 Gasket, Carburetor0
71 29752 Nut0
99 650831 Screw, Hex washer hd. Powerlok thread,0
100 30200 Screw0
102 34118 Cap, Fuel filler (Red Plastic) (Spurt0
102 35355 Cap, Fuel filler (Red Plastic)0
102 410144B Cap, Fuel filler (White Plastic) (Std.)0
103 29774 Line, Fuel (Braided 8.25")0
103 30705 Line, Fuel (Braided 16")0
103 34357 Line, Fuel (Epichlorohydrin 6-3/4")0
104 26460 Clamp, Fuel line0
115 610973 Terminal Assy.0
121 650795 Screw, Hex hd. cap, Sems, 1/4-20 x 2-5/160
124 650562 Screw0
125 34265 Gasket, Oil fill tube0
125 34282 "O" Ring (.612 I.D. x .812 O.D. x .1030
126 35498 Tube Assy., Oil filler (Plastic)0
127 35499 "O" Ring0
128 35507 Dipstick, Oil (Screw In)0
129 610118 Cover, Spark plug0
130 650816 Nut, Flywheel0
131 650815 Washer, Belleville0
132C 35000 Hub, Starter0
165 34080 Spacer, Flywheel key0
192A 0 Rivet, Pop (3/16" Dia.)0
199 650814 Screw, Hex hd. Sems, 10-24 x 10
200 611123 Flywheel0
201 34443A Solid State Assy.0
201 730207 Magneto-to-Solid State Conversion Kit0
251 631021 Inlet Needle, Seat & Clip Assy.0
255 632468 Carburtor0
258 33238C Gasket Set0
www.mymowerparts.com
Page 4
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 4 of 9
Engine Parts List #2
www.mymowerparts.com
Page 5
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 5 of 9
Engine Parts List #2
Ref # Part Number Qty Description
1 35513 Cylinder Assy. (2-5/8" Bore)0
2 26727 Pin, Dowel0
50A 34214A Breather Assy.0
51 30200 Screw0
52C 35496 Tube, Breather0
52B 33734 Element, Breather0
52A 33735 Gasket, Breather0
63 650506 Screw0
64 631036 Shutter, Throttle0
65 631530 Shaft Assy., Throttle0
66 631066 Spring, Return0
92A 35518 Wire Assy., Ground0
115 610973 Terminal Assy.0
165 34080 Spacer, Flywheel key0
172A 611119 Connector0
192 650884 Screw, Hex washer hd., 8-32 x 1/20
192A 0 Rivet, Pop (3/16" Dia.)0
198A 35168 Bracket Assy., Rope guide0
228 34985 Rope Stop & Staple Assy.0
www.mymowerparts.com
Page 6
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 6 of 9
Engine Parts List #3
www.mymowerparts.com
Page 7
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 7 of 9
Engine Parts List #3
Ref # Part Number Qty Description
98D 35497 Housing, Blower0
99 650831 Screw, Hex washer hd. Powerlok thread,0
100 30200 Screw0
102A 35480 Retainer, Fuel cap0
102 34118 Cap, Fuel filler (Red Plastic) (Spurt0
102 35355 Cap, Fuel filler (Red Plastic)0
102 410144B Cap, Fuel filler (White Plastic) (Std.)0
130 650816 Nut, Flywheel0
131 650815 Washer, Belleville0
132 32237 Screen, Flywheel0
192 650884 Screw, Hex washer hd., 8-32 x 1/20
240 35508 Shroud & Tank Assy.0
241 650900 Clip, "U" Type nut0
242 35510 Grill, Recoil starter0
243 650898 Screw, Hex washer hd. shoulder, 10-32 x0
244A 35705 Filter, Pre-air (Poly)0
244 35500 Filter, Air cleaner (Paper)0
245 650899 Screw, Fil. hd. Sems, 10-32 x 2-3/320
246 35531 Cover, Air cleaner0
256C 590637 Starter, Rewind0
www.mymowerparts.com
Page 8
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 8 of 9

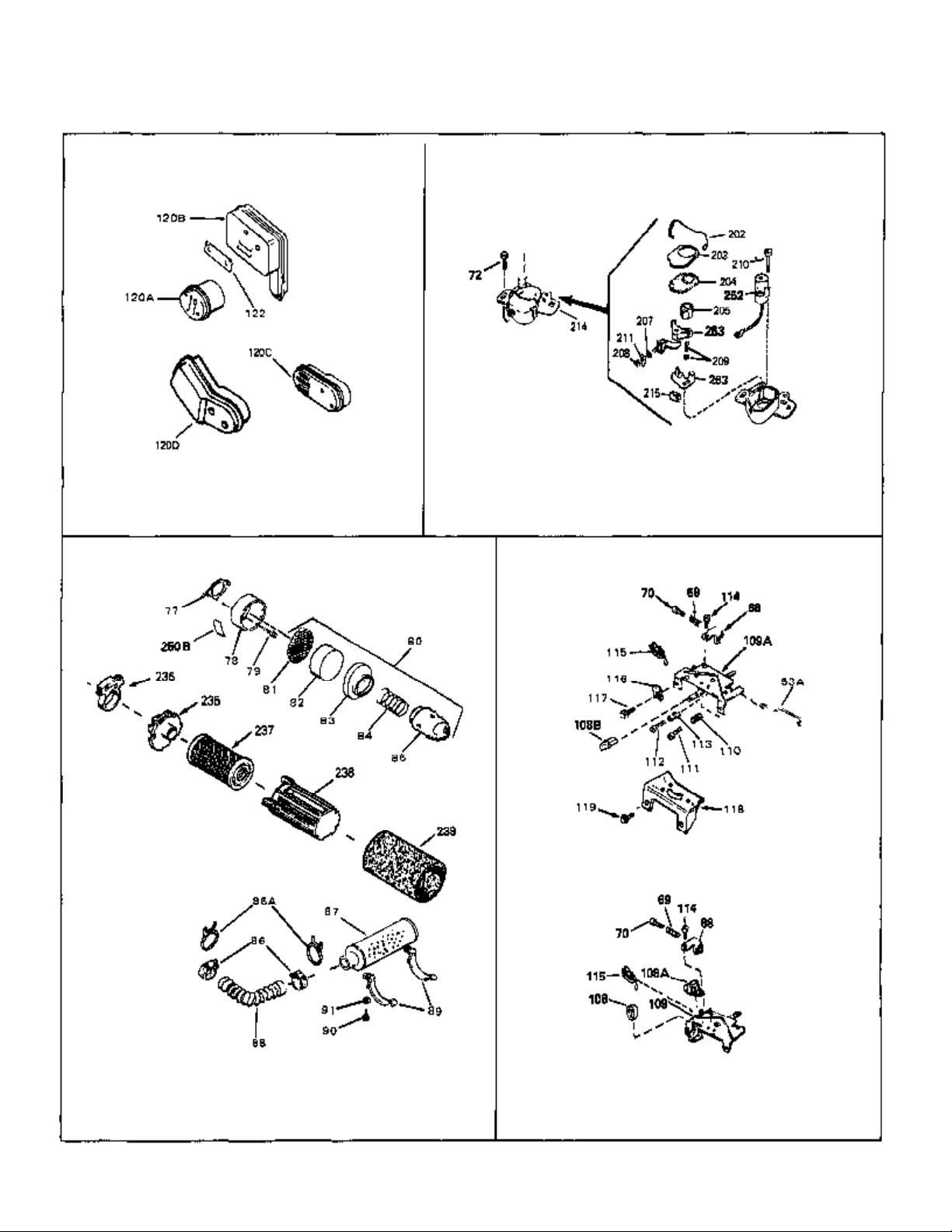

Engine Parts List #4
www.mymowerparts.com
Page 9
For Discount Tecumseh Engine Parts Call 606-678-9623 or 606-561-4983
ECV100-145310F Page 9 of 9
Engine Parts List #4
Ref # Part Number Qty Description
86 35505 Clamp, Air cleaner tube0
88 35504 Tube, Air cleaner0
108B 35511 Knob, Speed control0
109A 33205A Control Assy., Speed0
110 33802 Spring Compression0
111 650777 Screw, Slotted fil. hd. mach., 6-32 x 7/160
112 650549 Screw0
113 31342 Spring, Compression0
114 30200 Screw0
115 610973 Terminal Assy.0
120C 34613 Muffler0
122 33753 Plate, Lock0
239 35435 Filter, Pre-Air (Poly)0
www.mymowerparts.com
