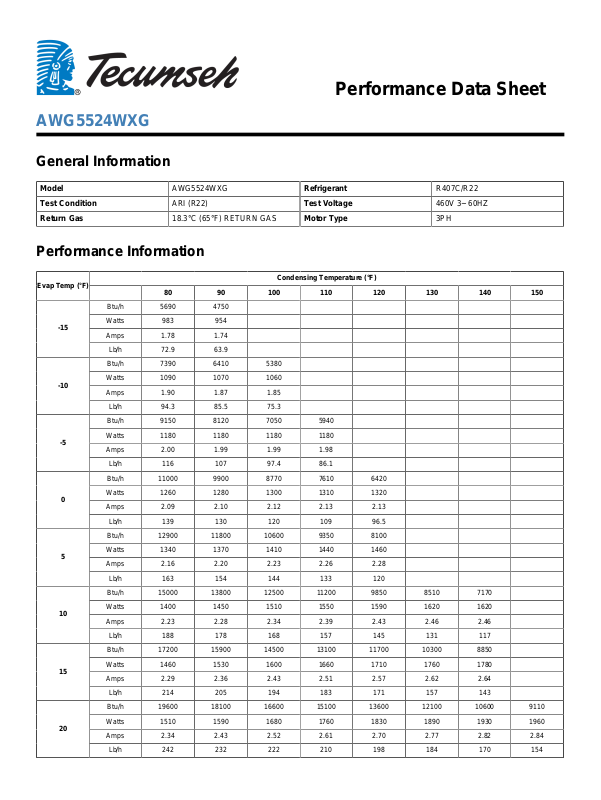

Performance Data Sheet
AWG5524WXG
General Information
Model AWG5524WXG Refrigerant R407C/R22
Test Condition ARI (R22) Test Voltage 460V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140 150
Btu/h 5690 4750
Watts 983 954
Amps 1.78 1.74
Lb/h 72.9 63.9
Btu/h 7390 6410 5380
Watts 1090 1070 1060
Amps 1.90 1.87 1.85
Lb/h 94.3 85.5 75.3
Btu/h 9150 8120 7050 5940
Watts 1180 1180 1180 1180
Amps 2.00 1.99 1.99 1.98
Lb/h 116 107 97.4 86.1
Btu/h 11000 9900 8770 7610 6420
Watts 1260 1280 1300 1310 1320
Amps 2.09 2.10 2.12 2.13 2.13
Lb/h 139 130 120 109 96.5
Btu/h 12900 11800 10600 9350 8100
Watts 1340 1370 1410 1440 1460
Amps 2.16 2.20 2.23 2.26 2.28
Lb/h 163 154 144 133 120
Btu/h 15000 13800 12500 11200 9850 8510 7170
Watts 1400 1450 1510 1550 1590 1620 1620
Amps 2.23 2.28 2.34 2.39 2.43 2.46 2.46
Lb/h 188 178 168 157 145 131 117
Btu/h 17200 15900 14500 13100 11700 10300 8850
Watts 1460 1530 1600 1660 1710 1760 1780
Amps 2.29 2.36 2.43 2.51 2.57 2.62 2.64
Lb/h 214 205 194 183 171 157 143
Btu/h 19600 18100 16600 15100 13600 12100 10600 9110
Watts 1510 1590 1680 1760 1830 1890 1930 1960
Amps 2.34 2.43 2.52 2.61 2.70 2.77 2.82 2.84
Lb/h 242 232 222 210 198 184 170 154
Btu/h 22200 20600 19000 17300 15700 14100 12500 10900
25
30
35
40
45
50
55
Watts 1550 1650 1750 1850 1930 2010 2070 2120
Amps 2.38 2.49 2.60 2.71 2.81 2.91 2.98 3.03
Lb/h 272 262 251 239 226 213 198 183
Btu/h 24900 23200 21500 19700 18000 16200 14500 12800
Watts 1590 1700 1820 1930 2030 2130 2210 2270
Amps 2.42 2.54 2.67 2.80 2.93 3.04 3.14 3.21
Lb/h 304 293 282 270 257 243 228 213
Btu/h 27900 26000 24100 22300 20400 18500 16600 14800
Watts 1620 1740 1870 2000 2120 2230 2330 2410
Amps 2.45 2.59 2.73 2.88 3.03 3.17 3.29 3.38
Lb/h 338 327 315 303 289 275 260 245
Btu/h 31200 29100 27100 25000 23000 20900 18900 17000
Watts 1640 1780 1920 2070 2200 2330 2440 2540
Amps 2.47 2.63 2.79 2.96 3.13 3.29 3.43 3.55
Lb/h 375 363 351 338 324 310 295 279
Btu/h 34700 32400 30200 28000 25800 23600 21400 19300
Watts 1660 1810 1970 2130 2280 2420 2550 2660
Amps 2.49 2.66 2.85 3.03 3.22 3.40 3.57 3.71
Lb/h 415 403 390 376 362 347 331 315
Btu/h 38500 36000 33600 31200 28800 26500 24200 21900
Watts 1670 1840 2010 2180 2350 2500 2650 2780
Amps 2.50 2.69 2.90 3.10 3.31 3.51 3.70 3.87
Lb/h 458 445 431 417 402 386 370 354
Btu/h 42600 39900 37300 34700 32100 29600 27100 24600
Watts 1670 1850 2040 2220 2410 2580 2740 2890
Amps 2.51 2.72 2.94 3.17 3.39 3.62 3.83 4.02
Lb/h 504 490 475 460 445 429 412 395
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.796288E+04 1.465969E+03 2.693576E+00 1.720976E+02
C2 5.267545E+02 -6.149092E+00 -4.416901E-03 5.246885E+00
C3 -6.267262E+01 -1.126886E+01 -2.299348E-02 -4.710550E-02
C4 4.185345E+00 -1.316395E-01 -1.973429E-04 3.257774E-02
C5 -2.269788E+00 2.300779E-01 1.735606E-04 -1.356483E-02
C6 -3.578407E-01 1.596548E-01 2.733686E-04 -4.058455E-03
C7 2.701652E-02 4.809128E-04 1.135271E-06 3.084975E-04
C8 -2.641499E-02 -5.768510E-04 -3.551857E-07 -1.612851E-04
C9 5.233609E-03 5.520883E-04 1.140680E-06 7.304413E-05
C10 6.566958E-04 -6.343609E-04 -1.009894E-06 -6.638636E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
AWG5524WXG
General Information
Model AWG5524WXG Refrigerant R407C/R22
Test Condition ARI (R407C) Test Voltage 460V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140 150
Btu/h 11900 8960
Watts 1010 954
Amps 0.69 0.75
Lb/h
Btu/h 11100 8530 6000
Watts 1110 1050 1040
Amps 0.98 1.06 1.08
Lb/h 11.5
Btu/h 10700 8530 6280 4160
Watts 1210 1140 1130 1160
Amps 1.22 1.32 1.36 1.38
Lb/h 59.0 35.8 4.60
Btu/h 10800 8940 6940 5000 3320
Watts 1310 1240 1220 1250 1290
Amps 1.42 1.55 1.61 1.63 1.65
Lb/h 97.2 80.0 54.6 25.1
Btu/h 11300 9730 7940 6150 4550
Watts 1410 1330 1320 1340 1390
Amps 1.57 1.73 1.81 1.85 1.88
Lb/h 128 116 95.8 71.0 45.7
Btu/h 12200 10900 9260 7590 6030 4790 4030
Watts 1510 1420 1410 1440 1490 1530 1540
Amps 1.70 1.89 1.99 2.05 2.09 2.13 2.23
Lb/h 154 146 130 109 87.6 69.2 58.2
Btu/h 13500 12300 10900 9280 7740 6450 5580
Watts 1600 1520 1500 1530 1590 1640 1660
Amps 1.78 2.01 2.15 2.22 2.27 2.33 2.42
Lb/h 177 173 160 142 123 107 98.5
Btu/h 15000 14100 12700 11200 9660 8280 7260 6780
Watts 1690 1610 1590 1630 1690 1750 1780 1760
Amps 1.84 2.11 2.27 2.37 2.44 2.50 2.60 2.75
Lb/h 199 198 187 172 155 140 133 136
Btu/h 16900 16100 14900 13300 11700 10200 9040 8320
25
30
35
40
45
50
55
Watts 1780 1690 1680 1730 1790 1860 1910 1910
Amps 1.87 2.18 2.38 2.51 2.59 2.67 2.77 2.92
Lb/h 222 223 214 200 184 171 164 168
Btu/h 19100 18400 17200 15700 14000 12300 10900 9910
Watts 1870 1780 1770 1820 1900 1980 2040 2050
Amps 1.87 2.23 2.47 2.63 2.74 2.83 2.93 3.08
Lb/h 249 251 243 229 213 200 193 196
Btu/h 21500 20900 19700 18100 16300 14500 12800 11500
Watts 1950 1860 1860 1920 2000 2100 2170 2200
Amps 1.85 2.26 2.54 2.73 2.87 2.98 3.09 3.25
Lb/h 281 283 275 261 245 231 223 224
Btu/h 24100 23600 22400 20700 18800 16700 14800 13100
Watts 2020 1940 1940 2010 2110 2210 2300 2350
Amps 1.82 2.27 2.60 2.83 2.99 3.12 3.25 3.41
Lb/h 321 322 313 298 281 265 255 255
Btu/h 27000 26400 25200 23400 21300 19000 16700 14700
Watts 2090 2010 2020 2100 2210 2330 2440 2510
Amps 1.76 2.27 2.64 2.91 3.11 3.27 3.42 3.59
Lb/h 371 370 360 343 323 305 292 289
Btu/h 30000 29400 28100 26200 23900 21300 18700 16200
Watts 2150 2080 2100 2180 2310 2440 2570 2660
Amps 1.70 2.26 2.69 3.00 3.23 3.42 3.59 3.77
Lb/h 432 430 416 396 374 352 336 328
Btu/h 33100 32600 31100 29000 26400 23500 20600 17600
Watts 2210 2140 2170 2270 2400 2560 2700 2820
Amps 1.62 2.25 2.72 3.08 3.36 3.57 3.77 3.97
Lb/h 507 502 485 462 435 409 388 377
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 -9.727228E+02 7.293267E+03 -5.859881E+00 -5.382498E+02
C2 -8.993018E+02 4.633751E+01 -6.301957E-02 -4.050902E+00
C3 6.706453E+02 -1.648388E+02 1.982868E-01 2.132429E+01
C4 1.346747E+01 -1.928724E-01 -1.297942E-03 -1.075698E-02
C5 1.734471E+01 -5.393593E-01 1.826647E-03 1.570390E-01
C6 -9.037990E+00 1.464315E+00 -1.762866E-03 -2.205136E-01
C7 -3.528863E-02 -7.413863E-04 3.878209E-06 2.820409E-03
C8 -6.559557E-02 2.122594E-03 6.340576E-06 -1.665836E-03
C9 -6.686357E-02 2.603740E-03 -7.452555E-06 -2.603863E-04
C10 3.122537E-02 -4.229985E-03 5.265369E-06 6.655876E-04
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
