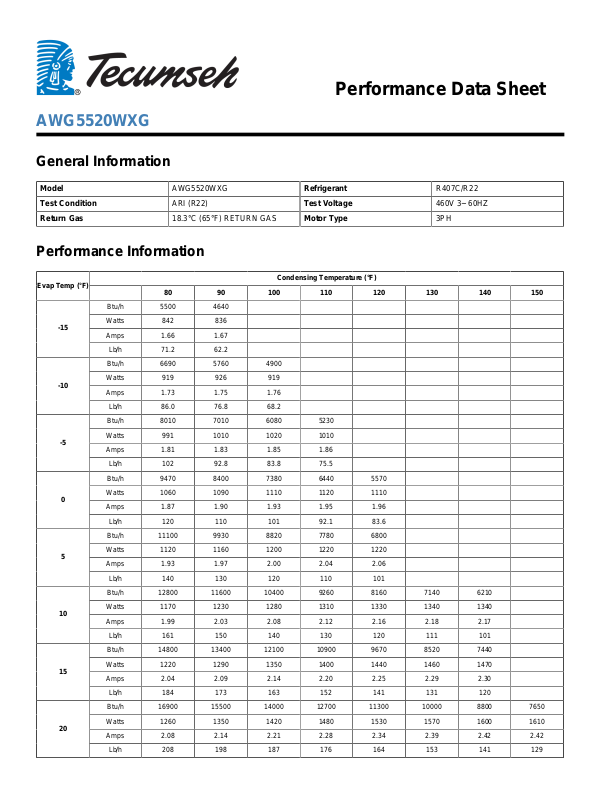

Page 1
Performance Data Sheet
AWG5520WXG
General Information
Model AWG5520WXG Refrigerant R407C/R22 Test Condition ARI (R22) Test Voltage 460V 3~ 60HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140 150
Btu/h 5500 4640 Watts 842 836 Amps 1.66 1.67
Lb/h 71.2 62.2
Btu/h 6690 5760 4900 Watts 919 926 919 Amps 1.73 1.75 1.76
Lb/h 86.0 76.8 68.2
Btu/h 8010 7010 6080 5230 Watts 991 1010 1020 1010 Amps 1.81 1.83 1.85 1.86
Lb/h 102 92.8 83.8 75.5
Btu/h 9470 8400 7380 6440 5570 Watts 1060 1090 1110 1120 1110 Amps 1.87 1.90 1.93 1.95 1.96
Lb/h 120 110 101 92.1 83.6
Btu/h 11100 9930 8820 7780 6800 Watts 1120 1160 1200 1220 1220 Amps 1.93 1.97 2.00 2.04 2.06
Lb/h 140 130 120 110 101
Btu/h 12800 11600 10400 9260 8160 7140 6210 Watts 1170 1230 1280 1310 1330 1340 1340 Amps 1.99 2.03 2.08 2.12 2.16 2.18 2.17
Lb/h 161 150 140 130 120 111 101
Btu/h 14800 13400 12100 10900 9670 8520 7440 Watts 1220 1290 1350 1400 1440 1460 1470 Amps 2.04 2.09 2.14 2.20 2.25 2.29 2.30
Lb/h 184 173 163 152 141 131 120
Btu/h 16900 15500 14000 12700 11300 10000 8800 7650 Watts 1260 1350 1420 1480 1530 1570 1600 1610 Amps 2.08 2.14 2.21 2.28 2.34 2.39 2.42 2.42
Lb/h 208 198 187 176 164 153 141 129
Page 2
Btu/h 19200 17600 16100 14600 13100 11700 10300 8990
25
30
35
40
45
50
55
Watts 1300 1400 1480 1560 1630 1680 1720 1750 Amps 2.12 2.19 2.27 2.35 2.43 2.50 2.55 2.57
Lb/h 235 224 213 201 189 177 164 151
Btu/h 21600 20000 18400 16700 15100 13500 12000 10500 Watts 1330 1440 1540 1630 1710 1780 1840 1880 Amps 2.15 2.23 2.32 2.42 2.52 2.61 2.67 2.72
Lb/h 264 253 241 229 216 203 189 175
Btu/h 24300 22500 20800 19000 17200 15500 13800 12100 Watts 1350 1470 1590 1700 1790 1880 1950 2010 Amps 2.17 2.26 2.37 2.48 2.60 2.71 2.80 2.86
Lb/h 294 283 271 259 245 231 216 201
Btu/h 27200 25300 23400 21500 19600 17700 15800 13900 Watts 1360 1500 1640 1760 1870 1970 2050 2130 Amps 2.19 2.29 2.41 2.54 2.68 2.80 2.92 3.01
Lb/h 327 316 304 290 276 261 245 229
Btu/h 30300 28300 26200 24200 22100 20000 17900 15900 Watts 1370 1520 1670 1810 1930 2050 2150 2250 Amps 2.20 2.31 2.45 2.60 2.75 2.90 3.04 3.15
Lb/h 362 351 338 325 310 294 277 259
Btu/h 33600 31400 29200 27000 24800 22500 20300 18000 Watts 1360 1540 1700 1850 2000 2130 2250 2360 Amps 2.20 2.32 2.48 2.64 2.82 2.99 3.15 3.30
Lb/h 400 388 375 361 345 329 311 292
Btu/h 37100 34800 32500 30100 27700 25300 22800 20400 Watts 1350 1540 1720 1890 2050 2200 2340 2460 Amps 2.19 2.33 2.50 2.69 2.88 3.08 3.27 3.44
Lb/h 440 428 415 400 384 366 347 327
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.857613E+04 3.862305E+02 2.860299E+00 2.054223E+02 C2 3.563386E+02 -6.467459E+00 1.805292E-02 2.850913E+00 C3 -1.057436E+02 1.281214E+01 -3.605791E-02 -1.093702E+00 C4 3.995724E+00 -1.617674E-01 -2.530177E-04 3.128128E-02 C5 1.752863E-01 2.239125E-01 -2.282145E-04 2.453395E-02 C6 -2.609880E-01 -5.257397E-02 4.133818E-04 -2.952485E-04 C7 1.057729E-02 -2.798249E-04 -3.084247E-07 1.024021E-04 C8 -1.260733E-02 5.499948E-04 1.754895E-06 1.349494E-05 C9 -9.979094E-03 1.956510E-04 2.039230E-06 -1.707425E-04
C10 1.990600E-03 -3.307355E-05 -1.460443E-06 7.917706E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
AWG5520WXG
General Information
Model AWG5520WXG Refrigerant R407C/R22 Test Condition ARI (R407C) Test Voltage 460V 3~ 60HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140 150
Btu/h 12800 11000 Watts Amps
Lb/h 119 98.2
Btu/h 11200 9560 8120 Watts Amps 0.08 0.25 0.31
Lb/h 115 96.1 80.6
Btu/h 10100 8680 7430 6150 Watts 199 265 295 284 Amps 0.51 0.68 0.76 0.76
Lb/h 115 97.7 84.1 70.3
Btu/h 9630 8330 7230 6110 4770 Watts 516 583 620 621 579 Amps 0.86 1.03 1.12 1.13 1.08
Lb/h 120 103 90.9 79.0 63.6
Btu/h 9700 8480 7470 6470 5280 Watts 757 826 869 882 857 Amps 1.12 1.30 1.40 1.43 1.40
Lb/h 129 112 101 90.6 77.2
Btu/h 10300 9080 8130 7200 6100 4610 2520 Watts 933 1000 1050 1080 1070 1030 936 Amps 1.32 1.50 1.62 1.66 1.65 1.59 1.49
Lb/h 141 125 114 105 93.2 75.0 46.5
Btu/h 11300 10100 9160 8260 7210 5780 3790 Watts 1060 1130 1180 1220 1230 1210 1150 Amps 1.46 1.65 1.78 1.84 1.85 1.82 1.75
Lb/h 158 141 131 122 112 95.2 68.9
Btu/h 12800 11500 10500 9620 8560 7160 5210 2490 Watts 1140 1210 1270 1320 1350 1350 1320 1240 Amps 1.56 1.76 1.89 1.97 2.01 2.01 1.98 1.92
Lb/h 179 161 151 142 132 117 92.8 55.0
Page 4
Btu/h 14600 13300 12200 11200 10100 8710 6750 4050
25
30
35
40
45
50
55
Watts 1190 1260 1330 1390 1440 1460 1460 1420 Amps 1.62 1.82 1.97 2.08 2.14 2.16 2.17 2.16
Lb/h 204 185 174 165 156 141 118 82.4
Btu/h 16800 15300 14100 13100 11900 10400 8370 5650 Watts 1220 1290 1370 1440 1510 1550 1580 1570 Amps 1.66 1.87 2.04 2.16 2.24 2.30 2.34 2.37
Lb/h 232 212 200 190 181 167 145 111
Btu/h 19300 17700 16300 15100 13700 12100 10000 7240 Watts 1240 1320 1400 1490 1570 1640 1690 1720 Amps 1.68 1.91 2.09 2.23 2.34 2.43 2.50 2.58
Lb/h 265 243 229 219 209 195 174 140
Btu/h 22200 20200 18700 17200 15700 14000 11700 8810 Watts 1260 1340 1430 1530 1630 1720 1800 1870 Amps 1.70 1.94 2.13 2.30 2.43 2.56 2.67 2.79
Lb/h 301 277 261 249 239 225 203 171
Btu/h 25200 23000 21200 19500 17800 15800 13400 10300 Watts 1300 1390 1480 1600 1710 1830 1940 2030 Amps 1.74 1.98 2.19 2.38 2.54 2.70 2.85 3.01
Lb/h 341 314 296 283 271 256 234 202
Btu/h 28500 26000 23800 21800 19900 17600 15000 11700 Watts 1370 1450 1560 1680 1820 1960 2090 2220 Amps 1.79 2.05 2.28 2.48 2.68 2.86 3.06 3.26
Lb/h 385 355 334 318 305 289 267 235
Btu/h 31900 29000 26500 24200 21900 19400 16500 12900 Watts 1470 1560 1670 1810 1960 2120 2290 2450 Amps 1.88 2.15 2.39 2.62 2.84 3.06 3.30 3.54
Lb/h 433 399 375 357 341 324 301 268
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 5.173105E+04 -3.445254E+02 -4.573334E+00 8.839935E+02 C2 -6.268130E+01 9.204028E+01 9.216816E-02 4.013866E+00 C3 -1.126310E+03 6.792412E+00 1.226637E-01 -2.129351E+01 C4 1.804190E+01 -1.536555E+00 -1.676066E-03 1.472509E-01 C5 -1.290926E+00 -8.860179E-01 -8.360433E-04 -7.514177E-02 C6 1.025251E+01 1.337313E-01 -7.949652E-04 1.993581E-01 C7 -4.848949E-02 1.518729E-02 1.461580E-05 -5.301882E-05 C8 -9.094039E-02 1.200680E-04 1.366253E-06 -8.127487E-04 C9 1.971784E-02 5.360858E-03 5.500743E-06 5.190667E-04
C10 -3.439720E-02 -1.051688E-03 1.375862E-06 -6.573700E-04
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
