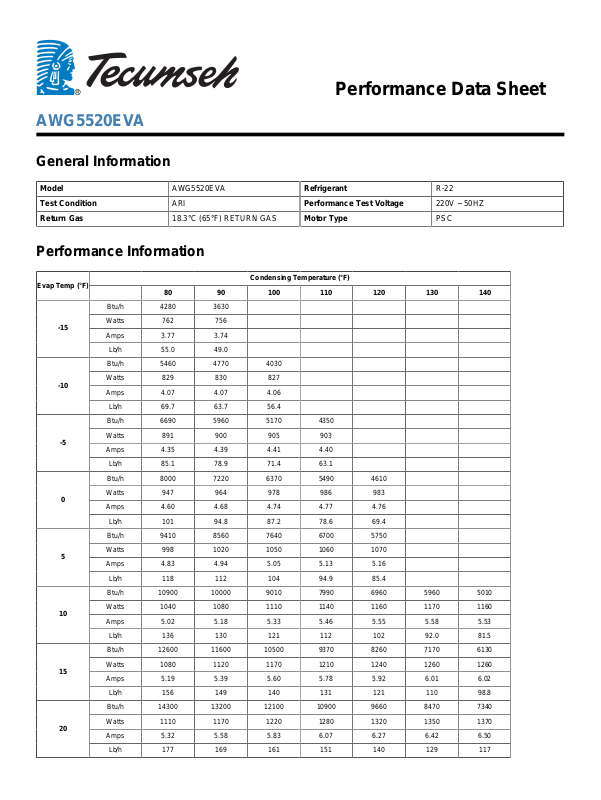

Page 1
Performance Data Sheet
AWG5520EVA
General Information
Model AWG5520EVA Refrigerant R-22
Test Condition ARI Performance Test Voltage 220V ~ 50HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 4280 3630
Watts 762 756
Amps 3.77 3.74
Lb/h 55.0 49.0
Btu/h 5460 4770 4030
Watts 829 830 827
Amps 4.07 4.07 4.06
Lb/h 69.7 63.7 56.4
Btu/h 6690 5960 5170 4350
Watts 891 900 905 903
Amps 4.35 4.39 4.41 4.40
Lb/h 85.1 78.9 71.4 63.1
Btu/h 8000 7220 6370 5490 4610
Watts 947 964 978 986 983
Amps 4.60 4.68 4.74 4.77 4.76
Lb/h 101 94.8 87.2 78.6 69.4
Btu/h 9410 8560 7640 6700 5750
Watts 998 1020 1050 1060 1070
Amps 4.83 4.94 5.05 5.13 5.16
Lb/h 118 112 104 94.9 85.4
Btu/h 10900 10000 9010 7990 6960 5960 5010
Watts 1040 1080 1110 1140 1160 1170 1160
Amps 5.02 5.18 5.33 5.46 5.55 5.58 5.53
Lb/h 136 130 121 112 102 92.0 81.5
Btu/h 12600 11600 10500 9370 8260 7170 6130
Watts 1080 1120 1170 1210 1240 1260 1260
Amps 5.19 5.39 5.60 5.78 5.92 6.01 6.02
Lb/h 156 149 140 131 121 110 98.8
Btu/h 14300 13200 12100 10900 9660 8470 7340
Watts 1110 1170 1220 1280 1320 1350 1370
Amps 5.32 5.58 5.83 6.07 6.27 6.42 6.50
Lb/h 177 169 161 151 140 129 117
Page 2
Btu/h 16300 15100 13800 12500 11200 9890 8640
25
30
35
40
45
50
55
Watts 1130 1200 1270 1340 1390 1440 1470
Amps 5.42 5.73 6.04 6.34 6.60 6.82 6.96
Lb/h 199 192 183 172 161 149 137
Btu/h 18400 17100 15700 14300 12800 11400 10100
Watts 1140 1230 1310 1390 1460 1530 1570
Amps 5.48 5.85 6.23 6.59 6.91 7.19 7.41
Lb/h 224 216 206 195 184 171 159
Btu/h 20700 19300 17800 16200 14700 13100 11600
Watts 1150 1250 1340 1440 1530 1610 1670
Amps 5.51 5.94 6.38 6.80 7.20 7.55 7.84
Lb/h 250 242 232 221 208 195 182
Btu/h 23200 21600 20000 18300 16600 15000 13300
Watts 1150 1260 1370 1480 1590 1680 1760
Amps 5.50 5.99 6.50 6.99 7.46 7.89 8.25
Lb/h 279 270 260 248 235 222 208
Btu/h 25900 24200 22500 20600 18800 17000 15200
Watts 1140 1260 1390 1520 1640 1750 1850
Amps 5.45 6.01 6.58 7.15 7.70 8.20 8.65
Lb/h 310 301 290 277 264 250 235
Btu/h 28900 27000 25100 23200 21200 19200 17300
Watts 1120 1260 1400 1540 1680 1810 1930
Amps 5.35 5.99 6.63 7.28 7.90 8.49 9.02
Lb/h 343 334 322 309 295 280 265
Btu/h 32100 30100 28000 25900 23800 21600 19600
Watts 1090 1240 1400 1570 1720 1870 2010
Amps 5.22 5.92 6.65 7.37 8.08 8.75 9.37
Lb/h 380 369 357 344 329 314 298
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 8.249718E+03 1.181235E+03 5.657232E+00 6.960129E+01
C2 3.488335E+02 1.017810E+00 2.975786E-03 3.270572E+00
C3 1.019737E+02 -1.165184E+01 -5.189526E-02 1.679907E+00
C4 3.280241E+00 -2.393007E-01 -1.086759E-03 2.424780E-02
C5 -7.918361E-01 7.282232E-02 3.592227E-04 4.072472E-03
C6 -1.734406E+00 1.607366E-01 7.117937E-04 -2.017510E-02
C7 2.131856E-02 -4.814542E-04 -2.090120E-06 2.356815E-04
C8 -1.782611E-02 1.474322E-03 6.694073E-06 -6.619607E-05
C9 -2.260787E-03 5.957369E-04 2.514827E-06 -4.496686E-05
C10 5.264821E-03 -6.451858E-04 -2.848938E-06 5.133153E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
AWG5520EVA
General Information
Model AWG5520EVA Refrigerant R-22
Test Condition ARI Performance Test Voltage 265V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 5080 4490
Watts 976 979
Amps 3.77 3.77
Lb/h 65.5 60.3
Btu/h 6270 5580 4870
Watts 1040 1050 1050
Amps 4.02 4.05 4.05
Lb/h 80.4 74.4 67.8
Btu/h 7630 6830 6020 5210
Watts 1110 1130 1140 1140
Amps 4.28 4.33 4.36 4.36
Lb/h 97.2 90.5 83.1 75.2
Btu/h 9160 8250 7330 6410 5510
Watts 1170 1200 1220 1230 1230
Amps 4.52 4.60 4.67 4.70 4.70
Lb/h 116 109 100 91.7 82.6
Btu/h 10900 9850 8810 7770 6750
Watts 1240 1270 1300 1320 1320
Amps 4.75 4.86 4.96 5.04 5.07
Lb/h 137 129 120 110 100
Btu/h 12800 11600 10500 9290 8150 7050 6010
Watts 1300 1340 1370 1400 1420 1430 1420
Amps 4.96 5.11 5.25 5.37 5.44 5.47 5.43
Lb/h 159 151 141 131 120 109 97.9
Btu/h 14800 13600 12300 11000 9710 8480 7310
Watts 1350 1400 1450 1490 1520 1540 1540
Amps 5.16 5.35 5.53 5.68 5.80 5.88 5.89
Lb/h 184 175 165 154 142 130 118
Btu/h 17100 15700 14300 12900 11400 10100 8760
Watts 1400 1460 1520 1570 1610 1650 1660
Amps 5.33 5.56 5.78 5.99 6.15 6.27 6.34
Lb/h 211 201 190 178 166 153 140
Page 4
Btu/h 19500 18000 16500 14900 13300 11800 10400
25
30
35
40
45
50
55
Watts 1440 1510 1580 1650 1700 1750 1780
Amps 5.48 5.75 6.02 6.27 6.49 6.66 6.78
Lb/h 240 229 218 205 192 179 165
Btu/h 22200 20500 18800 17100 15400 13800 12200
Watts 1470 1550 1640 1720 1790 1850 1890
Amps 5.59 5.91 6.23 6.53 6.80 7.03 7.20
Lb/h 270 259 247 234 221 207 192
Btu/h 25000 23200 21400 19500 17700 15900 14100
Watts 1490 1590 1690 1780 1870 1940 2000
Amps 5.67 6.04 6.41 6.77 7.09 7.38 7.61
Lb/h 303 292 279 266 251 236 221
Btu/h 28100 26100 24100 22100 20100 18100 16200
Watts 1500 1620 1730 1840 1940 2030 2110
Amps 5.71 6.14 6.56 6.97 7.36 7.70 8.00
Lb/h 338 326 313 299 284 268 252
Btu/h 31300 29200 27100 24900 22700 20600 18500
Watts 1500 1630 1760 1880 2000 2110 2210
Amps 5.71 6.19 6.67 7.15 7.59 8.00 8.36
Lb/h 375 363 349 334 319 303 286
Btu/h 34700 32500 30200 27900 25500 23200 21000
Watts 1480 1630 1780 1920 2060 2180 2290
Amps 5.66 6.20 6.75 7.28 7.79 8.27 8.69
Lb/h 414 401 387 372 356 339 322
Btu/h 38400 36000 33500 31000 28500 26100 23600
Watts 1450 1620 1780 1940 2100 2240 2380
Amps 5.56 6.17 6.77 7.37 7.95 8.50 8.99
Lb/h 455 442 427 412 395 378 360
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.313727E+04 1.136406E+03 4.775393E+00 1.245161E+02
C2 4.854820E+02 2.577976E+00 9.580911E-03 4.635334E+00
C3 1.322652E+01 -4.394110E+00 -2.815656E-02 6.873508E-01
C4 4.259652E+00 -1.961203E-01 -7.066472E-04 3.406142E-02
C5 -1.807686E+00 9.823320E-02 3.340721E-04 -3.899125E-03
C6 -1.080134E+00 9.717744E-02 4.764417E-04 -1.250548E-02
C7 4.124852E-03 -1.566822E-03 -5.060503E-06 1.302309E-05
C8 -9.039645E-03 1.772911E-03 5.830530E-06 6.712536E-05
C9 -2.576609E-03 3.680017E-04 1.746520E-06 -5.819763E-05
C10 3.670163E-03 -4.528025E-04 -2.058891E-06 3.221128E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
