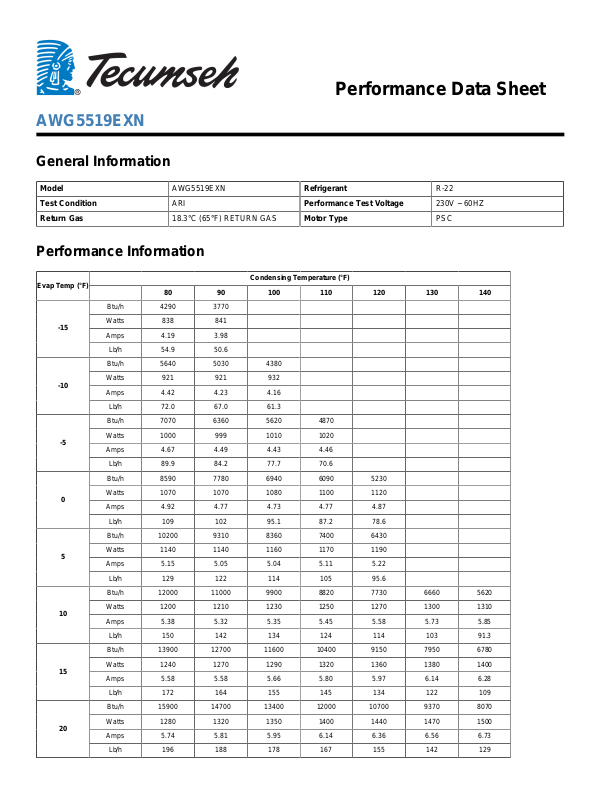

Tecumseh AWG5519EXN Performance Data Sheet
Performance Data Sheet
AWG5519EXN
General Information
Model AWG5519EXN Refrigerant R-22
Test Condition ARI Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 4290 3770
Watts 838 841
Amps 4.19 3.98
Lb/h 54.9 50.6
Btu/h 5640 5030 4380
Watts 921 921 932
Amps 4.42 4.23 4.16
Lb/h 72.0 67.0 61.3
Btu/h 7070 6360 5620 4870
Watts 1000 999 1010 1020
Amps 4.67 4.49 4.43 4.46
Lb/h 89.9 84.2 77.7 70.6
Btu/h 8590 7780 6940 6090 5230
Watts 1070 1070 1080 1100 1120
Amps 4.92 4.77 4.73 4.77 4.87
Lb/h 109 102 95.1 87.2 78.6
Btu/h 10200 9310 8360 7400 6430
Watts 1140 1140 1160 1170 1190
Amps 5.15 5.05 5.04 5.11 5.22
Lb/h 129 122 114 105 95.6
Btu/h 12000 11000 9900 8820 7730 6660 5620
Watts 1200 1210 1230 1250 1270 1300 1310
Amps 5.38 5.32 5.35 5.45 5.58 5.73 5.85
Lb/h 150 142 134 124 114 103 91.3
Btu/h 13900 12700 11600 10400 9150 7950 6780
Watts 1240 1270 1290 1320 1360 1380 1400
Amps 5.58 5.58 5.66 5.80 5.97 6.14 6.28
Lb/h 172 164 155 145 134 122 109
Btu/h 15900 14700 13400 12000 10700 9370 8070
Watts 1280 1320 1350 1400 1440 1470 1500
Amps 5.74 5.81 5.95 6.14 6.36 6.56 6.73
Lb/h 196 188 178 167 155 142 129
Btu/h 18100 16700 15300 13800 12400 10900 9480
25
30
35
40
45
50
55
Watts 1310 1360 1410 1460 1520 1560 1600
Amps 5.86 6.01 6.22 6.48 6.74 6.99 7.20
Lb/h 222 213 202 191 178 165 151
Btu/h 20500 19000 17400 15800 14200 12600 11000
Watts 1320 1390 1460 1530 1590 1660 1710
Amps 5.93 6.17 6.46 6.79 7.11 7.42 7.67
Lb/h 250 240 229 217 204 189 174
Btu/h 23100 21400 19700 18000 16200 14500 12800
Watts 1320 1400 1490 1580 1670 1750 1810
Amps 5.94 6.27 6.66 7.06 7.47 7.84 8.14
Lb/h 279 269 257 245 231 216 200
Btu/h 25900 24100 22200 20400 18500 16600 14700
Watts 1300 1410 1520 1630 1740 1830 1920
Amps 5.88 6.32 6.80 7.30 7.79 8.23 8.61
Lb/h 311 300 288 275 260 245 228
Btu/h 28900 26900 24900 22900 20900 18800 16800
Watts 1260 1400 1540 1670 1800 1920 2030
Amps 5.74 6.30 6.89 7.49 8.07 8.60 9.05
Lb/h 345 334 322 308 293 276 259
Btu/h 32100 30000 27900 25700 23500 21300 19000
Watts 1210 1380 1540 1700 1860 2000 2130
Amps 5.51 6.20 6.91 7.62 8.31 8.93 9.47
Lb/h 382 371 357 343 327 310 292
Btu/h 35600 33300 31000 28700 26300 23900 21600
Watts 1140 1340 1530 1720 1900 2080 2230
Amps 5.19 6.02 6.86 7.69 8.48 9.21 9.85
Lb/h 422 409 396 381 365 347 328
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.161031E+04 1.802641E+03 1.329768E+01 1.209966E+02
C2 4.595520E+02 2.180118E+00 -6.490462E-02 4.461371E+00
C3 2.158079E+01 -2.122512E+01 -2.182462E-01 3.590593E-01
C4 3.018526E+00 -5.723402E-01 -1.721675E-03 1.793633E-02
C5 -1.609786E+00 2.233651E-01 2.079272E-03 -2.607037E-03
C6 -9.801182E-01 1.955141E-01 1.788240E-03 -7.373182E-03
C7 1.871594E-02 -1.601671E-03 -1.175289E-05 2.105740E-04
C8 -1.058094E-02 5.373390E-03 1.963396E-05 4.602316E-05
C9 -2.480905E-03 -9.585730E-04 -8.208430E-06 -6.086490E-05
C10 2.976674E-03 -5.521003E-04 -4.623907E-06 1.196838E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
