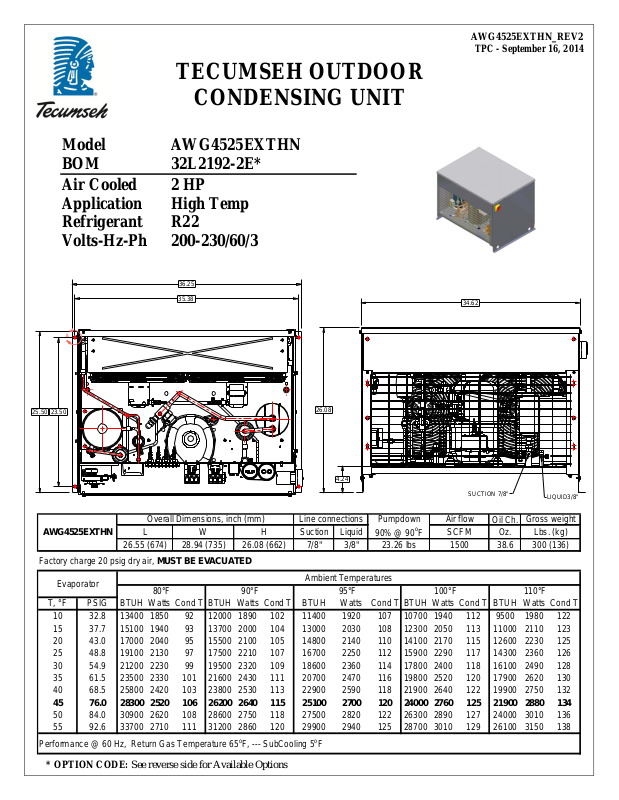

Tecumseh AWG4525EXTHN Performance Data Sheet

35.38

36.25

23.5025.50

26.08

4.24

34.62

SUCTION 7/8"

LIQUID3/8"

Oil Ch.

Suction Liquid Oz.

7/8" 3/8" 38.6

Factory charge 20 psig dry air, MUST BE EVACUATED

Ambient Temperatures

T, °F PSIG BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T

10 32.8 13400 1850 92 12000 1890 102 11400 1920 107 10700 1940 112 9500 1980 122
15 37.7 15100 1940 93 13700 2000 104 13000 2030 108 12300 2050 113 11000 2110 123
20 43.0 17000 2040 95 15500 2100 105 14800 2140 110 14100 2170 115 12600 2230 125
25 48.8 19100 2130 97 17500 2210 107 16700 2250 112 15900 2290 117 14300 2360 126
30 54.9 21200 2230 99 19500 2320 109 18600 2360 114 17800 2400 118 16100 2490 128
35 61.5 23500 2330 101 21600 2430 111 20700 2470 116 19800 2520 120 17900 2620 130
40 68.5 25800 2420 103 23800 2530 113 22900 2590 118 21900 2640 122 19900 2750 132

45 76.0 28300 2520 106 26200 2640 115 25100 2700 120 24000 2760 125 21900 2880 134

50 84.0 30900 2620 108 28600 2750 118 27500 2820 122 26300 2890 127 24000 3010 136

55 92.6 33700 2710 111 31200 2860 120 29900 2940 125 28700 3010 129 26100 3150 138

1500

LWH

90% @ 90oF

Performance @ 60 Hz, Return Gas Temperature 65oF, --- SubCooling 5oF

Evaporator

Gross weight

Lbs. (kg)

300 (136)

100°F

SCFM

26.55 (674)

28.94 (735)

26.08 (662)

110°F

AWG4525EXTHN

80°F

90°F

95°F

Overall Dimensions, inch (mm)

Line connections

Pumpdown

Air flow

23.26 lbs

TECUMSEH OUTDOOR

CONDENSING UNIT

Model AWG4525EXTHN
BOM 32L2192-2E*

Air Cooled 2 HP
Application High Temp
Refrigerant R22
Volts-Hz-Ph 200-230/60/3

AWG4525EXTHN_REV2

TPC - September 16, 2014

* OPTION CODE: See reverse side for Available Options

Unit BOM 32L2192-2E Fan Motor 810F050C20

Unit MODEL AWG4525EXTHN Replacement Fan Motor 50W230 32Lxxxx-2ER(F)ATnD

Fan Motor Qty 2 R Heated/Insulated Receiver
Refrigeration Range 10°F to 55°F Fan Motor RLA 0.7 F Fixed Fan Control
Design Pressure Low / High 150 / 450 Fan Blade 51568-1 A Adjustable Fan Control
Volts - HZ - Ph 200-230/60/3 Fan Guard 70831 T1 Air Defrost Timer
Voltage Range 180-254 Shroud 70648-2 T2 Electrical Defrost Timer & Defrost
Min. Circuit Ampacity 10.74 Heater Contactor
Max. Fuse Size 20 High Pressure Switch 84095-1L D Disconnect Switch (nonfused)

Low Pressure Control 84026-2
Compressor MODEL AWG5524EXT Dual Pressure Conrol
Compressor BOM AW705RT-120-A2
Compressor LRA 50 Head Master Valve 70083-1 Solenoid Valve (supplied loose) KSVC-264

Compressor RLA 7.31 Check Valve 56626 Hail Louver Assy LLPG-201

Process Valve 31583-1

OverLoad Internal Discharge Valve (Base) 56618
Replacement Kit - O/L Liquid Valve (Base) 56500-K06 Receiver Heater (R option) 92124-2
Relay Liquid Valve (Receiver) attached Receiver Thermostat (R option) 84102-2
Replacement Kit - Relay Suction Valve (Base) 56500-K14 Fixed Fan Control (F option) 84132-01
Run Capacitor Suction Valve (Rotolock) Adjustable Fan Control (A option) 14955874
Run Capacitor Rating
Start Capacitor Condenser 50858-1 Defrost Timer (T1 or T2 option) 84110
Start Capacitor Rating Receiver 51099-2L Defrost Heater Contactor and 91014B and
Contactor 91014B Accumulator TK00042000 Auxiliary Switch (T2 opt.) 91014-AUX

Liquid Filter 70139
Unit Drawing DGU1918-L303 Sight Glass 70084-S Disconnect (D option)
Wiring Diagram WD23-2XT2 Suction Filter 70822-5S
Wiring Diagram (A or F opt.) WD23-2AT2 CrankCase Heater 91022-1

AVAILABLE ACCESSORIES

REPLACEMENT PARTS

Parts/Specifications

STANDARD

AVAILABLE OPTIONS

AWG4525EXTHN_REV2

TPC - September 16, 2014
