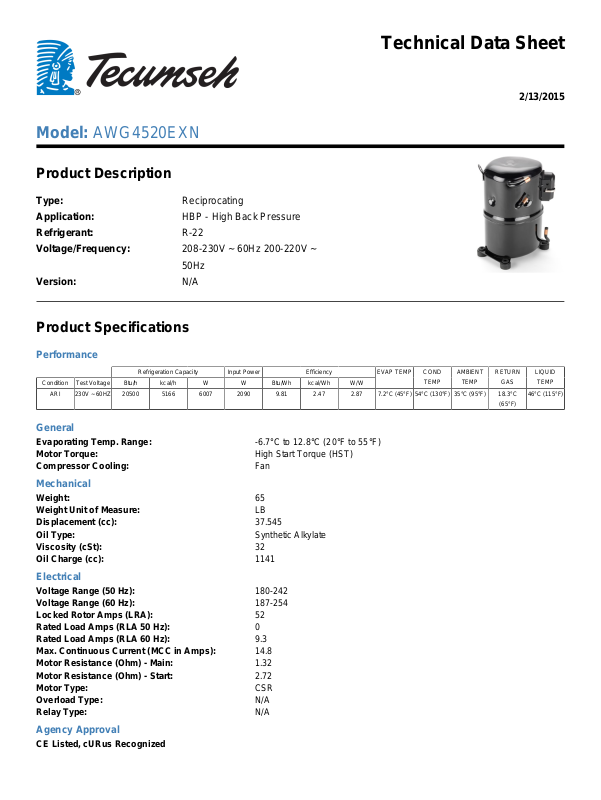

Tecumseh AWG4520EXN Technical Data Sheet

Model: AWG4520EXN

Product Description

Type: Reciprocating
Application: HBP - High Back Pressure
Refrigerant: R-22
Voltage/Frequency: 208-230V ~ 60Hz 200-220V ~

50Hz

Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 230V ~ 60HZ 20500 5166 6007 2090 9.81 2.47 2.87 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 18.3°C

EVAP TEMP COND

TEMP

AMBIENT

TEMP

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 65
Weight Unit of Measure: LB
Displacement (cc): 37.545
Oil Type: Synthetic Alkylate
Viscosity (cSt): 32
Oil Charge (cc): 1141

Electrical

Voltage Range (50 Hz): 180-242
Voltage Range (60 Hz): 187-254
Locked Rotor Amps (LRA): 52
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 9.3
Max. Continuous Current (MCC in Amps): 14.8
Motor Resistance (Ohm) - Main: 1.32
Motor Resistance (Ohm) - Start: 2.72
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A

RETURN

GAS

(65°F)

LIQUID

TEMP

46°C (115°F)

Agency Approval

CE Listed, cURus Recognized
