Tecumseh AWA9518ZXNLN User Manual
AWA9518ZXNLN_Rel
AWA9518ZXNLN
Overall Dimensions, inch (mm)
Line connections
Pump down
Air flow
Oil Ch.
Gross weight
L W H
Suction
Liquid
90% @ 90oF
SCFM
Oz.
Lbs. (kg)
26.43 (671)
36.25 (921)
26.08 (662)
7/8"
3/8"
19.80 lbs.
1750
38.6
320 (145)
Factory charge 20 psig dry air, MUST BE EVACUATED
Evaporator
Ambient Temperatures
80°F
90°F
95°F
100°F
110°F
T, °F
PSIG
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
-10
23.9
10200
2020
90
8700
1980
100
8000
1950
105
7200
1930
109
5900
1870
119
-5
27.5
11600
2140
92
10000
2120
101
9200
2110
106
8500
2090
111
7000
2050
120 0 32.1
13100
2270
93
11400
2270
103
10600
2260
107
9800
2250
112
8200
2230
121 5 37.0
14800
2390
95
13000
2410
104
12100
2410
109
11200
2410
113
9600
2400
123
10
42.4
16600
2520
96
14700
2560
106
13700
2560
110
12800
2570
115
11000
2570
124
15
48.2
18500
2650
98
16500
2700
107
15500
2710
112
14400
2720
116
12500
2750
126
20
54.5
20600
2780
100
18400
2840
109
17300
2860
114
16200
2880
118
14100
2920
127
25
61.2
22900
2910
102
20500
2990
111
19300
3020
115
18100
3040
120
15800
3090
129
30
68.4
25300
3030
104
22700
3130
113
21400
3170
117
20100
3200
122
17600
3260
130
35
76.1
27800
3160
106
25000
3270
115
23600
3320
119
22200
3360
124
19500
3430
132
40
84.4
30400
3300
109
27400
3420
117
25900
3470
121
24500
3510
126
21500
3600
134
45
93.2
33200
3430
111
30000
3560
120
28400
3620
124
26800
3670
128
23600
3770
136
Performance @ 60 Hz, Return gas 40oF below 20oF Evaporator and 65oF above 20oF evaporator, Sub Cooling 5oF
TPC January 26, 2016

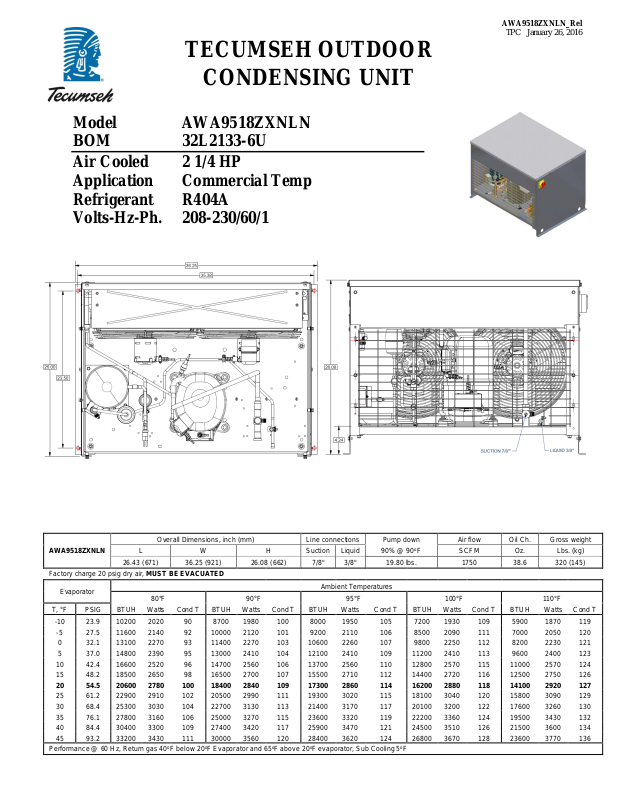

TECUMSEH OUTDOOR
CONDENSING UNIT
Model AWA9518ZXNLN
BOM 32L2133-6U
Air Cooled 2 1/4 HP
Application Commercial Temp
Refrigerant R404A
Volts-Hz-Ph. 208-230/60/1
AWA9518ZXNLN_Rel
Parts/Specifications
Unit BOM
32L2133-6U
Fan Motor
810F050C20
Adjustable Fan Control
14955874
Unit MODEL
AWA9518ZXNLN
Replacement Fan Motor
50W230
Fixed Fan Control
----
Fan Motor Qty
2
Refrigeration Range
-10°F to 45°F
Fan Motor RLA
0.7
Defrost Timer
LTCG-T1
Design Pressure Low / High
181 / 450
Fan Blade
51568-1
Electric Defrost Timer
----
Volts - HZ - Ph
208-230V ~ 60HZ
Fan Guard
70831
Voltage Range
187 - 253
Receiver Heater
-----
Min. Circuit Ampacity
20.04
Shroud
70648-2
Receiver Heater Thermostat
-----
Max. Fuse Size
35
Condenser
50858-1
C/Case Heater
91022-1
Compressor MODEL
AWA9514ZXN
Receiver
51099-2L
Unit Drawing
DGU1918-L021
Compressor BOM
AW617ET-099-P2
Accumulator
----
Wiring Diagram
WD21-205
Compressor LRA
90
Liquid Filter
70139
Compressor RLA
14.74
Sight Glass
70084-S
Suction Filter
----
OverLoad
Internal
Replacement Kit - O/L
----
High Pressure Switch
84095-2L
Relay
8200RVAL94
Low Pressure Control
84026-2
Replacement Kit - Relay
K71-19
Low Pressure Switch
----
Run Capacitor
85PR370F21
Head Master Valve
70083
Replacement Kit Run Cap.
K150-18
Check Valve
----
Loose Optional Items
Start Capacitor
85PS330D17
Liquid Valve
On the Receiver
Disconnect Switch
LDSG-311
Replacement Kit Start Cap
K146-44
Suction Valve (Base)
56500-K14
Liquid Solenoid
KSVC-285
Contactor
91017H
Hail Louver
LLPG-201
TPC January 26, 2016
