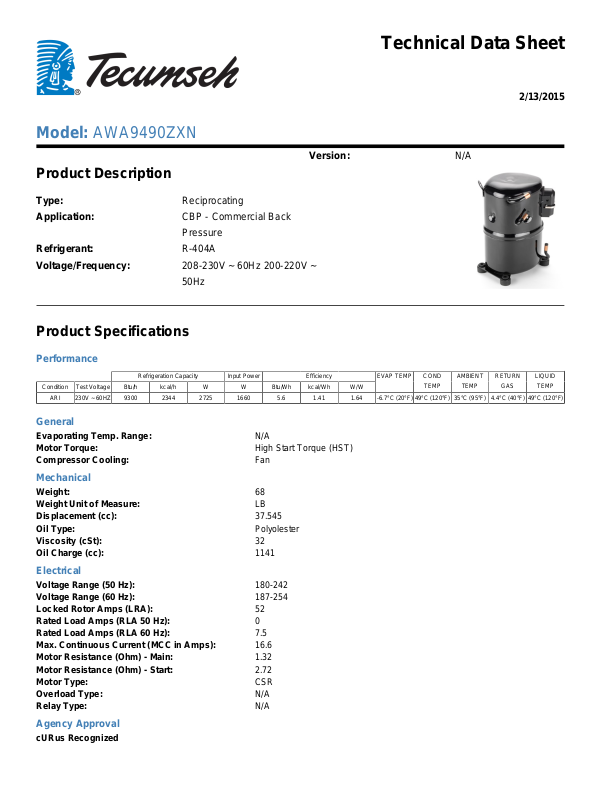

Tecumseh AWA9490ZXN Technical Data Sheet

Model: AWA9490ZXN

Product Description

Type: Reciprocating
Application: CBP - Commercial Back

Pressure

Refrigerant: R-404A
Voltage/Frequency: 208-230V ~ 60Hz 200-220V ~

50Hz

Product Specifications

Technical Data Sheet

2/13/2015

Version: N/A

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 230V ~ 60HZ 9300 2344 2725 1660 5.6 1.41 1.64 -6.7°C (20°F) 49°C (120°F) 35°C (95°F) 4.4°C (40°F) 49°C (120°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

General

Evaporating Temp. Range: N/A
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 68
Weight Unit of Measure: LB
Displacement (cc): 37.545
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 1141

Electrical

Voltage Range (50 Hz): 180-242
Voltage Range (60 Hz): 187-254
Locked Rotor Amps (LRA): 52
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 7.5
Max. Continuous Current (MCC in Amps): 16.6
Motor Resistance (Ohm) - Main: 1.32
Motor Resistance (Ohm) - Start: 2.72
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A

LIQUID

TEMP

Agency Approval

cURus Recognized
