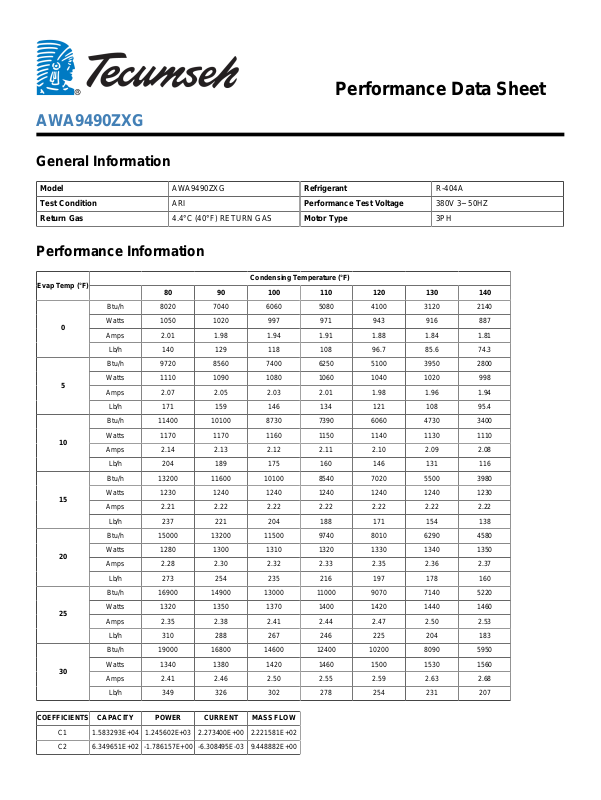

Performance Data Sheet
AWA9490ZXG
General Information
Model AWA9490ZXG Refrigerant R-404A
Test Condition ARI Performance Test Voltage 380V 3~ 50HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 8020 7040 6060 5080 4100 3120 2140
Watts 1050 1020 997 971 943 916 887
Amps 2.01 1.98 1.94 1.91 1.88 1.84 1.81
Lb/h 140 129 118 108 96.7 85.6 74.3
Btu/h 9720 8560 7400 6250 5100 3950 2800
Watts 1110 1090 1080 1060 1040 1020 998
Amps 2.07 2.05 2.03 2.01 1.98 1.96 1.94
Lb/h 171 159 146 134 121 108 95.4
Btu/h 11400 10100 8730 7390 6060 4730 3400
Watts 1170 1170 1160 1150 1140 1130 1110
Amps 2.14 2.13 2.12 2.11 2.10 2.09 2.08
Lb/h 204 189 175 160 146 131 116
Btu/h 13200 11600 10100 8540 7020 5500 3980
Watts 1230 1240 1240 1240 1240 1240 1230
Amps 2.21 2.22 2.22 2.22 2.22 2.22 2.22
Lb/h 237 221 204 188 171 154 138
Btu/h 15000 13200 11500 9740 8010 6290 4580
Watts 1280 1300 1310 1320 1330 1340 1350
Amps 2.28 2.30 2.32 2.33 2.35 2.36 2.37
Lb/h 273 254 235 216 197 178 160
Btu/h 16900 14900 13000 11000 9070 7140 5220
Watts 1320 1350 1370 1400 1420 1440 1460
Amps 2.35 2.38 2.41 2.44 2.47 2.50 2.53
Lb/h 310 288 267 246 225 204 183
Btu/h 19000 16800 14600 12400 10200 8090 5950
Watts 1340 1380 1420 1460 1500 1530 1560
Amps 2.41 2.46 2.50 2.55 2.59 2.63 2.68
Lb/h 349 326 302 278 254 231 207
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.583293E+04 1.245602E+03 2.273400E+00 2.221581E+02
C2 6.349651E+02 -1.786157E+00 -6.308495E-03 9.448882E+00
Page 2
C3 -9.719323E+01 -2.564496E+00 -3.355731E-03 -1.035834E+00
C4 9.756513E-01 -9.484443E-02 3.184131E-05 2.700986E-02
C5 -3.844362E+00 1.935391E-01 2.445479E-04 -4.188544E-02
C6 -7.105124E-03 2.693664E-03 5.983669E-07 2.928367E-04
C7 4.624489E-02 -5.177979E-03 -4.459060E-06 6.066488E-04
C8 -1.983929E-02 2.057506E-03 1.855440E-06 -2.863975E-04
C9 2.177546E-03 -2.009933E-04 -1.970201E-07 3.551141E-05
C10 1.971189E-05 -1.920233E-05 -1.549133E-09 -3.134394E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 3
Performance Data Sheet
AWA9490ZXG
General Information
Model AWA9490ZXG Refrigerant R-404A
Test Condition ARI Performance Test Voltage 460V 3~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 9460 8320 7180 6040 4910 3770 2630
Watts 1290 1260 1240 1210 1180 1160 1130
Amps 2.03 2.00 1.97 1.94 1.91 1.88 1.84
Lb/h 172 158 144 130 116 102 88.2
Btu/h 11100 9830 8520 7210 5900 4600 3300
Watts 1360 1340 1320 1300 1280 1260 1230
Amps 2.10 2.08 2.06 2.04 2.02 2.00 1.97
Lb/h 199 185 170 155 140 125 110
Btu/h 12900 11400 9920 8430 6950 5470 3990
Watts 1430 1430 1420 1400 1390 1380 1360
Amps 2.17 2.16 2.16 2.15 2.14 2.13 2.12
Lb/h 230 215 199 183 167 152 136
Btu/h 14800 13100 11400 9740 8070 6410 4750
Watts 1510 1510 1510 1510 1510 1510 1500
Amps 2.24 2.25 2.26 2.26 2.27 2.27 2.27
Lb/h 265 248 231 215 198 181 164
Btu/h 16800 14900 13000 11200 9300 7440 5600
Watts 1580 1590 1610 1620 1630 1640 1640
Amps 2.30 2.33 2.36 2.38 2.40 2.42 2.44
Lb/h 302 285 267 250 232 214 196
Btu/h 19000 16900 14800 12700 10700 8610 6570
Watts 1630 1660 1690 1720 1740 1760 1780
Amps 2.36 2.40 2.44 2.49 2.52 2.56 2.59
Lb/h 343 325 306 288 269 250 232
Btu/h 21400 19100 16800 14500 12200 9940 7690
Watts 1660 1710 1750 1800 1840 1870 1910
Amps 2.39 2.46 2.52 2.58 2.64 2.69 2.74
Lb/h 387 368 349 329 310 290 270
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.856405E+04 1.485435E+03 2.266948E+00 2.805144E+02
C2 6.160206E+02 -2.378206E-01 -8.348619E-03 6.717322E+00
Page 4
C3 -1.132797E+02 -2.610897E+00 -3.034350E-03 -1.363962E+00
C4 2.387446E+00 -3.220221E-02 3.635204E-06 6.845047E-02
C5 -3.717364E+00 1.947606E-01 2.729698E-04 -1.952736E-02
C6 -1.005936E-02 3.531193E-03 3.391938E-06 1.851557E-04
C7 4.049813E-02 -1.046935E-02 -8.121762E-06 -4.543079E-05
C8 -1.696838E-02 4.216550E-03 3.140419E-06 1.684698E-06
C9 1.844254E-03 -4.247799E-04 -2.925399E-07 3.590334E-06
C10 4.629714E-05 -2.260851E-05 -2.476466E-08 -1.833072E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 5
Performance Data Sheet
AWA9490ZXG
General Information
Model AWA9490ZXG Refrigerant R-404A
Test Condition ARI Performance Test Voltage 460V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 18400 16400 14400 12400 10400 8480 6570
Watts 1580 1590 1600 1610 1620 1630 1640
Amps 2.31 2.33 2.35 2.37 2.40 2.42 2.44
Lb/h 304 284 265 245 227 208 191
Btu/h 20700 18500 16300 14100 11900 9720 7550
Watts 1640 1660 1680 1710 1730 1760 1780
Amps 2.34 2.38 2.42 2.45 2.49 2.53 2.56
Lb/h 338 319 300 280 260 241 222
Btu/h 23000 20700 18300 16000 13600 11200 8760
Watts 1680 1720 1750 1790 1830 1870 1910
Amps 2.37 2.42 2.48 2.53 2.58 2.63 2.69
Lb/h 375 357 338 319 300 280 260
Btu/h 25300 22900 20400 17900 15300 12800 10200
Watts 1720 1760 1810 1860 1920 1970 2020
Amps 2.39 2.47 2.54 2.61 2.67 2.74 2.81
Lb/h 413 397 380 362 343 324 304
Btu/h 27600 25100 22500 19900 17200 14500 11700
Watts 1740 1800 1870 1930 1990 2060 2120
Amps 2.41 2.50 2.59 2.68 2.76 2.84 2.93
Lb/h 451 438 424 408 390 372 352
Btu/h 29900 27300 24600 21900 19100 16300 13300
Watts 1770 1840 1910 1980 2060 2140 2210
Amps 2.41 2.52 2.63 2.74 2.84 2.94 3.04
Lb/h 488 479 468 455 439 423 405
Btu/h 31900 29400 26700 23900 21000 18100 15000
Watts 1780 1860 1950 2030 2120 2210 2300
Amps 2.41 2.54 2.67 2.79 2.92 3.04 3.15
Lb/h 523 519 511 501 489 475 459
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.080061E+04 1.613779E+03 2.462161E+00 3.758358E+02
C2 6.503375E+02 -1.875654E+00 -1.506959E-02 2.919809E+00
Page 6
C3 -1.355507E+02 -4.186451E+00 -4.227397E-03 -2.266244E+00
C4 1.077110E+00 -1.813972E-01 -9.684211E-05 5.054564E-02
C5 -3.157213E+00 2.598288E-01 3.248552E-04 1.797167E-02
C6 4.023539E-02 -6.137879E-04 1.717818E-06 1.189463E-03
C7 -6.240988E-02 1.298897E-03 -2.197944E-06 -1.602610E-03
C8 5.940687E-02 -1.246469E-03 2.079329E-06 1.515289E-03
C9 -1.735505E-02 3.670533E-04 -6.036523E-07 -4.398181E-04
C10 1.214644E-03 -2.778250E-05 3.944008E-08 2.922848E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Page 7
Performance Data Sheet
AWA9490ZXG
General Information
Model AWA9490ZXG Refrigerant R-404A
Test Condition ARI Performance Test Voltage 380V 3~ 50HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 14900 13400 11900 10300 8730 7100 5420
Watts 1180 1220 1260 1300 1330 1360 1390
Amps 2.23 2.26 2.29 2.32 2.35 2.38 2.41
Lb/h 243 230 217 204 191 176 161
Btu/h 17200 15400 13700 12000 10200 8500 6710
Watts 1220 1270 1310 1360 1400 1450 1490
Amps 2.27 2.32 2.36 2.41 2.46 2.50 2.54
Lb/h 279 265 252 238 225 211 196
Btu/h 19500 17500 15600 13600 11700 9790 7860
Watts 1270 1320 1370 1420 1470 1530 1580
Amps 2.32 2.38 2.44 2.50 2.56 2.62 2.68
Lb/h 319 303 288 274 259 245 230
Btu/h 22100 19800 17500 15300 13200 11000 8940
Watts 1310 1370 1420 1480 1540 1600 1660
Amps 2.37 2.45 2.52 2.60 2.68 2.75 2.83
Lb/h 362 344 327 311 295 280 265
Btu/h 24900 22200 19600 17100 14700 12300 10000
Watts 1370 1430 1480 1540 1610 1670 1740
Amps 2.44 2.53 2.62 2.71 2.80 2.89 2.98
Lb/h 410 390 370 352 334 318 301
Btu/h 28000 24900 22000 19200 16400 13700 11100
Watts 1440 1500 1550 1610 1680 1750 1820
Amps 2.51 2.62 2.72 2.82 2.93 3.03 3.13
Lb/h 464 440 418 397 377 358 340
Btu/h 31500 28000 24600 21400 18300 15300 12400
Watts 1530 1580 1630 1690 1760 1830 1900
Amps 2.60 2.71 2.83 2.95 3.06 3.18 3.30
Lb/h 525 497 471 447 424 402 382
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.158994E+04 9.157106E+02 2.316618E+00 1.861947E+02
C2 7.458923E+02 -3.056840E+00 -2.172868E-02 6.851833E+00
Page 8
C3 -5.946899E+01 1.573862E+00 -2.197752E-03 -7.528411E-01
C4 2.063381E+00 5.611563E-02 1.679717E-04 5.962365E-02
C5 -4.740981E+00 1.123541E-01 2.796102E-04 -2.697109E-02
C6 -4.157888E-02 -9.610687E-04 1.797783E-06 -5.248002E-04
C7 9.253708E-02 4.185153E-03 1.007526E-06 1.271548E-03
C8 -8.514681E-02 -3.940336E-03 -1.134412E-06 -1.176411E-03
C9 2.446719E-02 1.160787E-03 3.917748E-07 3.400614E-04
C10 -1.845548E-03 -9.827887E-05 -5.527992E-08 -2.626014E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
