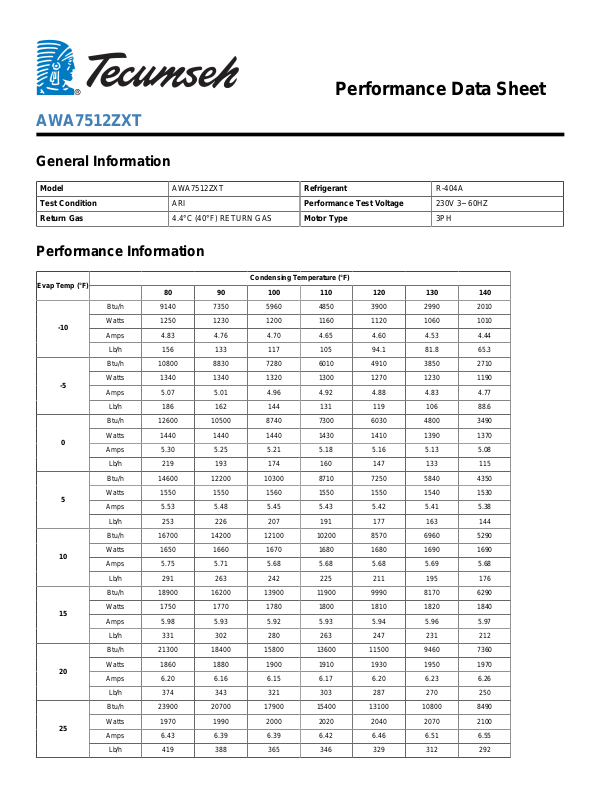

Tecumseh AWA7512ZXT Performance Data Sheet

Performance Data Sheet

AWA7512ZXT

General Information

Model AWA7512ZXT Refrigerant R-404A Test Condition ARI Performance Test Voltage 230V 3~ 60HZ Return Gas 4.4°C (40°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 9140 7350 5960 4850 3900 2990 2010 Watts 1250 1230 1200 1160 1120 1060 1010 Amps 4.83 4.76 4.70 4.65 4.60 4.53 4.44

Lb/h 156 133 117 105 94.1 81.8 65.3

Btu/h 10800 8830 7280 6010 4910 3850 2710 Watts 1340 1340 1320 1300 1270 1230 1190 Amps 5.07 5.01 4.96 4.92 4.88 4.83 4.77

Lb/h 186 162 144 131 119 106 88.6

Btu/h 12600 10500 8740 7300 6030 4800 3490 Watts 1440 1440 1440 1430 1410 1390 1370 Amps 5.30 5.25 5.21 5.18 5.16 5.13 5.08

Lb/h 219 193 174 160 147 133 115

Btu/h 14600 12200 10300 8710 7250 5840 4350 Watts 1550 1550 1560 1550 1550 1540 1530 Amps 5.53 5.48 5.45 5.43 5.42 5.41 5.38

Lb/h 253 226 207 191 177 163 144

Btu/h 16700 14200 12100 10200 8570 6960 5290 Watts 1650 1660 1670 1680 1680 1690 1690 Amps 5.75 5.71 5.68 5.68 5.68 5.69 5.68

Lb/h 291 263 242 225 211 195 176

Btu/h 18900 16200 13900 11900 9990 8170 6290 Watts 1750 1770 1780 1800 1810 1820 1840 Amps 5.98 5.93 5.92 5.93 5.94 5.96 5.97

Lb/h 331 302 280 263 247 231 212

Btu/h 21300 18400 15800 13600 11500 9460 7360 Watts 1860 1880 1900 1910 1930 1950 1970 Amps 6.20 6.16 6.15 6.17 6.20 6.23 6.26

Lb/h 374 343 321 303 287 270 250

Btu/h 23900 20700 17900 15400 13100 10800 8490 Watts 1970 1990 2000 2020 2040 2070 2100 Amps 6.43 6.39 6.39 6.42 6.46 6.51 6.55

Lb/h 419 388 365 346 329 312 292

Btu/h 26600 23100 20100 17400 14800 12300 9670

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 5.805398E+04 1.063260E+03 7.665869E+00 1.006237E+03 C2 6.763412E+02 1.828998E+01 5.432718E-02 9.652988E+00 C3 -1.026057E+03 1.018065E+01 -6.158511E-02 -1.960325E+01 C4 5.268590E+00 3.555128E-01 -2.381146E-05 3.955201E-02 C5 -3.844700E+00 -9.734540E-02 -3.203474E-04 -4.680727E-02 C6 7.289850E+00 -8.193344E-02 5.248457E-04 1.585083E-01 C7 -5.893793E-03 -5.496739E-04 3.334125E-06 9.622402E-05 C8 -2.645500E-02 -3.861087E-03 -1.143308E-06 1.408252E-04 C9 1.333580E-03 1.512122E-03 2.652020E-06 1.245308E-04

C10 -1.960361E-02 1.763693E-04 -1.549303E-06 -4.568894E-04

Watts 2080 2090 2110 2130 2150 2180 2210 Amps 6.66 6.63 6.64 6.67 6.72 6.79 6.85

Lb/h 468 436 412 392 375 358 337

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
