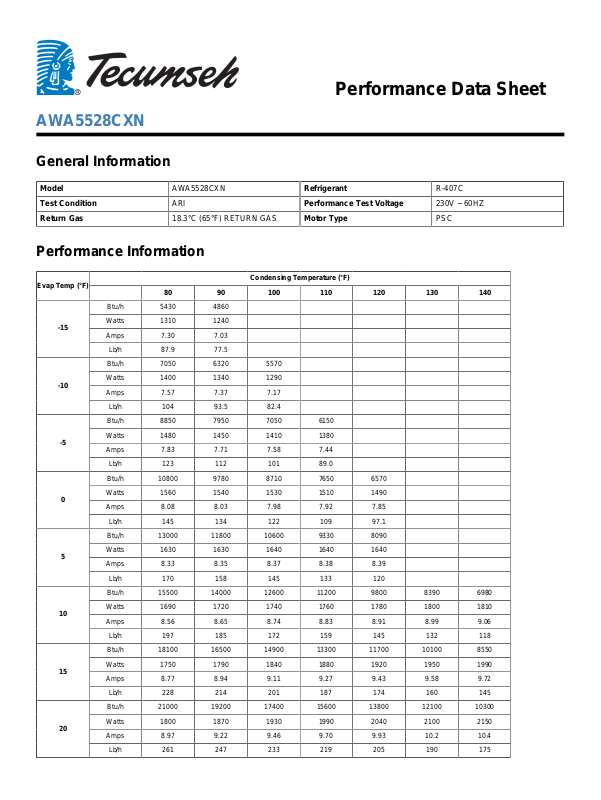

Tecumseh AWA5528CXN Performance Data Sheet
Performance Data Sheet
AWA5528CXN
General Information
Model AWA5528CXN Refrigerant R-407C
Test Condition ARI Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 5430 4860
Watts 1310 1240
Amps 7.30 7.03
Lb/h 87.9 77.5
Btu/h 7050 6320 5570
Watts 1400 1340 1290
Amps 7.57 7.37 7.17
Lb/h 104 93.5 82.4
Btu/h 8850 7950 7050 6150
Watts 1480 1450 1410 1380
Amps 7.83 7.71 7.58 7.44
Lb/h 123 112 101 89.0
Btu/h 10800 9780 8710 7650 6570
Watts 1560 1540 1530 1510 1490
Amps 8.08 8.03 7.98 7.92 7.85
Lb/h 145 134 122 109 97.1
Btu/h 13000 11800 10600 9330 8090
Watts 1630 1630 1640 1640 1640
Amps 8.33 8.35 8.37 8.38 8.39
Lb/h 170 158 145 133 120
Btu/h 15500 14000 12600 11200 9800 8390 6980
Watts 1690 1720 1740 1760 1780 1800 1810
Amps 8.56 8.65 8.74 8.83 8.91 8.99 9.06
Lb/h 197 185 172 159 145 132 118
Btu/h 18100 16500 14900 13300 11700 10100 8550
Watts 1750 1790 1840 1880 1920 1950 1990
Amps 8.77 8.94 9.11 9.27 9.43 9.58 9.72
Lb/h 228 214 201 187 174 160 145
Btu/h 21000 19200 17400 15600 13800 12100 10300
Watts 1800 1870 1930 1990 2040 2100 2150
Amps 8.97 9.22 9.46 9.70 9.93 10.2 10.4
Lb/h 261 247 233 219 205 190 175
Btu/h 24100 22100 20100 18200 16200 14200 12300
25
30
35
40
45
50
55
Watts 1850 1930 2010 2090 2170 2240 2320
Amps 9.15 9.48 9.79 10.1 10.4 10.7 11.0
Lb/h 297 282 268 253 238 223 208
Btu/h 27500 25300 23100 20900 18800 16600 14500
Watts 1890 1990 2090 2190 2280 2380 2470
Amps 9.31 9.72 10.1 10.5 10.9 11.3 11.6
Lb/h 335 320 305 290 275 259 244
Btu/h 31200 28800 26400 24000 21600 19300 16900
Watts 1930 2050 2170 2280 2400 2510 2620
Amps 9.46 9.94 10.4 10.9 11.3 11.8 12.2
Lb/h 377 362 346 330 314 298 282
Btu/h 35100 32500 29900 27300 24700 22200 19600
Watts 1960 2100 2230 2370 2500 2630 2760
Amps 9.58 10.1 10.7 11.2 11.8 12.3 12.8
Lb/h 422 405 389 373 357 340 323
Btu/h 39400 36500 33700 30900 28100 25300 22500
Watts 1990 2140 2300 2450 2600 2750 2900
Amps 9.67 10.3 10.9 11.6 12.2 12.8 13.4
Lb/h 469 452 436 419 402 384 367
Btu/h 43900 40800 37800 34700 31700 28700 25800
Watts 2010 2180 2350 2520 2690 2860 3030
Amps 9.74 10.5 11.2 11.9 12.6 13.3 14.0
Lb/h 519 502 485 467 450 432 414
Btu/h 48700 45400 42100 38900 35600 32400 29200
Watts 2020 2210 2400 2590 2780 2970 3150
Amps 9.79 10.6 11.4 12.2 12.9 13.7 14.5
Lb/h 573 555 537 519 500 482 463
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.926771E+04 1.649456E+03 8.449669E+00 2.365257E+02
C2 7.114599E+02 -1.514078E+01 -6.935033E-02 5.499787E+00
C3 -1.047116E+02 -1.243298E+00 -4.907785E-03 -1.151027E+00
C4 5.095136E+00 -1.062977E-01 -3.363018E-04 5.803464E-02
C5 -3.863652E+00 3.688265E-01 1.499586E-03 -1.153642E-02
C6 -3.903191E-03 3.900646E-03 1.452190E-05 5.740059E-04
C7 1.450398E-02 5.703757E-05 -2.030663E-06 2.185476E-05
C8 -1.229069E-02 -1.448877E-04 1.369619E-06 -3.170194E-05
C9 2.613895E-03 6.651253E-05 -1.621174E-07 1.172494E-05
C10 -4.289615E-05 -3.752109E-05 -1.274910E-07 -5.556769E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
