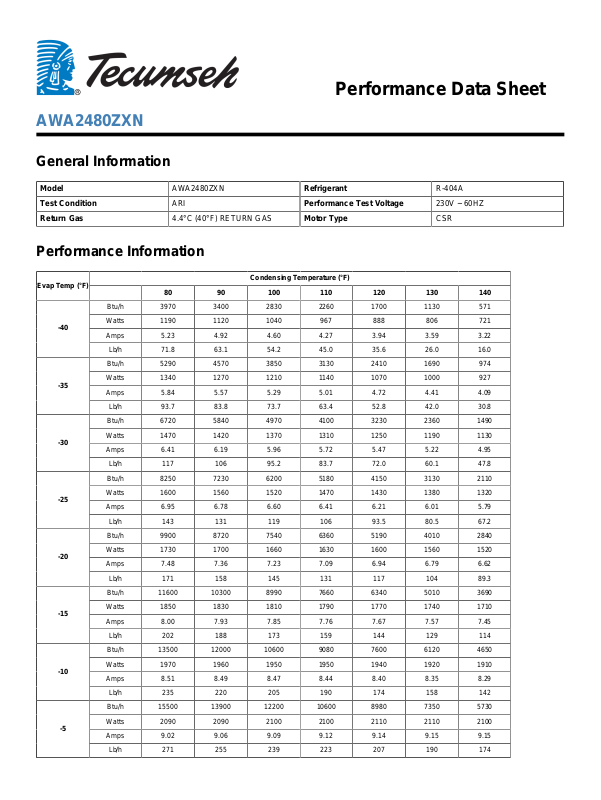

Tecumseh AWA2480ZXN Performance Data Sheet

Performance Data Sheet

AWA2480ZXN

General Information

Model AWA2480ZXN Refrigerant R-404A
Test Condition ARI Performance Test Voltage 230V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSR

Performance Information

Evap Temp (°F)

-40

-35

-30

-25

-20

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 3970 3400 2830 2260 1700 1130 571
Watts 1190 1120 1040 967 888 806 721
Amps 5.23 4.92 4.60 4.27 3.94 3.59 3.22

Lb/h 71.8 63.1 54.2 45.0 35.6 26.0 16.0

Btu/h 5290 4570 3850 3130 2410 1690 974
Watts 1340 1270 1210 1140 1070 1000 927
Amps 5.84 5.57 5.29 5.01 4.72 4.41 4.09

Lb/h 93.7 83.8 73.7 63.4 52.8 42.0 30.8

Btu/h 6720 5840 4970 4100 3230 2360 1490
Watts 1470 1420 1370 1310 1250 1190 1130
Amps 6.41 6.19 5.96 5.72 5.47 5.22 4.95

Lb/h 117 106 95.2 83.7 72.0 60.1 47.8

Btu/h 8250 7230 6200 5180 4150 3130 2110
Watts 1600 1560 1520 1470 1430 1380 1320
Amps 6.95 6.78 6.60 6.41 6.21 6.01 5.79

Lb/h 143 131 119 106 93.5 80.5 67.2

Btu/h 9900 8720 7540 6360 5190 4010 2840
Watts 1730 1700 1660 1630 1600 1560 1520
Amps 7.48 7.36 7.23 7.09 6.94 6.79 6.62

Lb/h 171 158 145 131 117 104 89.3

Btu/h 11600 10300 8990 7660 6340 5010 3690
Watts 1850 1830 1810 1790 1770 1740 1710
Amps 8.00 7.93 7.85 7.76 7.67 7.57 7.45

Lb/h 202 188 173 159 144 129 114

Btu/h 13500 12000 10600 9080 7600 6120 4650
Watts 1970 1960 1950 1950 1940 1920 1910
Amps 8.51 8.49 8.47 8.44 8.40 8.35 8.29

Lb/h 235 220 205 190 174 158 142

Btu/h 15500 13900 12200 10600 8980 7350 5730
Watts 2090 2090 2100 2100 2110 2110 2100
Amps 9.02 9.06 9.09 9.12 9.14 9.15 9.15

Lb/h 271 255 239 223 207 190 174

Btu/h 17600 15800 14000 12300 10500 8700 6920

0

5

10

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 3.184498E+04 2.022094E+03 8.673020E+00 4.404134E+02
C2 6.707646E+02 3.162202E+00 1.290924E-02 9.386501E+00
C3 -1.779969E+02 2.213050E+00 1.047567E-02 -1.630814E+00
C4 2.269920E+00 -1.438535E-02 -3.597002E-06 5.778264E-02
C5 -3.001964E+00 2.608625E-01 1.142213E-03 -1.534060E-02
C6 -4.564213E-03 4.693562E-03 1.975177E-05 4.027982E-04
C7 2.182306E-03 2.045671E-03 8.945126E-06 3.165493E-04
C8 8.807899E-04 8.871293E-04 3.917603E-06 1.359600E-04
C9 2.694477E-05 5.150783E-05 2.350476E-07 7.378960E-06

C10 3.134101E-05 -4.359615E-05 -1.843965E-07 -4.103239E-06

Watts 2210 2230 2250 2260 2280 2290 2300
Amps 9.54 9.64 9.73 9.82 9.90 9.96 10.0

Lb/h 310 294 277 260 243 226 209

Btu/h 19800 17900 15900 14000 12100 10200 8240
Watts 2330 2360 2400 2430 2460 2490 2510
Amps 10.1 10.2 10.4 10.5 10.7 10.8 10.9

Lb/h 353 336 319 301 284 266 248

Btu/h 22100 20100 18000 15900 13800 11700 9670
Watts 2460 2510 2550 2600 2640 2680 2720
Amps 10.6 10.9 11.1 11.3 11.5 11.7 11.9

Lb/h 400 382 364 346 328 309 291

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
