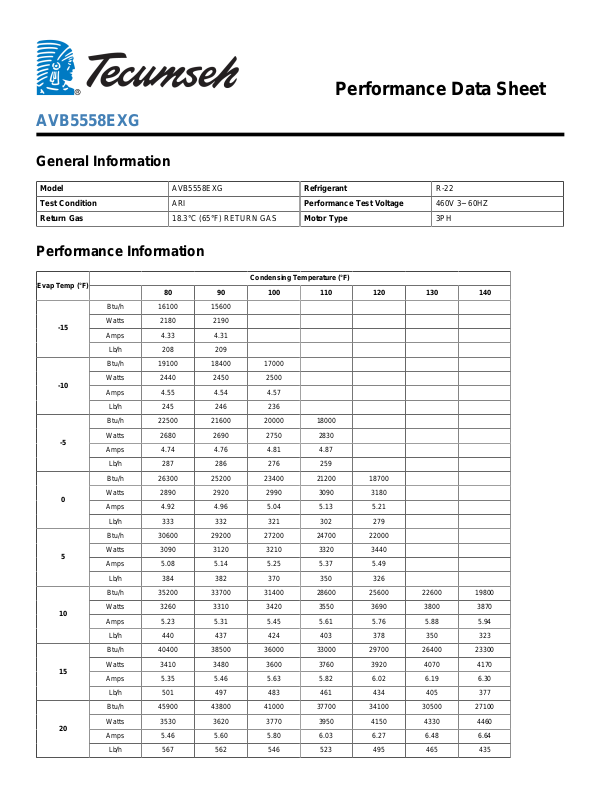

Tecumseh AVB5558EXG Performance Data Sheet

Performance Data Sheet

AVB5558EXG

General Information

Model AVB5558EXG Refrigerant R-22
Test Condition ARI Performance Test Voltage 460V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

-15

-10

-5

0

5

10

15

20

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 16100 15600
Watts 2180 2190
Amps 4.33 4.31

Lb/h 208 209

Btu/h 19100 18400 17000
Watts 2440 2450 2500
Amps 4.55 4.54 4.57

Lb/h 245 246 236

Btu/h 22500 21600 20000 18000
Watts 2680 2690 2750 2830
Amps 4.74 4.76 4.81 4.87

Lb/h 287 286 276 259

Btu/h 26300 25200 23400 21200 18700
Watts 2890 2920 2990 3090 3180
Amps 4.92 4.96 5.04 5.13 5.21

Lb/h 333 332 321 302 279

Btu/h 30600 29200 27200 24700 22000
Watts 3090 3120 3210 3320 3440
Amps 5.08 5.14 5.25 5.37 5.49

Lb/h 384 382 370 350 326

Btu/h 35200 33700 31400 28600 25600 22600 19800
Watts 3260 3310 3420 3550 3690 3800 3870
Amps 5.23 5.31 5.45 5.61 5.76 5.88 5.94

Lb/h 440 437 424 403 378 350 323

Btu/h 40400 38500 36000 33000 29700 26400 23300
Watts 3410 3480 3600 3760 3920 4070 4170
Amps 5.35 5.46 5.63 5.82 6.02 6.19 6.30

Lb/h 501 497 483 461 434 405 377

Btu/h 45900 43800 41000 37700 34100 30500 27100
Watts 3530 3620 3770 3950 4150 4330 4460
Amps 5.46 5.60 5.80 6.03 6.27 6.48 6.64

Lb/h 567 562 546 523 495 465 435

Btu/h 52000 49600 46500 42800 38900 35000 31300

25

30

35

40

45

50

55

Watts 3630 3740 3910 4130 4350 4570 4750
Amps 5.55 5.72 5.95 6.22 6.50 6.77 6.98

Lb/h 637 631 615 590 561 529 498

Btu/h 58500 55800 52400 48400 44200 39900 35800
Watts 3690 3830 4030 4280 4550 4800 5020
Amps 5.63 5.82 6.09 6.40 6.73 7.04 7.31

Lb/h 712 706 688 663 632 599 566

Btu/h 65500 62500 58700 54400 49800 45200 40700
Watts 3730 3900 4130 4420 4720 5020 5280
Amps 5.69 5.91 6.22 6.57 6.94 7.30 7.63

Lb/h 793 785 767 740 708 673 638

Btu/h 73000 69600 65500 60800 55900 50900 46000
Watts 3740 3930 4210 4530 4870 5220 5530
Amps 5.73 5.99 6.33 6.72 7.14 7.56 7.94

Lb/h 878 870 850 822 789 753 716

Btu/h 80900 77200 72700 67700 62400 57000 51700
Watts 3710 3940 4250 4620 5010 5400 5770
Amps 5.75 6.04 6.42 6.86 7.33 7.80 8.24

Lb/h 969 959 939 910 875 837 799

Btu/h 89400 85300 80500 75100 69300 63500 57900
Watts 3660 3920 4270 4680 5120 5560 5990
Amps 5.76 6.08 6.50 6.99 7.51 8.03 8.54

Lb/h 1060 1050 1030 1000 966 927 888

Btu/h 98400 94000 88700 82900 76700 70500 64400
Watts 3560 3870 4270 4720 5210 5710 6190
Amps 5.75 6.11 6.57 7.10 7.67 8.25 8.82

Lb/h 1170 1150 1130 1100 1060 1020 981

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 -1.630857E+04 7.538609E+03 9.613128E+00 -3.298120E+02
C2 1.081095E+03 5.111989E+01 3.521026E-02 1.007424E+01
C3 1.377771E+03 -1.430822E+02 -1.486809E-01 1.902204E+01
C4 1.124136E+01 -9.062840E-01 -5.600506E-04 9.476403E-02
C5 -2.739848E+00 -4.031600E-01 -4.229838E-04 7.620234E-03
C6 -1.357364E+01 1.409225E+00 1.509629E-03 -1.700175E-01
C7 1.216778E-02 -1.623424E-03 -1.592008E-08 5.906147E-05
C8 -3.383916E-02 5.821961E-03 2.724276E-06 -1.980106E-06
C9 -8.895362E-03 3.513476E-03 5.084793E-06 -1.474168E-04

C10 3.767516E-02 -4.331911E-03 -4.804708E-06 4.483913E-04

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
