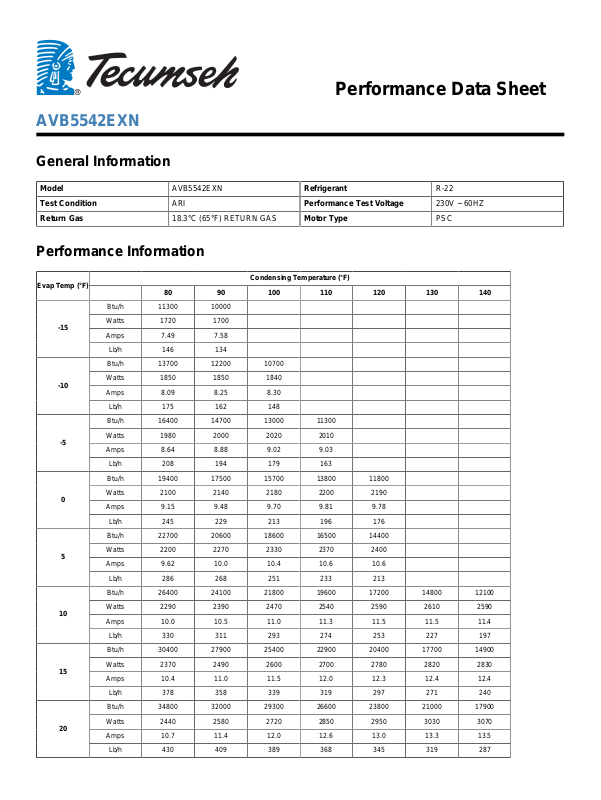

Tecumseh AVB5542EXN Performance Data Sheet

Performance Data Sheet

AVB5542EXN

General Information

Model AVB5542EXN Refrigerant R-22
Test Condition ARI Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

0

5

10

15

20

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 11300 10000
Watts 1720 1700
Amps 7.49 7.58

Lb/h 146 134

Btu/h 13700 12200 10700
Watts 1850 1850 1840
Amps 8.09 8.25 8.30

Lb/h 175 162 148

Btu/h 16400 14700 13000 11300
Watts 1980 2000 2020 2010
Amps 8.64 8.88 9.02 9.03

Lb/h 208 194 179 163

Btu/h 19400 17500 15700 13800 11800
Watts 2100 2140 2180 2200 2190
Amps 9.15 9.48 9.70 9.81 9.78

Lb/h 245 229 213 196 176

Btu/h 22700 20600 18600 16500 14400
Watts 2200 2270 2330 2370 2400
Amps 9.62 10.0 10.4 10.6 10.6

Lb/h 286 268 251 233 213

Btu/h 26400 24100 21800 19600 17200 14800 12100
Watts 2290 2390 2470 2540 2590 2610 2590
Amps 10.0 10.5 11.0 11.3 11.5 11.5 11.4

Lb/h 330 311 293 274 253 227 197

Btu/h 30400 27900 25400 22900 20400 17700 14900
Watts 2370 2490 2600 2700 2780 2820 2830
Amps 10.4 11.0 11.5 12.0 12.3 12.4 12.4

Lb/h 378 358 339 319 297 271 240

Btu/h 34800 32000 29300 26600 23800 21000 17900
Watts 2440 2580 2720 2850 2950 3030 3070
Amps 10.7 11.4 12.0 12.6 13.0 13.3 13.5

Lb/h 430 409 389 368 345 319 287

Btu/h 39500 36500 33500 30600 27600 24500 21300

25

30

35

40

45

50

55

Watts 2480 2660 2830 2980 3120 3220 3290
Amps 10.9 11.7 12.5 13.2 13.7 14.2 14.5

Lb/h 486 464 443 421 397 370 338

Btu/h 44700 41400 38100 34900 31700 28400 24900
Watts 2510 2720 2920 3100 3270 3410 3510
Amps 11.1 12.0 12.9 13.7 14.4 15.0 15.4

Lb/h 546 523 501 478 454 426 393

Btu/h 50200 46600 43100 39600 36200 32600 28900
Watts 2520 2760 2990 3210 3410 3580 3710
Amps 11.1 12.2 13.2 14.2 15.0 15.8 16.3

Lb/h 610 586 562 539 514 485 452

Btu/h 56200 52300 48500 44700 41000 37100 33200
Watts 2520 2790 3050 3300 3530 3740 3910
Amps 11.1 12.3 13.5 14.6 15.6 16.5 17.2

Lb/h 678 652 628 604 578 549 516

Btu/h 62500 58300 54200 50100 46100 42000 37800
Watts 2490 2790 3090 3380 3640 3880 4090
Amps 11.0 12.4 13.7 14.9 16.1 17.1 18.0

Lb/h 750 723 698 673 646 617 583

Btu/h 69300 64700 60300 56000 51600 47200 42700
Watts 2440 2780 3110 3430 3730 4010 4250
Amps 10.8 12.3 13.8 15.1 16.5 17.7 18.8

Lb/h 826 798 772 746 719 689 655

Btu/h 76500 71600 66800 62200 57500 52800 48000
Watts 2370 2750 3110 3470 3810 4120 4400
Amps 10.5 12.1 13.8 15.3 16.8 18.2 19.5

Lb/h 906 877 850 823 796 765 731

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.350240E+04 2.223611E+03 5.596717E+00 5.612791E+02
C2 1.032663E+03 -1.216543E+01 1.787791E-03 1.087450E+01
C3 -4.822570E+02 -1.522696E+01 3.017519E-02 -7.853379E+00
C4 8.812845E+00 -4.269830E-01 -1.907600E-03 7.210389E-02
C5 -5.848574E+00 3.943950E-01 7.335749E-04 -5.131955E-02
C6 3.130644E+00 2.628657E-01 4.574651E-04 6.881724E-02
C7 1.332286E-02 -1.339846E-03 -7.212995E-06 4.067282E-05
C8 -2.697916E-02 2.352273E-03 1.206245E-05 4.443080E-05
C9 1.062515E-02 4.353048E-04 5.890958E-06 1.502649E-04

C10 -1.092890E-02 -1.151504E-03 -3.485596E-06 -2.508484E-04

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
