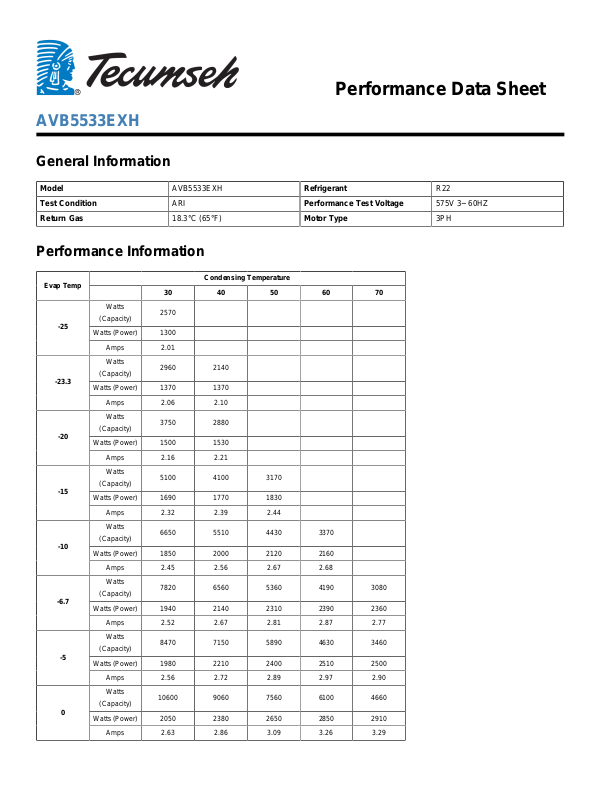

Performance Data Sheet

AVB5533EXH

General Information

Model AVB5533EXH Refrigerant R22 Test Condition ARI Performance Test Voltage 575V 3~ 60HZ Return Gas 18.3°C (65°F) Motor Type 3PH

Performance Information

Evap Temp

-25

-23.3

-20

-15

-10

-6.7

-5

Condensing Temperature

30 40 50 60 70

Watts

(Capacity)

Watts (Power) 1300

Amps 2.01 Watts

(Capacity)

Watts (Power) 1370 1370

Amps 2.06 2.10 Watts

(Capacity)

Watts (Power) 1500 1530

Amps 2.16 2.21 Watts

(Capacity)

Watts (Power) 1690 1770 1830

Amps 2.32 2.39 2.44 Watts

(Capacity)

Watts (Power) 1850 2000 2120 2160

Amps 2.45 2.56 2.67 2.68 Watts

(Capacity)

Watts (Power) 1940 2140 2310 2390 2360

Amps 2.52 2.67 2.81 2.87 2.77 Watts

(Capacity)

Watts (Power) 1980 2210 2400 2510 2500

Amps 2.56 2.72 2.89 2.97 2.90 Watts

(Capacity)

Watts (Power) 2050 2380 2650 2850 2910

Amps 2.63 2.86 3.09 3.26 3.29

2570

2960 2140

3750 2880

5100 4100 3170

6650 5510 4430 3370

7820 6560 5360 4190 3080

8470 7150 5890 4630 3460

10600 9060 7560 6100 4660

7.2

Watts

(Capacity)

Watts (Power) 2070 2490 2870 3150 3310

Amps 2.65 2.95 3.28 3.54 3.68 Watts

(Capacity)

Watts (Power) 2050 2520 2950 3280 3470

Amps 2.64 2.98 3.35 3.66 3.85 Watts

(Capacity)

Watts (Power) 2010 2550 3030 3420 3680

Amps 2.61 3.01 3.43 3.80 4.06 Watts

(Capacity)

Watts (Power) 1860 2520 3140 3640 4010

Amps 2.50 3.00 3.54 4.03 4.42

13000 11300 9520 7800 6100

14200 12400 10500 8650 6800

15900 13900 11800 9790 7800

19200 16800 14400 12100 9760
