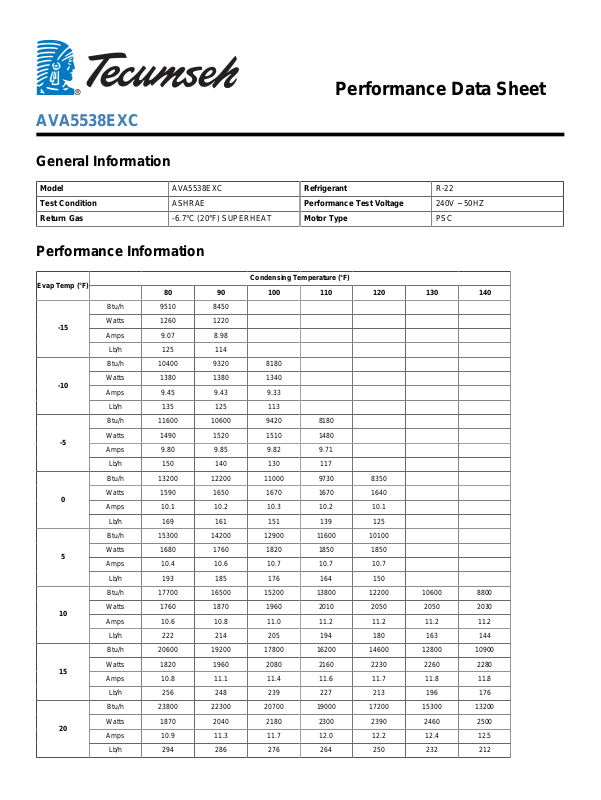

Tecumseh AVA5538EXC Performance Data Sheet

Performance Data Sheet

AVA5538EXC

General Information

Model AVA5538EXC Refrigerant R-22
Test Condition ASHRAE Performance Test Voltage 240V ~ 50HZ
Return Gas -6.7°C (20°F) SUPERHEAT Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

0

5

10

15

20

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 9510 8450
Watts 1260 1220
Amps 9.07 8.98

Lb/h 125 114

Btu/h 10400 9320 8180
Watts 1380 1380 1340
Amps 9.45 9.43 9.33

Lb/h 135 125 113

Btu/h 11600 10600 9420 8180
Watts 1490 1520 1510 1480
Amps 9.80 9.85 9.82 9.71

Lb/h 150 140 130 117

Btu/h 13200 12200 11000 9730 8350
Watts 1590 1650 1670 1670 1640
Amps 10.1 10.2 10.3 10.2 10.1

Lb/h 169 161 151 139 125

Btu/h 15300 14200 12900 11600 10100
Watts 1680 1760 1820 1850 1850
Amps 10.4 10.6 10.7 10.7 10.7

Lb/h 193 185 176 164 150

Btu/h 17700 16500 15200 13800 12200 10600 8800
Watts 1760 1870 1960 2010 2050 2050 2030
Amps 10.6 10.8 11.0 11.2 11.2 11.2 11.2

Lb/h 222 214 205 194 180 163 144

Btu/h 20600 19200 17800 16200 14600 12800 10900
Watts 1820 1960 2080 2160 2230 2260 2280
Amps 10.8 11.1 11.4 11.6 11.7 11.8 11.8

Lb/h 256 248 239 227 213 196 176

Btu/h 23800 22300 20700 19000 17200 15300 13200
Watts 1870 2040 2180 2300 2390 2460 2500
Amps 10.9 11.3 11.7 12.0 12.2 12.4 12.5

Lb/h 294 286 276 264 250 232 212

Btu/h 27500 25800 24000 22100 20100 18000 15700

25

30

35

40

45

50

55

Watts 1910 2110 2280 2420 2540 2640 2710
Amps 11.0 11.5 11.9 12.3 12.6 12.9 13.1

Lb/h 336 328 318 305 290 272 250

Btu/h 31500 29600 27700 25600 23300 21000 18500
Watts 1940 2160 2360 2530 2680 2800 2900
Amps 11.0 11.6 12.1 12.6 13.0 13.4 13.7

Lb/h 384 375 364 350 334 315 292

Btu/h 35900 33900 31600 29300 26800 24200 21500
Watts 1960 2210 2430 2630 2800 2950 3080
Amps 11.1 11.7 12.3 12.9 13.4 13.8 14.2

Lb/h 435 425 413 399 381 361 337

Btu/h 40800 38400 35900 33300 30600 27700 24700
Watts 1960 2240 2480 2710 2910 3080 3240
Amps 11.0 11.8 12.5 13.1 13.7 14.2 14.7

Lb/h 491 480 467 451 432 410 384

Btu/h 46000 43400 40600 37700 34600 31500 28100
Watts 1960 2250 2520 2770 3000 3200 3380
Amps 11.0 11.8 12.6 13.3 14.0 14.6 15.2

Lb/h 551 539 524 506 486 462 435

Btu/h 51600 48700 45600 42300 39000 35500 31800
Watts 1940 2250 2550 2820 3070 3300 3510
Amps 10.9 11.8 12.6 13.4 14.2 14.9 15.6

Lb/h 615 601 585 566 543 517 488

Btu/h 57700 54400 50900 47300 43600 39700 35700
Watts 1900 2240 2560 2860 3130 3380 3620
Amps 10.7 11.7 12.7 13.6 14.4 15.3 16.0

Lb/h 684 668 649 628 604 576 544

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 1.772816E+04 -3.551182E+01 6.625872E+00 2.228841E+02
C2 4.107249E+02 -2.534924E+01 -3.823679E-02 2.713506E+00
C3 -7.647218E+00 3.465857E+01 6.994382E-02 -9.388796E-01
C4 1.259553E+01 -1.036041E-01 -1.012716E-03 1.333184E-01
C5 -2.028934E-01 5.021020E-01 9.355456E-04 2.777937E-02
C6 -6.380419E-01 -1.917758E-01 -3.176634E-04 7.947384E-03
C7 -3.720113E-04 -1.523798E-04 3.460966E-07 -8.112709E-05
C8 -5.754503E-02 -1.538237E-03 2.239119E-06 -4.758164E-04
C9 -3.994366E-03 5.903695E-04 3.045611E-06 -8.929570E-05

C10 4.212928E-04 1.611188E-04 -1.769545E-07 -5.779998E-05

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
