Tecumseh AKA9475EXDKS User Manual
AKA9475EXDKS_Rel
AKA9475EXDKS
Overall Dimensions, inch (mm)
Line connections
Pump down
Air flow
Oil Ch.
Gross weight
L W H
Suction
Liquid
90% @ 90oF
SCFM
Oz.
Lbs. (kg)
26.43 (671)
28.94 (735)
26.08 (662)
1/2"
3/8"
18.18
750
17.8
190 (86)
Factory charge 20 psig dry air, MUST BE EVACUATED
Evaporator
Ambient Temperatures
80°F
90°F
95°F
100°F
110°F
T, °F
PSIG
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
10
32.8
6000
1050
94
5700
1080
101
5400
1090
105
5200
1100
110
4600
1120
120
15
37.7
6800
1100
96
6400
1130
103
6200
1140
107
5900
1150
112
5300
1180
121
20
43.0
7600
1150
98
7200
1180
105
6900
1190
109
6600
1210
113
6000
1240
122
25
48.8
8500
1200
100
8000
1230
107
7800
1240
111
7400
1260
115
6800
1300
124
30
54.8
9400
1250
102
8900
1280
108
8600
1300
112
8300
1320
117
7600
1360
126
35
61.5
10300
1300
104
9900
1340
110
9600
1360
114
9200
1380
118
8500
1430
128
40
68.5
11300
1350
105
10900
1390
112
10500
1410
116
10200
1440
120
9400
1500
130
45
76.0
12400
1400
107
11900
1450
113
11600
1470
118
11200
1500
122
10400
1570
132
Performance @ 60 Hz, Return gas 40oF below 20oF Evaporator and 65oF above 20oF evaporator, Sub Cooling 5oF
TPC March 15, 2016

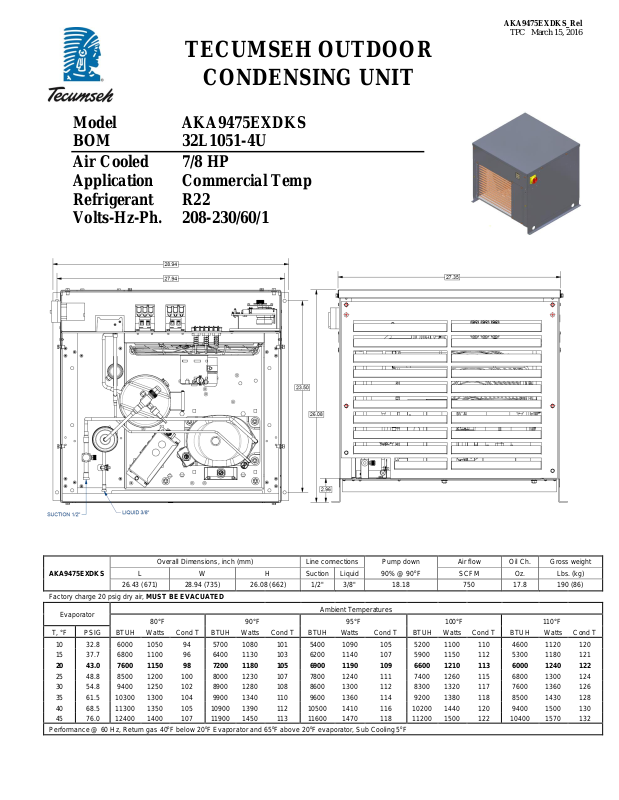

TECUMSEH OUTDOOR
CONDENSING UNIT
Model AKA9475EXDKS
BOM 32L1051-4U
Air Cooled 7/8 HP
Application Commercial Temp
Refrigerant R22
Volts-Hz-Ph. 208-230/60/1
AKA9475EXDKS_Rel
Parts/Specifications
Unit BOM
32L1051-4U
Fan Motor
810F050C20
Adjustable Fan Control
----
Unit MODEL
AKA9475EXDKS
Replacement Fan Motor
50W230
Fixed Fan Control
----
Fan Motor Qty
1
Refrigeration Range
10°F to 45°F
Fan Motor RLA
0.7
Defrost Timer
----
Design Pressure Low / High
150 / 450
Fan Blade
51568-1
Electric Defrost Timer
----
Volts - HZ - Ph
208-230V ~ 60HZ
Fan Guard
70831
Voltage Range
187 - 253
Receiver Heater
-----
Min. Circuit Ampacity
7.84
Shroud
70727-2
Receiver Heater Thermostat
-----
Max. Fuse Size
15
Condenser
50857-1
C/Case Heater
92123-2
Compressor MODEL
AKA9462EXD
Receiver
51082-1K
Unit Drawing
DGU1909-L421
Compressor BOM
AK166ET-037-J7
Accumulator
----
Wiring Diagram
WD21-101
Compressor LRA
31
Liquid Filter
70139
Compressor RLA
5.71
Sight Glass
70084-S
Suction Filter
----
Overload
8300MRAG29
Replacement Kit - O/L
K90-20
High Pressure Switch
84095-1L
Relay
8200RVAM01
Low Pressure Control
----
Replacement Kit - Relay
K71-17
Low Pressure Switch
841-10005
Run Capacitor
85PR370E36
Head Master Valve
70083-1
Replacement Kit Run Cap.
K150-03
Check Valve
----
Loose Optional Items
Start Capacitor
85685
Liquid Valve
31590
Disconnect Switch
LDSG-311
Replacement Kit Start Cap
K146-02
Suction Valve (Base)
56500-K08
Liquid Solenoid
KSVC-264
Contactor
91014H
Hail Louver
----
TPC March 15, 2016
