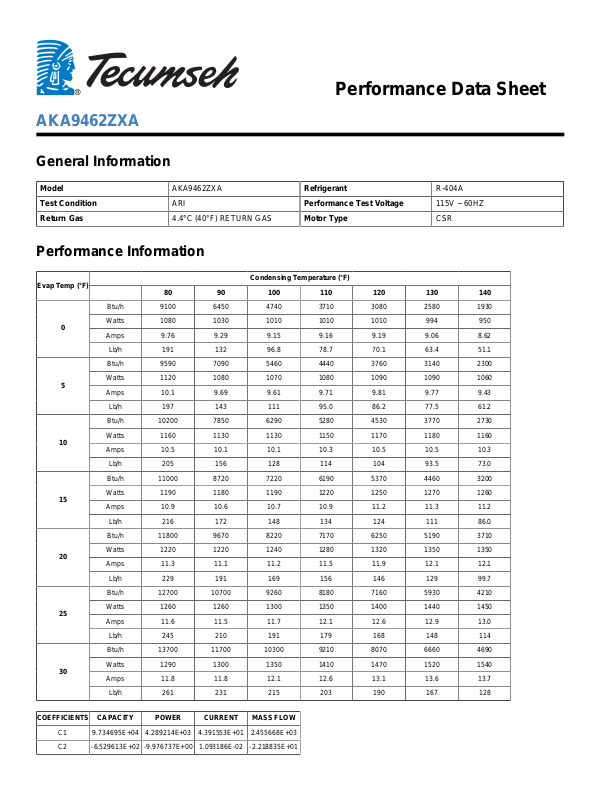

Performance Data Sheet
AKA9462ZXA
General Information
Model AKA9462ZXA Refrigerant R-404A
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSR
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 9100 6450 4740 3710 3080 2580 1930
Watts 1080 1030 1010 1010 1010 994 950
Amps 9.76 9.29 9.15 9.16 9.19 9.06 8.62
Lb/h 191 132 96.8 78.7 70.1 63.4 51.1
Btu/h 9590 7090 5460 4440 3760 3140 2300
Watts 1120 1080 1070 1080 1090 1090 1060
Amps 10.1 9.69 9.61 9.71 9.81 9.77 9.43
Lb/h 197 143 111 95.0 86.2 77.5 61.2
Btu/h 10200 7850 6290 5280 4530 3770 2730
Watts 1160 1130 1130 1150 1170 1180 1160
Amps 10.5 10.1 10.1 10.3 10.5 10.5 10.3
Lb/h 205 156 128 114 104 93.5 73.0
Btu/h 11000 8720 7220 6190 5370 4460 3200
Watts 1190 1180 1190 1220 1250 1270 1260
Amps 10.9 10.6 10.7 10.9 11.2 11.3 11.2
Lb/h 216 172 148 134 124 111 86.0
Btu/h 11800 9670 8220 7170 6250 5190 3710
Watts 1220 1220 1240 1280 1320 1350 1350
Amps 11.3 11.1 11.2 11.5 11.9 12.1 12.1
Lb/h 229 191 169 156 146 129 99.7
Btu/h 12700 10700 9260 8180 7160 5930 4210
Watts 1260 1260 1300 1350 1400 1440 1450
Amps 11.6 11.5 11.7 12.1 12.6 12.9 13.0
Lb/h 245 210 191 179 168 148 114
Btu/h 13700 11700 10300 9210 8070 6660 4690
Watts 1290 1300 1350 1410 1470 1520 1540
Amps 11.8 11.8 12.1 12.6 13.1 13.6 13.7
Lb/h 261 231 215 203 190 167 128
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 9.734695E+04 4.289214E+03 4.391553E+01 2.455668E+03
C2 -6.529613E+02 -9.976737E+00 1.093186E-02 -2.218835E+01
C3 -2.176432E+03 -8.888500E+01 -9.538388E-01 -5.720518E+01
C4 5.025502E+00 -6.542823E-03 1.282346E-03 1.107631E-01
C5 1.463087E+01 2.246707E-01 7.311167E-05 4.388992E-01
C6 1.706852E+01 8.031786E-01 8.683824E-03 4.617530E-01
C7 -2.901677E-02 1.208627E-04 -4.562942E-05 -5.495635E-04
C8 -2.313868E-02 -4.196367E-04 4.750338E-06 -5.057531E-04
C9 -6.790019E-02 -6.954028E-06 6.743726E-06 -1.908481E-03
C10 -4.564741E-02 -2.418788E-03 -2.622347E-05 -1.255920E-03
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
AKA9462ZXA
General Information
Model AKA9462ZXA Refrigerant R-404A
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSR
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 11200 9970 8830 7740 6620 5410 4040
Watts 1060 1150 1220 1260 1300 1320 1330
Amps 9.25 10.2 10.9 11.3 11.7 11.8 12.0
Lb/h 179 170 162 155 146 134 119
Btu/h 12400 11100 9950 8830 7690 6450 5070
Watts 1100 1190 1260 1320 1360 1400 1420
Amps 9.65 10.6 11.4 11.9 12.3 12.6 12.9
Lb/h 200 192 185 179 172 163 150
Btu/h 13700 12400 11100 9940 8730 7430 5990
Watts 1140 1230 1310 1380 1430 1480 1520
Amps 10.0 11.0 11.8 12.4 12.9 13.3 13.8
Lb/h 220 212 206 201 195 187 176
Btu/h 15200 13700 12400 11100 9770 8380 6840
Watts 1170 1270 1360 1430 1500 1550 1610
Amps 10.4 11.4 12.2 12.9 13.5 14.0 14.6
Lb/h 242 234 228 222 217 210 199
Btu/h 16900 15200 13800 12300 10900 9330 7660
Watts 1210 1310 1400 1490 1560 1630 1700
Amps 10.8 11.8 12.6 13.3 14.0 14.7 15.4
Lb/h 269 259 253 247 241 234 224
Btu/h 18800 17000 15300 13700 12000 10300 8470
Watts 1250 1350 1450 1540 1620 1700 1780
Amps 11.2 12.2 13.0 13.8 14.5 15.3 16.1
Lb/h 303 292 284 277 270 263 252
Btu/h 20900 18900 17000 15200 13300 11400 9330
Watts 1280 1390 1490 1590 1680 1770 1860
Amps 11.6 12.5 13.4 14.2 15.0 15.9 16.9
Lb/h 349 336 325 316 308 299 287
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 2.985619E+04 -8.918768E+02 -1.894406E+01 3.537688E+02
C2 1.124142E+01 9.124954E+00 2.492906E-01 7.994514E+00
C3 -4.854702E+02 4.079437E+01 6.060452E-01 -7.592094E+00
C4 5.277408E+00 1.303947E-01 -1.128237E-04 -2.121421E-01
C5 2.181940E+00 -2.092976E-01 -3.918690E-03 3.579714E-02
C6 3.368929E+00 -2.586905E-01 -4.146429E-03 6.096190E-02
C7 4.627592E-02 -1.002281E-03 1.026157E-05 4.002137E-03
C8 -7.741667E-02 -4.833333E-04 -1.283333E-05 -1.367000E-03
C9 3.482143E-03 1.910714E-03 2.839286E-05 2.671429E-04
C10 -1.083333E-02 4.444444E-04 8.333333E-06 -2.194444E-04
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
