Tecumseh AKA9442ZNADC, AKA9442ZNADA, AKA9442ZNADG, AKA9442ZNADH, AKA9442ZNADK Performance Data Sheet
...
January 23, 2013
Model
Dimensions, inches
Line Connection*
Pumpdown
Air
Oil Ch
Gr. Wt.
L W H
CH
Suction
Liquid
90 F 90%
SCFM
Oz.
Lbs.
AKA9442ZNADA
20.0
14.3
12.1
10.1
3/8” S
1/4” S
N/A
230
17
53
AKA9442ZNADG
3/8” S
3/8” S
2.7 lbs
54
AKA9442ZNADH
3/8” S
3/8” S
N/A
53
AKA9442ZNADK
3/8” S
1/4” S
53
AKA9442ZNADC
3/8” S
3/8” S
2.7 lbs
54
AKA9442ZNADS
3/8” S
3/8” S
N/A
53
AKA9442ZNADJ
3/8” S
3/8” S
2.7 lbs
54
AKA9442ZNADP
3/8” S
3/8” S
2.7 lbs
54
* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting
Factory charge: 20 PSIG Nitrogen – MUST BE EVACUATED
Ambient Temperatures
Evaporator T,
80°F
90°F
100°F
110°F
°F
PSIG
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
0
33.4
3338
621
98
2679
574
106
2070
527
113
1511
481
121 5 37.6
3849
683
100
3169
644
107
2537
606
115
1954
567
122
10
43.9
4373
743
102
3672
713
109
3018
682
116
2411
652
124
15
49.8
4900
801
104
4178
779
114
3501
757
119
2871
734
126
20
56.1
5419
858
107
4237
890
118
3977
829
121
3322
814
128
25
62.9
5916
912
111
5152
905
119
4430
899
124
3751
892
131
30
70.2
6377
964
115
5591
956
121
4846
967
128
4140
969
135
35
77.9
6783
1014
119
5975
1023
126
5204
1033
132
4469
1043
139
40
87.0
7114
1061
124
6282
1079
131
5483
1097
137
4713
1115
144
45
95.1
7345
1107
130
6485
1133
136
5651
1159
142
4858
1185
149
50
106.2
7445
1151
136
6549
1184
142
5667
1218
148
5328
1252
154

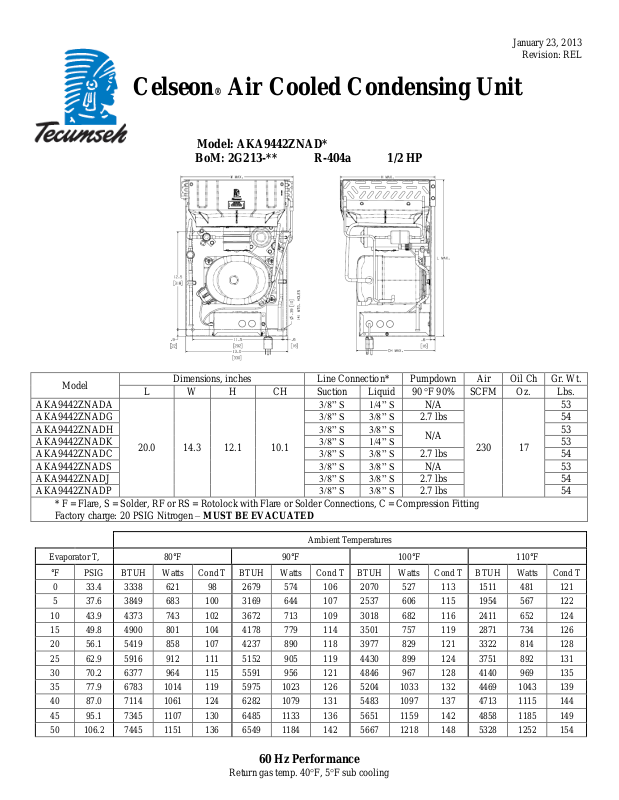

Celseon® Air Cooled Condensing Unit
Model: AKA9442ZNAD*
BoM: 2G213-** R-404a 1/2 HP
Revision: REL
60 Hz Performance
Return gas temp. 40F, 5F sub cooling
Specifications/ Parts:
Unit Model
AKA9442ZNADA
Unit Model
AKA9442ZNADG
Unit Bill of Material
2G213-09
Unit Bill of Material
2G213-19
Refrigeration Range
-10° F to +45° F
Receiver Tank
510-10000
Design Pressure Low
181
Liquid Valve
56630
Design Pressure High
450
Suction Valve
56630
Nominal Volts-Hz-Ph
208/230-60-1
Voltage Range
187-254
Unit Model
AKA9442ZNADH
Min. Circuit Ampacity
5.8
Unit Bill of Material
2G213-29
Max. Fuse Size (amps)
15
Liquid Valve
56630
Suction Valve
56630
Compressor Model
AKA9438ZXD
Comp. Bill of Material
AK175ET-037-P2
Unit Model
AKA9442ZNADK
Compressor RLA/LRA
4.3/31
Unit Bill of Material
2G213-39
Overload
External
Power Cord
85259-5
Relay
820ARR3C29
Run Capacitor
85PR370E36
Unit Model
AKA9442ZNADC
Run Capacitor Rating
15MFD 370V(M) VDE
Unit Bill of Material
2G213-59
Start Capacitor
85685
Receiver Tank
510-10000
Start Capacitor Rating
72-88 MFD 330V VDE
Liquid Valve
56630
Suction Valve
56630
Fan Motor
810-10002
Power Cord
85259-5
Fan Motor RLA
.45 Fan Blade
515-10003
Unit Model
AKA9442ZNADS
Fan Shroud/Guard Combo
707-00005
Unit Bill of Material
2G213-69
Condenser
506-10008
Liquid Valve
56630
Suction Valve
56630
Unit Drawing
DGU1970-04
Power Cord
85259-5
Wiring Diagram
91266-02
Unit Model
AKA9442ZNADJ
Replacement Kit: Relay
K71-17
Unit Bill of Material
2G213-79
Replacement Kit: O/L
K90-16
Receiver Tank
510-10000
Liquid Valve
56630
Suction Valve
56630
Filter Drier
71116
Sight Glass
70084
Unit Model
AKA9442ZNADP
Unit Bill of Material
2G213-89
Receiver Tank
510-10000
Liquid Valve
56630
Suction Valve
56630
Power Cord
85259-5
Filter Drier
71116
Sight Glass
70084
January 23, 2013
Revision: REL
