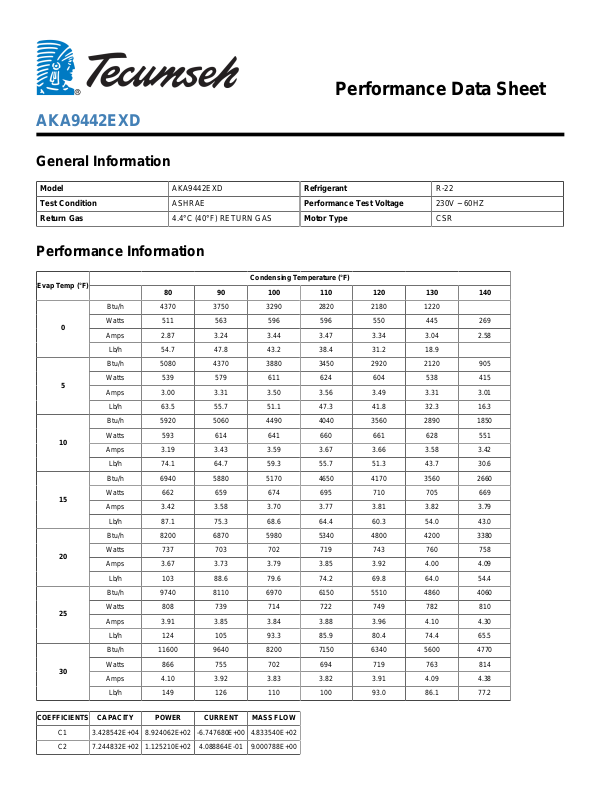

Performance Data Sheet
AKA9442EXD
General Information
Model AKA9442EXD Refrigerant R-22
Test Condition ASHRAE Performance Test Voltage 230V ~ 60HZ
Return Gas 4.4°C (40°F) RETURN GAS Motor Type CSR
Performance Information
Evap Temp (°F)
0
5
10
15
20
25
30
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 4370 3750 3290 2820 2180 1220
Watts 511 563 596 596 550 445 269
Amps 2.87 3.24 3.44 3.47 3.34 3.04 2.58
Lb/h 54.7 47.8 43.2 38.4 31.2 18.9
Btu/h 5080 4370 3880 3450 2920 2120 905
Watts 539 579 611 624 604 538 415
Amps 3.00 3.31 3.50 3.56 3.49 3.31 3.01
Lb/h 63.5 55.7 51.1 47.3 41.8 32.3 16.3
Btu/h 5920 5060 4490 4040 3560 2890 1850
Watts 593 614 641 660 661 628 551
Amps 3.19 3.43 3.59 3.67 3.66 3.58 3.42
Lb/h 74.1 64.7 59.3 55.7 51.3 43.7 30.6
Btu/h 6940 5880 5170 4650 4170 3560 2660
Watts 662 659 674 695 710 705 669
Amps 3.42 3.58 3.70 3.77 3.81 3.82 3.79
Lb/h 87.1 75.3 68.6 64.4 60.3 54.0 43.0
Btu/h 8200 6870 5980 5340 4800 4200 3380
Watts 737 703 702 719 743 760 758
Amps 3.67 3.73 3.79 3.85 3.92 4.00 4.09
Lb/h 103 88.6 79.6 74.2 69.8 64.0 54.4
Btu/h 9740 8110 6970 6150 5510 4860 4060
Watts 808 739 714 722 749 782 810
Amps 3.91 3.85 3.84 3.88 3.96 4.10 4.30
Lb/h 124 105 93.3 85.9 80.4 74.4 65.5
Btu/h 11600 9640 8200 7150 6340 5600 4770
Watts 866 755 702 694 719 763 814
Amps 4.10 3.92 3.83 3.82 3.91 4.09 4.38
Lb/h 149 126 110 100 93.0 86.1 77.2
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 3.428542E+04 8.924062E+02 -6.747680E+00 4.833540E+02
C2 7.244832E+02 1.125210E+02 4.088864E-01 9.000788E+00
C3 -8.454563E+02 -2.899995E+01 1.979940E-01 -1.241760E+01
C4 9.968336E+00 1.604558E+00 4.114468E-03 1.329289E-01
C5 -1.271724E+01 -2.414896E+00 -8.358285E-03 -1.637185E-01
C6 8.047932E+00 4.728643E-01 -1.017322E-03 1.205486E-01
C7 7.397355E-02 -1.289372E-02 -3.590240E-05 1.073916E-03
C8 -1.074847E-01 -1.134985E-02 -2.777040E-05 -1.445030E-03
C9 6.677390E-02 1.300229E-02 4.319380E-05 8.996183E-04
C10 -2.693241E-02 -2.125064E-03 5.648572E-07 -4.039128E-04
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
Performance Data Sheet
AKA9442EXD
General Information
Model AKA9442EXD Refrigerant R-22
Test Condition ASHRAE Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSR
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 9270 7200 6020 5360 4880 4200 2980
Watts 689 687 701 723 745 760 760
Amps 4.01 3.82 3.80 3.86 3.95 4.00 3.93
Lb/h 118 92.9 80.1 74.5 70.8 64.0 49.0
Btu/h 10300 8130 6880 6170 5640 4940 3700
Watts 707 710 728 755 783 805 813
Amps 4.05 3.89 3.89 3.98 4.09 4.16 4.11
Lb/h 130 104 91.1 85.1 81.3 74.6 59.9
Btu/h 11400 9130 7810 7040 6470 5730 4460
Watts 720 726 749 782 816 845 861
Amps 4.06 3.93 3.96 4.07 4.21 4.29 4.26
Lb/h 142 116 103 96.5 92.6 85.9 71.3
Btu/h 12500 10200 8820 7980 7350 6570 5280
Watts 727 738 766 804 845 881 905
Amps 4.06 3.96 4.01 4.15 4.31 4.41 4.40
Lb/h 156 129 115 109 105 97.8 83.4
Btu/h 13800 11400 9910 9010 8320 7480 6160
Watts 730 746 779 824 872 915 947
Amps 4.04 3.97 4.06 4.22 4.40 4.53 4.53
Lb/h 171 143 129 122 117 111 96.4
Btu/h 15200 12700 11100 10100 9360 8480 7110
Watts 731 751 791 841 896 947 987
Amps 4.02 3.98 4.10 4.29 4.50 4.65 4.67
Lb/h 187 158 143 136 131 124 110
Btu/h 16700 14100 12400 11300 10500 9560 8140
Watts 730 756 801 858 920 979 1030
Amps 4.00 4.00 4.15 4.37 4.60 4.77 4.82
Lb/h 204 175 159 151 146 139 125
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 9.336245E+04 1.996813E+03 2.013917E+01 1.289148E+03
C2 3.195227E+02 1.292645E+01 -3.817472E-03 3.707337E+00
C3 -2.333489E+03 -4.235420E+01 -4.513760E-01 -3.270738E+01
C4 1.568006E+00 -2.804499E-01 -1.490432E-03 1.007389E-02
C5 -3.014385E+00 -6.772678E-02 8.899004E-04 -3.446765E-02
C6 2.025628E+01 4.004015E-01 3.945648E-03 2.872581E-01
C7 1.362058E-02 1.573715E-03 1.040382E-05 1.688852E-04
C8 -1.257880E-02 4.845544E-04 2.134586E-06 -8.240018E-05
C9 1.197996E-02 7.262169E-04 -2.470369E-06 1.582110E-04
C10 -5.954681E-02 -1.252189E-03 -1.144388E-05 -8.497823E-04
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
