Tecumseh AKA9430ZNADA, AKA9430ZNADC, AKA9430ZNADG, AKA9430ZNADH, AKA9430ZNADJ Performance Data Sheet
...
January 23, 2013
Model
Dimensions, inches
Line Connection*
Pumpdown
Air
Oil Ch
Gr. Wt.
L W H
CH
Suction
Liquid
90 F 90%
SCFM
Oz.
Lbs.
AKA9430ZNADA
15.0
14.0
11.2
10.1
3/8” S
1/4” S
N/A
185
17
52
AKA9430ZNADG
3/8” S
3/8” S
2.2 lbs
54
AKA9430ZNADH
3/8” S
3/8” S
N/A
52
AKA9430ZNADK
3/8” S
1/4” S
52
AKA9430ZNADC
3/8” S
3/8” S
2.2 lbs
54
AKA9430ZNADS
3/8” S
3/8” S
N/A
52
AKA9430ZNADJ
3/8” S
3/8” S
2.2 lbs
54
AKA9430ZNADP
3/8” S
3/8” S
2.2 lbs
54
* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting
Factory charge: 20 PSIG Nitrogen – MUST BE EVACUATED
Ambient Temperatures
Evaporator T,
80°F
90°F
100°F
110°F
°F
PSIG
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
0
33.4
2329
510
100
1967
511
108
1595
479
115
1183
438
122
10
43.9
2882
577
105
2505
585
113
2092
570
121
1724
548
128
15
49.8
3199
612
108
2792
624
116
2370
615
123
1992
601
131
20
56.1
3541
650
111
3091
665
119
2668
661
126
2260
653
134
25
62.9
3910
689
114
3401
707
122
2985
707
129
2527
703
137
30
70.2
4305
729
117
3724
750
125
3322
753
132
2793
752
139
35
77.9
4727
771
121
4058
794
128
3678
800
135
3058
799
142
40
87.0
5175
815
124
4404
840
131
4055
847
138
3322
845
145
45
95.1
5649
860
128
4762
887
134
4451
894
141
3584
890
148
50
106.2
6150
907
131
5131
935
138
4866
941
144
3846
933
151
Revision: REL
Celseon® Air Cooled Condensing Unit
Model: AKA9430ZNAD*
BoM: 2G302-** R-404a 1/3 HP
60 Hz Performance
Return gas temp. 40F, 5F sub cooling
Specifications/ Parts:
Unit Model
AKA9430ZNADA
Unit Model
AKA9430ZNADG
Unit Bill of Material
2G302-09
Unit Bill of Material
2G302-19
Refrigeration Range
-10° F to +45° F
Receiver Tank
510-10000
Design Pressure Low
181
Liquid Valve
56630
Design Pressure High
450
Suction Valve
56630
Nominal Volts-Hz-Ph
208/230-60-1
Voltage Range
187 to 254
Unit Model
AKA9430ZNADH
Min. Circuit Ampacity
5.0
Unit Bill of Material
2G302-29
Max. Fuse Size (amps)
15
Liquid Valve
56630
Suction Valve
56630
Compressor Model
AKA9427ZXD
Comp. Bill of Material
AK174ET-037-P2
Unit Model
AKA9430ZNADK
Compressor RLA/LRA
3.8/23
Unit Bill of Material
2G302-39
Overload
External
Power Cord
85259-5
Relay
82484-1
Run Capacitor
N/A
Unit Model
AKA9430ZNADC
Run Capacitor Rating
N/A
Unit Bill of Material
2G302-59
Start Capacitor
85PS330D12
Receiver Tank
510-10000
Start Capacitor Rating
72-88 MFD 330V VDE
Liquid Valve
56630
Suction Valve
56630
Fan Motor
810-10000
Power Cord
85259-5
Fan Motor RLA
.29 Fan Blade
515-10002
Unit Model
AKA9430ZNADS
Fan Shroud/Guard Combo
707-00004
Unit Bill of Material
2G302-69
Condenser
506-10004
Liquid Valve
56630
Suction Valve
56630
Unit Drawing
DGU1970-03
Power Cord
85259-5

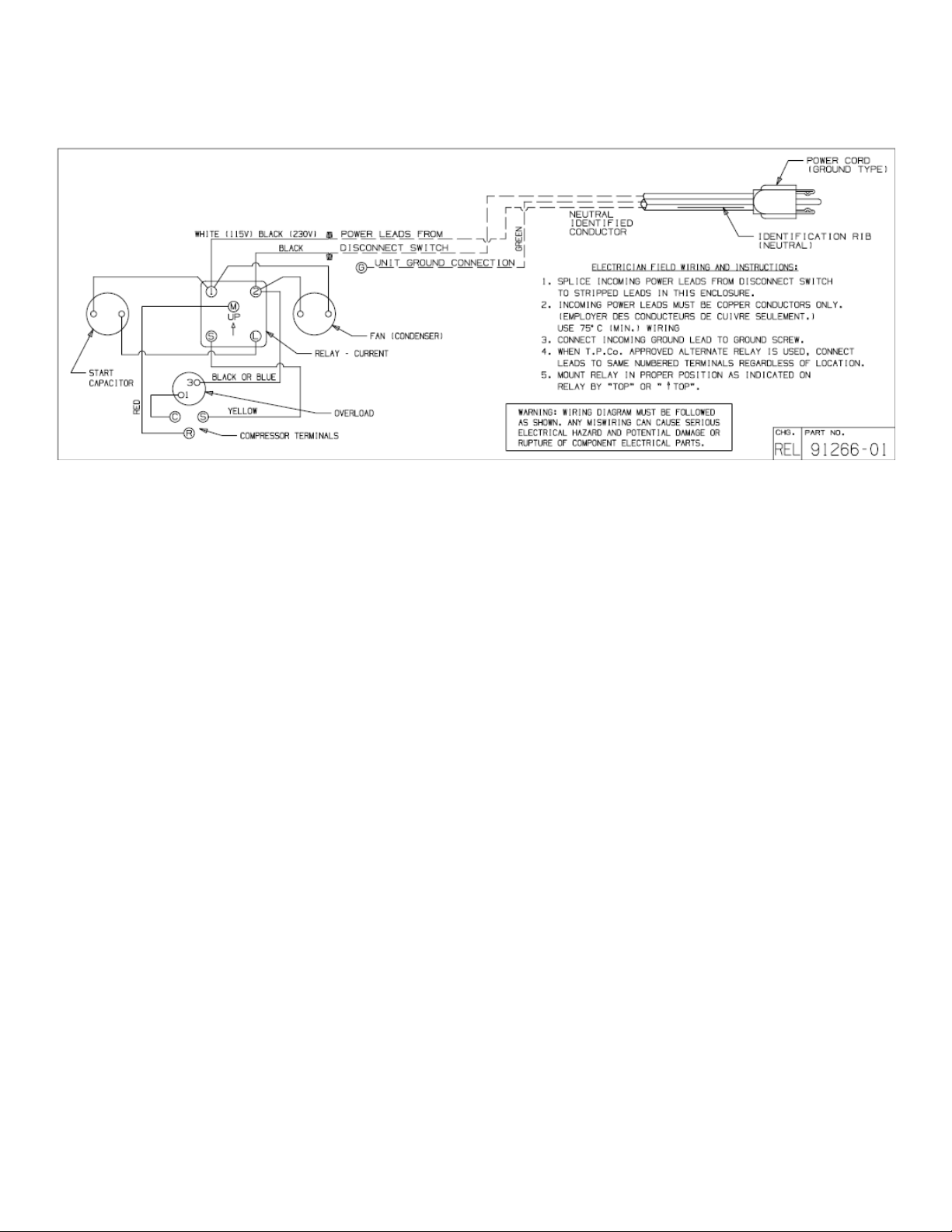

Wiring Diagram
91266-01
Unit Model
AKA9430ZNADJ
Replacement Kit: Relay
K71-32
Unit Bill of Material
2G302-79
Replacement kit: O/L
K90-09
Receiver Tank
510-10000
Liquid Valve
56630
Suction Valve
56630
Filter Drier
71116
Sight Glass
70084
Unit Model
AKA9430ZNADP
Unit Bill of Material
2G302-89
Receiver Tank
510-10000
Liquid Valve
56630
Suction Valve
56630
Power Cord
85259-5
Filter Drier
71116
Sight Glass
70084
January 23, 2013
Revision: REL
