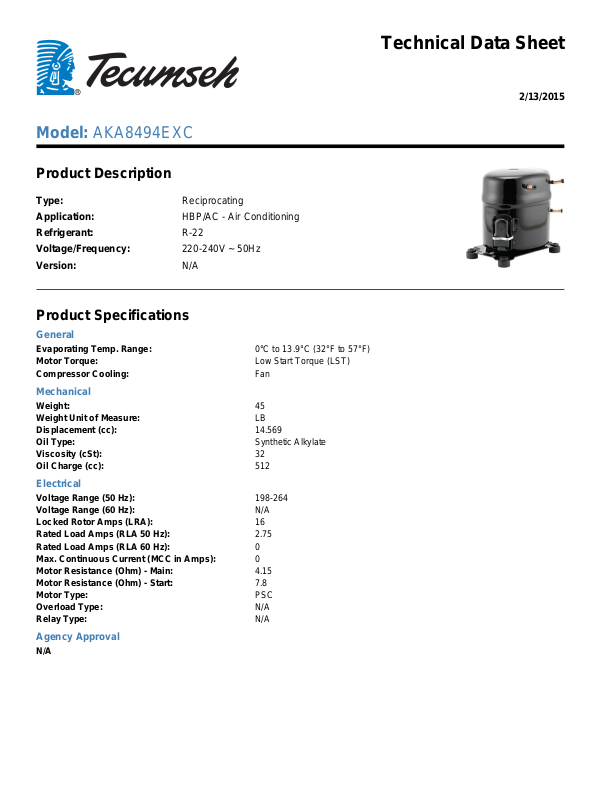

Tecumseh AKA8494EXC Technical Data Sheet

Model: AKA8494EXC

Product Description

Type: Reciprocating
Application: HBP/AC - Air Conditioning
Refrigerant: R-22
Voltage/Frequency: 220-240V ~ 50Hz
Version: N/A

Product Specifications

General

Evaporating Temp. Range: 0°C to 13.9°C (32°F to 57°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Technical Data Sheet

2/13/2015

Mechanical

Weight: 45
Weight Unit of Measure: LB
Displacement (cc): 14.569
Oil Type: Synthetic Alkylate
Viscosity (cSt): 32
Oil Charge (cc): 512

Electrical

Voltage Range (50 Hz): 198-264
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 16
Rated Load Amps (RLA 50 Hz): 2.75
Rated Load Amps (RLA 60 Hz): 0
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: 4.15
Motor Resistance (Ohm) - Start: 7.8
Motor Type: PSC
Overload Type: N/A
Relay Type: N/A

Agency Approval

N/A
