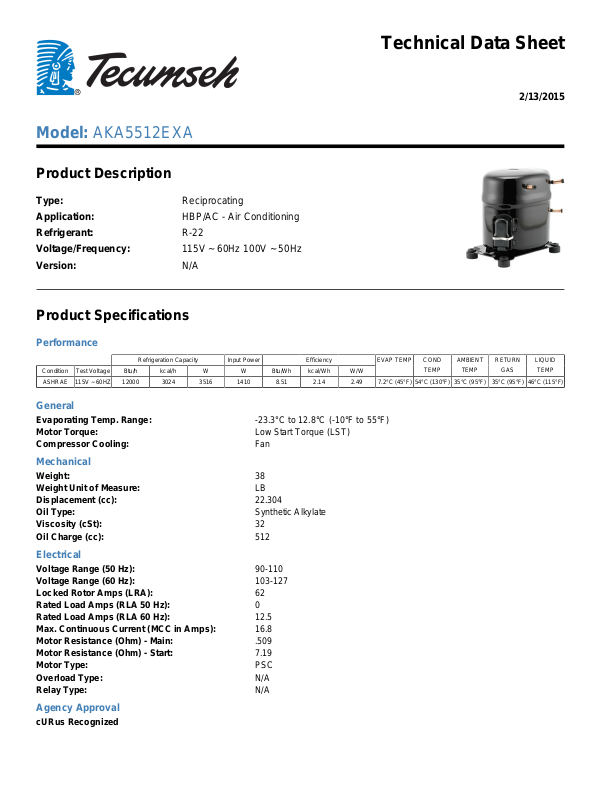

Tecumseh AKA5512EXA Technical Data Sheet

Model: AKA5512EXA

Product Description

Type: Reciprocating
Application: HBP/AC - Air Conditioning
Refrigerant: R-22
Voltage/Frequency: 115V ~ 60Hz 100V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 115V ~ 60HZ 12000 3024 3516 1410 8.51 2.14 2.49 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

General

Evaporating Temp. Range: -23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Mechanical

Weight: 38
Weight Unit of Measure: LB
Displacement (cc): 22.304
Oil Type: Synthetic Alkylate
Viscosity (cSt): 32
Oil Charge (cc): 512

Electrical

Voltage Range (50 Hz): 90-110
Voltage Range (60 Hz): 103-127
Locked Rotor Amps (LRA): 62
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 12.5
Max. Continuous Current (MCC in Amps): 16.8
Motor Resistance (Ohm) - Main: .509
Motor Resistance (Ohm) - Start: 7.19
Motor Type: PSC
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
