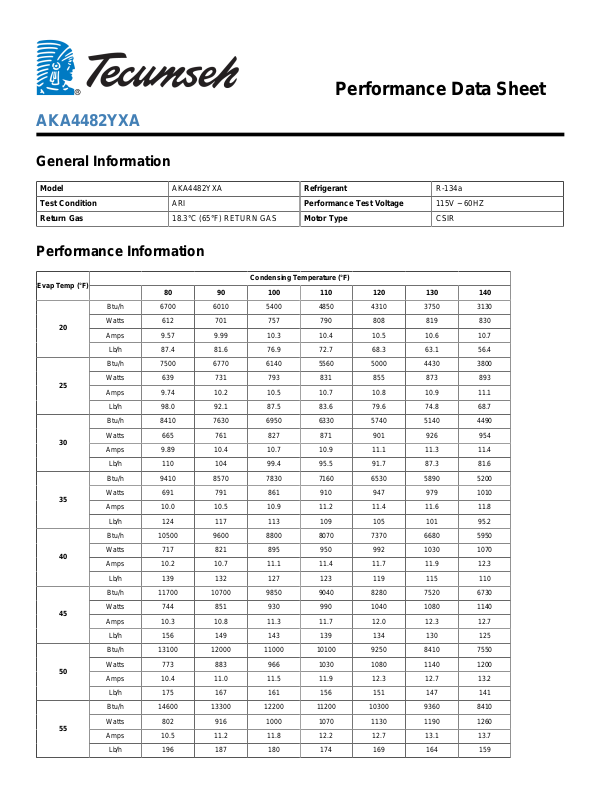

Tecumseh AKA4482YXA Performance Data Sheet
Performance Data Sheet
AKA4482YXA
General Information
Model AKA4482YXA Refrigerant R-134a
Test Condition ARI Performance Test Voltage 115V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSIR
Performance Information
Evap Temp (°F)
20
25
30
35
40
45
50
55
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 6700 6010 5400 4850 4310 3750 3130
Watts 612 701 757 790 808 819 830
Amps 9.57 9.99 10.3 10.4 10.5 10.6 10.7
Lb/h 87.4 81.6 76.9 72.7 68.3 63.1 56.4
Btu/h 7500 6770 6140 5560 5000 4430 3800
Watts 639 731 793 831 855 873 893
Amps 9.74 10.2 10.5 10.7 10.8 10.9 11.1
Lb/h 98.0 92.1 87.5 83.6 79.6 74.8 68.7
Btu/h 8410 7630 6950 6330 5740 5140 4490
Watts 665 761 827 871 901 926 954
Amps 9.89 10.4 10.7 10.9 11.1 11.3 11.4
Lb/h 110 104 99.4 95.5 91.7 87.3 81.6
Btu/h 9410 8570 7830 7160 6530 5890 5200
Watts 691 791 861 910 947 979 1010
Amps 10.0 10.5 10.9 11.2 11.4 11.6 11.8
Lb/h 124 117 113 109 105 101 95.2
Btu/h 10500 9600 8800 8070 7370 6680 5950
Watts 717 821 895 950 992 1030 1070
Amps 10.2 10.7 11.1 11.4 11.7 11.9 12.3
Lb/h 139 132 127 123 119 115 110
Btu/h 11700 10700 9850 9040 8280 7520 6730
Watts 744 851 930 990 1040 1080 1140
Amps 10.3 10.8 11.3 11.7 12.0 12.3 12.7
Lb/h 156 149 143 139 134 130 125
Btu/h 13100 12000 11000 10100 9250 8410 7550
Watts 773 883 966 1030 1080 1140 1200
Amps 10.4 11.0 11.5 11.9 12.3 12.7 13.2
Lb/h 175 167 161 156 151 147 141
Btu/h 14600 13300 12200 11200 10300 9360 8410
Watts 802 916 1000 1070 1130 1190 1260
Amps 10.5 11.2 11.8 12.2 12.7 13.1 13.7
Lb/h 196 187 180 174 169 164 159
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 1.649079E+04 -2.374913E+03 -5.527038E+00 2.200237E+02
C2 9.736102E+01 6.985740E+00 1.071595E-01 8.755292E-01
C3 -2.721628E+02 7.103112E+01 3.468986E-01 -3.984070E+00
C4 3.499798E+00 -4.891703E-02 -1.771413E-03 4.317659E-02
C5 -6.279201E-01 -6.694938E-02 -9.087453E-04 -7.727947E-03
C6 2.003751E+00 -5.514730E-01 -2.680030E-03 3.333045E-02
C7 6.605226E-03 6.322281E-04 7.661718E-06 1.378952E-04
C8 -2.560539E-02 -1.617848E-04 9.724287E-06 -2.978273E-04
C9 6.021351E-03 8.744144E-04 5.139931E-06 1.220068E-04
C10 -6.232147E-03 1.384171E-03 6.807080E-06 -1.109738E-04
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
