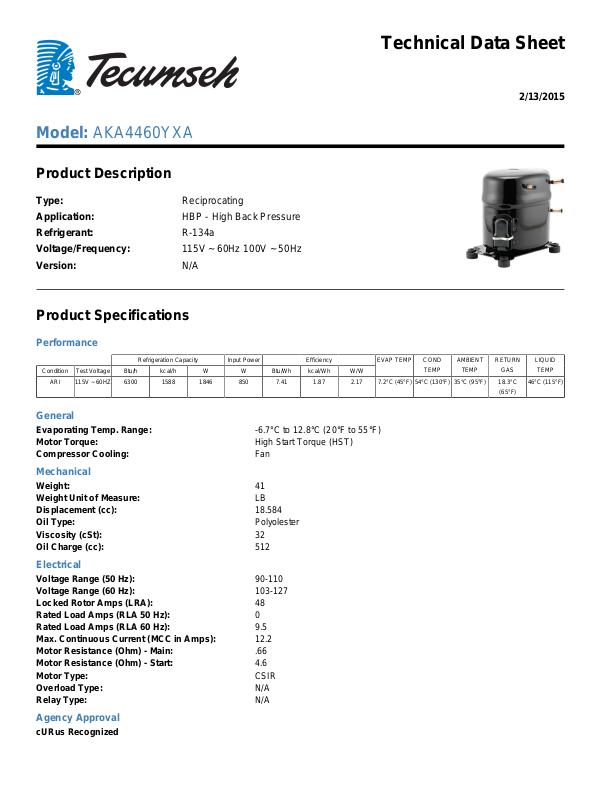

Tecumseh AKA4460YXA Technical Data Sheet

Model: AKA4460YXA

Product Description

Type: Reciprocating
Application: HBP - High Back Pressure
Refrigerant: R-134a
Voltage/Frequency: 115V ~ 60Hz 100V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency

Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W

ARI 115V ~ 60HZ 6300 1588 1846 850 7.41 1.87 2.17 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 18.3°C

EVAP TEMP COND

TEMP

AMBIENT

TEMP

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 41
Weight Unit of Measure: LB
Displacement (cc): 18.584
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 512

Electrical

Voltage Range (50 Hz): 90-110
Voltage Range (60 Hz): 103-127
Locked Rotor Amps (LRA): 48
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 9.5
Max. Continuous Current (MCC in Amps): 12.2
Motor Resistance (Ohm) - Main: .66
Motor Resistance (Ohm) - Start: 4.6
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

RETURN

GAS

(65°F)

LIQUID

TEMP

46°C (115°F)

Agency Approval

cURus Recognized
