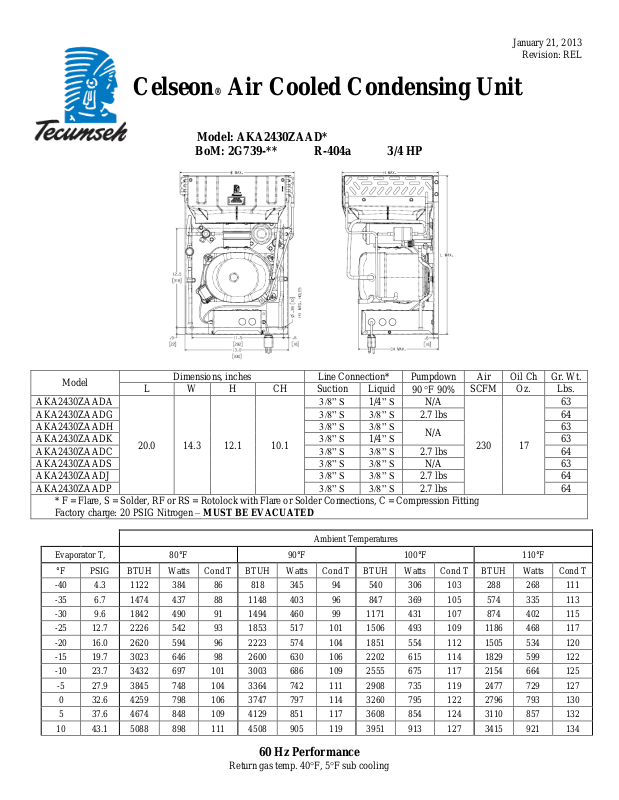

Tecumseh AKA2430ZAADA, AKA2430ZAADC, AKA2430ZAADG, AKA2430ZAADH, AKA2430ZAADJ Performance Data Sheet
...
January 21, 2013
Model
Dimensions, inches
Line Connection*
Pumpdown
Air
Oil Ch
Gr. Wt.
L W H
CH
Suction
Liquid
90 F 90%
SCFM
Oz.
Lbs.
AKA2430ZAADA
20.0
14.3
12.1
10.1
3/8” S
1/4” S
N/A
230
17
63
AKA2430ZAADG
3/8” S
3/8” S
2.7 lbs
64
AKA2430ZAADH
3/8” S
3/8” S
N/A
63
AKA2430ZAADK
3/8” S
1/4” S
63
AKA2430ZAADC
3/8” S
3/8” S
2.7 lbs
64
AKA2430ZAADS
3/8” S
3/8” S
N/A
63
AKA2430ZAADJ
3/8” S
3/8” S
2.7 lbs
64
AKA2430ZAADP
3/8” S
3/8” S
2.7 lbs
64
* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting
Factory charge: 20 PSIG Nitrogen – MUST BE EVACUATED
Ambient Temperatures
Evaporator T,
80°F
90°F
100°F
110°F
°F
PSIG
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
-40
4.3
1122
384
86
818
345
94
540
306
103
288
268
111
-35
6.7
1474
437
88
1148
403
96
847
369
105
574
335
113
-30
9.6
1842
490
91
1494
460
99
1171
431
107
874
402
115
-25
12.7
2226
542
93
1853
517
101
1506
493
109
1186
468
117
-20
16.0
2620
594
96
2223
574
104
1851
554
112
1505
534
120
-15
19.7
3023
646
98
2600
630
106
2202
615
114
1829
599
122
-10
23.7
3432
697
101
3003
686
109
2555
675
117
2154
664
125
-5
27.9
3845
748
104
3364
742
111
2908
735
119
2477
729
127 0 32.6
4259
798
106
3747
797
114
3260
795
122
2796
793
130 5 37.6
4674
848
109
4129
851
117
3608
854
124
3110
857
132
10
43.1
5088
898
111
4508
905
119
3951
913
127
3415
921
134
Celseon® Air Cooled Condensing Unit
Model: AKA2430ZAAD*
BoM: 2G739-** R-404a 3/4 HP
Revision: REL
60 Hz Performance
Return gas temp. 40F, 5F sub cooling
Specifications/ Parts:
Unit Model
AKA2430ZAADA
Unit Model
AKA2430ZAADG
Unit Bill of Material
2G739-09
Unit Bill of Material
2G739-19
Refrigeration Range
-40° F to +10° F
Receiver Tank
510-10000
Design Pressure Low
181
Liquid Valve
56630
Design Pressure High
450
Suction Valve
56630
Nominal Volts-Hz-Ph
115-60-1
Voltage Range
103 to 127
Unit Model
AKA2430ZAADH
Min. Circuit Ampacity
9.1
Unit Bill of Material
2G739-29
Max. Fuse Size (amps)
15
Liquid Valve
56630
Suction Valve
56630
Compressor Model
AKA2425ZXA
Comp. Bill of Material
AK176AT-037-P2
Unit Model
AKA2430ZAADK
Compressor RLA/LRA
6.3/40
Unit Bill of Material
2G739-39
Overload
External
Power Cord
85106-14
Relay
820ARR3K42
Run Capacitor
85PR370F17
Unit Model
AKA2430ZAADC
Run Capacitor Rating
35 MFD 370V(M) VDE
Unit Bill of Material
2G739-59
Start Capacitor
85PS330D15
Receiver Tank
510-10000
Start Capacitor Rating
124-149 MFD 330V VDE
Liquid Valve
56630
Suction Valve
56630
Fan Motor
810-10003
Power Cord
85106-14
Fan Motor RLA
.85 Fan Blade
515-10003
Unit Model
AKA2430ZAADS
Fan Shroud/Guard Combo
707-00005
Unit Bill of Material
2G739-69
Condenser
506-10008
Liquid Valve
56630
Suction Valve
56630
Unit Drawing
DGU1970-04
Power Cord
85106-14
Wiring Diagram
91266-02
Unit Model
AKA2430ZAADJ
Replacement Kit: Relay
K90-63
Unit Bill of Material
2G739-79
Replacement Kit: O/L
K71-43
Receiver Tank
510-10000
Liquid Valve
56630
Suction Valve
56630
Filter Drier
71116
Sight Glass
70084
Unit Model
AKA2430ZAADP
Unit Bill of Material
2G739-89
Receiver Tank
510-10000
Liquid Valve
56630
Suction Valve
56630
Power Cord
85106-14
Filter Drier
71116
Sight Glass
70084
January 21, 2013
Revision: REL
