Tecumseh AK4510Z-XA3B User Manual

Model: AK4510Z-XA3B

Product Description

Type: Reciprocating
Application: HBP/CBP - High/Commercial

Back Pressure

Refrigerant: R-404A
Voltage/Frequency: 115V ~ 60Hz 100V ~ 50Hz
Version: N/A

Product Specifications

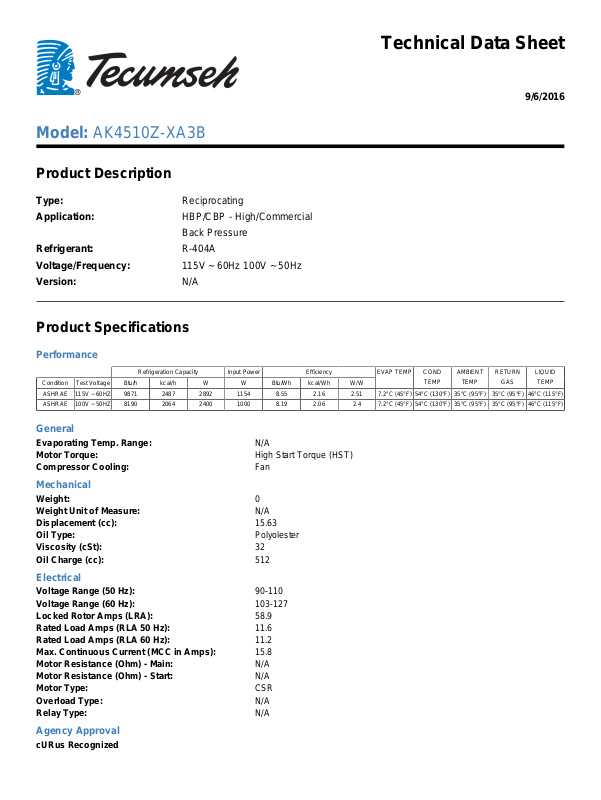

Technical Data Sheet

9/6/2016

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 115V ~ 60HZ 9871 2487 2892 1154 8.55 2.16 2.51 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)
ASHRAE 100V ~ 50HZ 8190 2064 2400 1000 8.19 2.06 2.4 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

General

Evaporating Temp. Range: N/A
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 0
Weight Unit of Measure: N/A
Displacement (cc): 15.63
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 512

Electrical

Voltage Range (50 Hz): 90-110
Voltage Range (60 Hz): 103-127
Locked Rotor Amps (LRA): 58.9
Rated Load Amps (RLA 50 Hz): 11.6
Rated Load Amps (RLA 60 Hz): 11.2
Max. Continuous Current (MCC in Amps): 15.8
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
