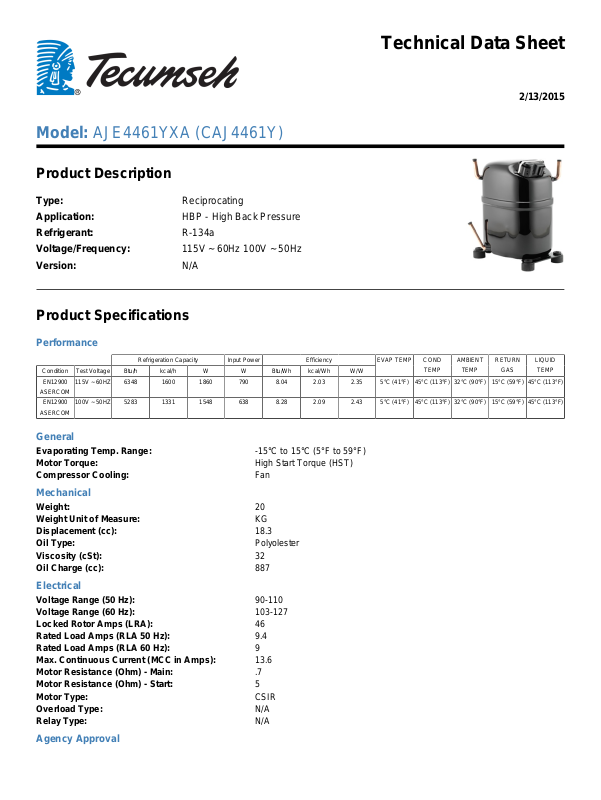

Tecumseh AJE4461YXA Technical Data Sheet

Model: AJE4461YXA (CAJ4461Y)

Product Description

Type: Reciprocating
Application: HBP - High Back Pressure
Refrigerant: R-134a
Voltage/Frequency: 115V ~ 60Hz 100V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
EN12900

ASERCOM

EN12900

ASERCOM

115V ~ 60HZ 6348 1600 1860 790 8.04 2.03 2.35 5°C (41°F) 45°C (113°F) 32°C (90°F) 15°C (59°F) 45°C (113°F)

100V ~ 50HZ 5283 1331 1548 638 8.28 2.09 2.43 5°C (41°F) 45°C (113°F) 32°C (90°F) 15°C (59°F) 45°C (113°F)

General

Evaporating Temp. Range: -15°C to 15°C (5°F to 59°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 20
Weight Unit of Measure: KG
Displacement (cc): 18.3
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 887

Electrical

Voltage Range (50 Hz): 90-110
Voltage Range (60 Hz): 103-127
Locked Rotor Amps (LRA): 46
Rated Load Amps (RLA 50 Hz): 9.4
Rated Load Amps (RLA 60 Hz): 9
Max. Continuous Current (MCC in Amps): 13.6
Motor Resistance (Ohm) - Main: .7
Motor Resistance (Ohm) - Start: 5
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

CE Listed, GOST RUSSIA Listed, SASO Listed, UL
Recognized
