Model: AJE2422ZXA (CAJ2432Z)
Product Description
Type: Reciprocating
Application: LBP - Low Back Pressure
Refrigerant: R-404A
Voltage/Frequency: 115V ~ 60Hz 100V ~ 50Hz
Version: N/A
Product Specifications

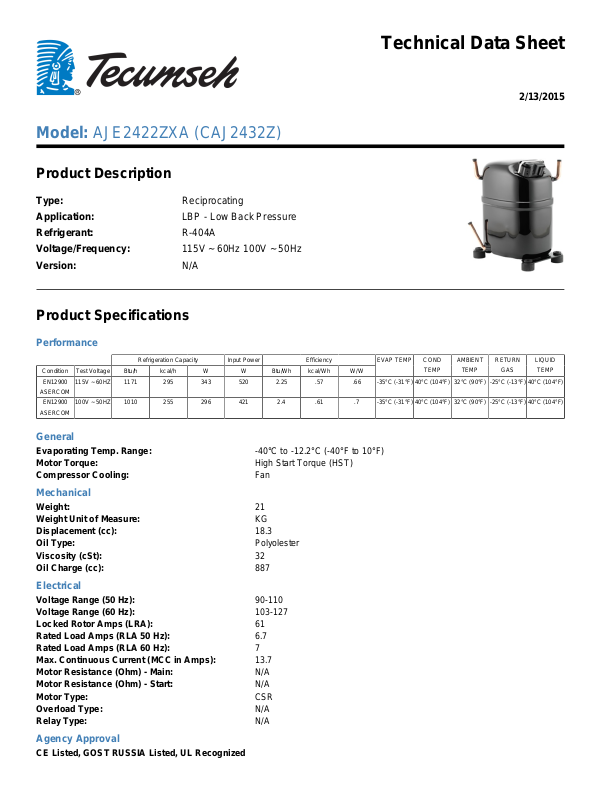

Technical Data Sheet
2/13/2015
Performance
Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
EN12900
ASERCOM
EN12900
ASERCOM
115V ~ 60HZ 1171 295 343 520 2.25 .57 .66 -35°C (-31°F) 40°C (104°F) 32°C (90°F) -25°C (-13°F) 40°C (104°F)
100V ~ 50HZ 1010 255 296 421 2.4 .61 .7 -35°C (-31°F) 40°C (104°F) 32°C (90°F) -25°C (-13°F) 40°C (104°F)
General
Evaporating Temp. Range: -40°C to -12.2°C (-40°F to 10°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan
Mechanical
Weight: 21
Weight Unit of Measure: KG
Displacement (cc): 18.3
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 887
Electrical
Voltage Range (50 Hz): 90-110
Voltage Range (60 Hz): 103-127
Locked Rotor Amps (LRA): 61
Rated Load Amps (RLA 50 Hz): 6.7
Rated Load Amps (RLA 60 Hz): 7
Max. Continuous Current (MCC in Amps): 13.7
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A
EVAP TEMP COND
TEMP
AMBIENT
TEMP
RETURN
GAS
LIQUID
TEMP
Agency Approval
CE Listed, GOST RUSSIA Listed, UL Recognized
