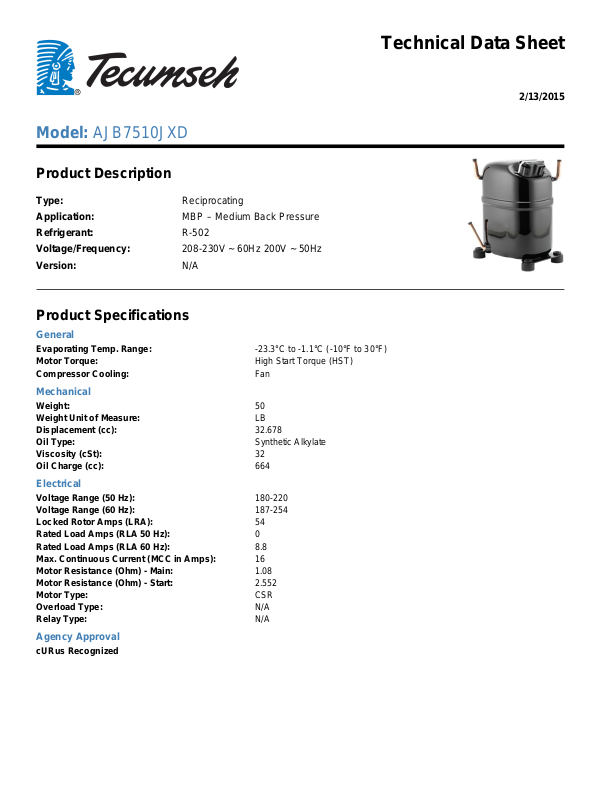

Tecumseh AJB7510JXD Technical Data Sheet

Model: AJB7510JXD

Product Description

Type: Reciprocating
Application: MBP – Medium Back Pressure
Refrigerant: R-502
Voltage/Frequency: 208-230V ~ 60Hz 200V ~ 50Hz
Version: N/A

Product Specifications

General

Evaporating Temp. Range: -23.3°C to -1.1°C (-10°F to 30°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Technical Data Sheet

2/13/2015

Mechanical

Weight: 50
Weight Unit of Measure: LB
Displacement (cc): 32.678
Oil Type: Synthetic Alkylate
Viscosity (cSt): 32
Oil Charge (cc): 664

Electrical

Voltage Range (50 Hz): 180-220
Voltage Range (60 Hz): 187-254
Locked Rotor Amps (LRA): 54
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 8.8
Max. Continuous Current (MCC in Amps): 16
Motor Resistance (Ohm) - Main: 1.08
Motor Resistance (Ohm) - Start: 2.552
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
