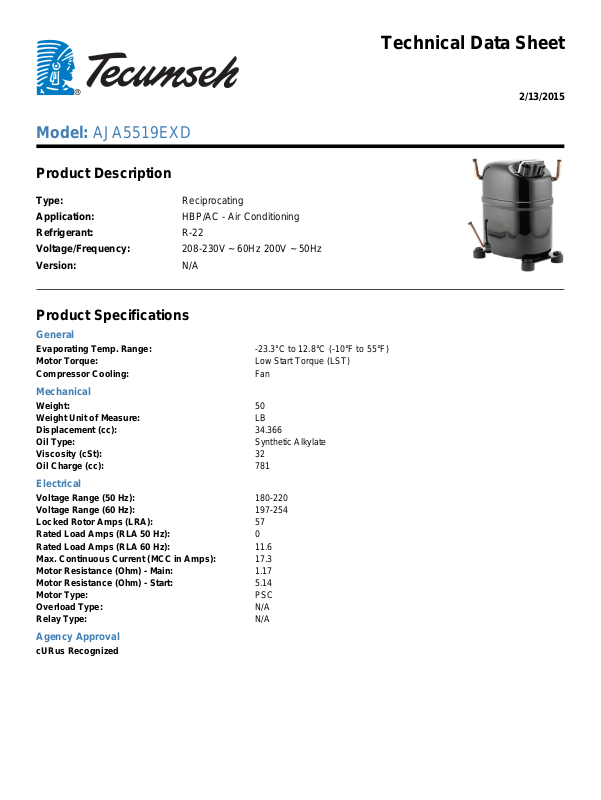

Tecumseh AJA5519EXD Technical Data Sheet

Model: AJA5519EXD

Product Description

Type: Reciprocating
Application: HBP/AC - Air Conditioning
Refrigerant: R-22
Voltage/Frequency: 208-230V ~ 60Hz 200V ~ 50Hz
Version: N/A

Product Specifications

General

Evaporating Temp. Range: -23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Technical Data Sheet

2/13/2015

Mechanical

Weight: 50
Weight Unit of Measure: LB
Displacement (cc): 34.366
Oil Type: Synthetic Alkylate
Viscosity (cSt): 32
Oil Charge (cc): 781

Electrical

Voltage Range (50 Hz): 180-220
Voltage Range (60 Hz): 197-254
Locked Rotor Amps (LRA): 57
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 11.6
Max. Continuous Current (MCC in Amps): 17.3
Motor Resistance (Ohm) - Main: 1.17
Motor Resistance (Ohm) - Start: 5.14
Motor Type: PSC
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
