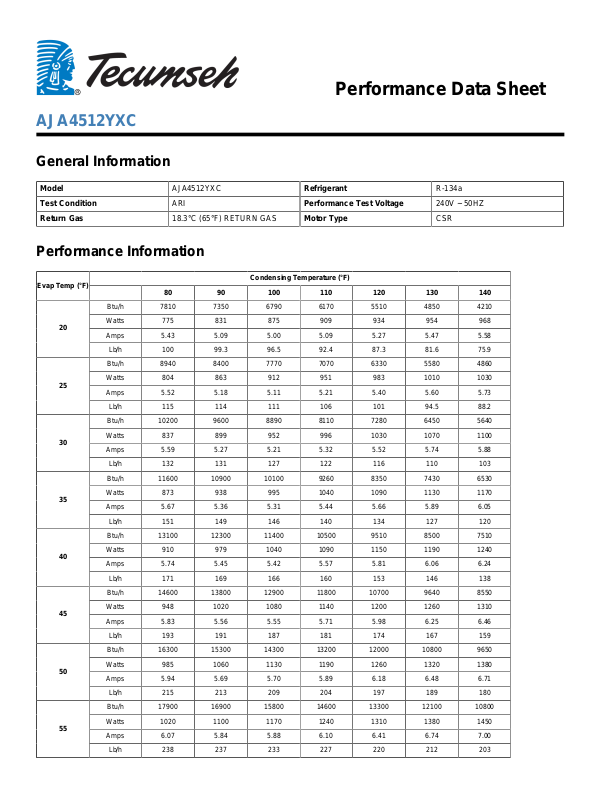

Tecumseh AJA4512YXC Performance Data Sheet

Performance Data Sheet
AJA4512YXC
General Information
Model AJA4512YXC Refrigerant R-134a Test Condition ARI Performance Test Voltage 240V ~ 50HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSR
Performance Information
20
25
30
35
40
45
50
55
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 7810 7350 6790 6170 5510 4850 4210 Watts 775 831 875 909 934 954 968 Amps 5.43 5.09 5.00 5.09 5.27 5.47 5.58
Lb/h 100 99.3 96.5 92.4 87.3 81.6 75.9
Btu/h 8940 8400 7770 7070 6330 5580 4860 Watts 804 863 912 951 983 1010 1030 Amps 5.52 5.18 5.11 5.21 5.40 5.60 5.73
Lb/h 115 114 111 106 101 94.5 88.2
Btu/h 10200 9600 8890 8110 7280 6450 5640 Watts 837 899 952 996 1030 1070 1100 Amps 5.59 5.27 5.21 5.32 5.52 5.74 5.88
Lb/h 132 131 127 122 116 110 103
Btu/h 11600 10900 10100 9260 8350 7430 6530 Watts 873 938 995 1040 1090 1130 1170 Amps 5.67 5.36 5.31 5.44 5.66 5.89 6.05
Lb/h 151 149 146 140 134 127 120
Btu/h 13100 12300 11400 10500 9510 8500 7510 Watts 910 979 1040 1090 1150 1190 1240 Amps 5.74 5.45 5.42 5.57 5.81 6.06 6.24
Lb/h 171 169 166 160 153 146 138
Btu/h 14600 13800 12900 11800 10700 9640 8550 Watts 948 1020 1080 1140 1200 1260 1310 Amps 5.83 5.56 5.55 5.71 5.98 6.25 6.46
Lb/h 193 191 187 181 174 167 159
Btu/h 16300 15300 14300 13200 12000 10800 9650 Watts 985 1060 1130 1190 1260 1320 1380 Amps 5.94 5.69 5.70 5.89 6.18 6.48 6.71
Lb/h 215 213 209 204 197 189 180
Btu/h 17900 16900 15800 14600 13300 12100 10800 Watts 1020 1100 1170 1240 1310 1380 1450 Amps 6.07 5.84 5.88 6.10 6.41 6.74 7.00
Lb/h 238 237 233 227 220 212 203
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 -5.190501E+01 -4.131382E+02 2.672738E+01 -4.568613E+01 C2 1.248002E+02 1.082747E+00 5.678660E-02 1.045243E+00 C3 1.771826E+02 2.519506E+01 -5.855695E-01 3.059177E+00 C4 5.126478E+00 1.973534E-01 -1.348013E-03 5.579057E-02 C5 -6.893449E-01 -9.869237E-02 -2.280206E-04 -1.404295E-03 C6 -1.822064E+00 -1.623945E-01 5.005836E-03 -2.636922E-02 C7 -2.744579E-02 -1.535386E-03 9.187764E-06 -3.436033E-04 C8 -3.265918E-03 -5.836315E-05 5.706739E-06 1.291097E-04 C9 -3.414486E-03 9.846798E-04 7.816272E-07 -6.126342E-05
C10 5.210474E-03 3.069190E-04 -1.382570E-05 6.938897E-05
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
