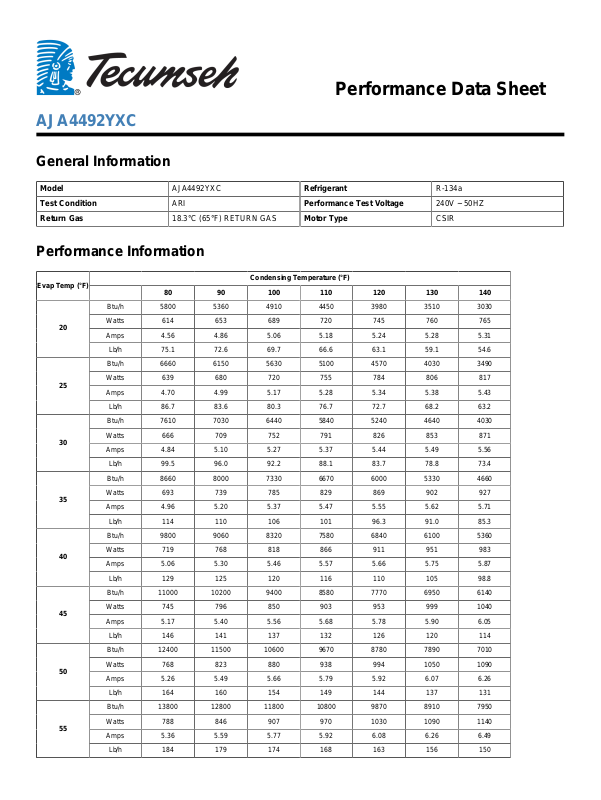

Tecumseh AJA4492YXC Performance Data Sheet

Performance Data Sheet

AJA4492YXC

General Information

Model AJA4492YXC Refrigerant R-134a
Test Condition ARI Performance Test Voltage 240V ~ 50HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type CSIR

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

55

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 5800 5360 4910 4450 3980 3510 3030
Watts 614 653 689 720 745 760 765
Amps 4.56 4.86 5.06 5.18 5.24 5.28 5.31

Lb/h 75.1 72.6 69.7 66.6 63.1 59.1 54.6

Btu/h 6660 6150 5630 5100 4570 4030 3490
Watts 639 680 720 755 784 806 817
Amps 4.70 4.99 5.17 5.28 5.34 5.38 5.43

Lb/h 86.7 83.6 80.3 76.7 72.7 68.2 63.2

Btu/h 7610 7030 6440 5840 5240 4640 4030
Watts 666 709 752 791 826 853 871
Amps 4.84 5.10 5.27 5.37 5.44 5.49 5.56

Lb/h 99.5 96.0 92.2 88.1 83.7 78.8 73.4

Btu/h 8660 8000 7330 6670 6000 5330 4660
Watts 693 739 785 829 869 902 927
Amps 4.96 5.20 5.37 5.47 5.55 5.62 5.71

Lb/h 114 110 106 101 96.3 91.0 85.3

Btu/h 9800 9060 8320 7580 6840 6100 5360
Watts 719 768 818 866 911 951 983
Amps 5.06 5.30 5.46 5.57 5.66 5.75 5.87

Lb/h 129 125 120 116 110 105 98.8

Btu/h 11000 10200 9400 8580 7770 6950 6140
Watts 745 796 850 903 953 999 1040
Amps 5.17 5.40 5.56 5.68 5.78 5.90 6.05

Lb/h 146 141 137 132 126 120 114

Btu/h 12400 11500 10600 9670 8780 7890 7010
Watts 768 823 880 938 994 1050 1090
Amps 5.26 5.49 5.66 5.79 5.92 6.07 6.26

Lb/h 164 160 154 149 144 137 131

Btu/h 13800 12800 11800 10800 9870 8910 7950
Watts 788 846 907 970 1030 1090 1140
Amps 5.36 5.59 5.77 5.92 6.08 6.26 6.49

Lb/h 184 179 174 168 163 156 150

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.241481E+03 3.428978E+02 -8.014753E+00 4.062802E+01
C2 1.974134E+02 4.747033E+00 1.802833E-01 2.582857E+00
C3 -5.858172E+00 -4.373719E-01 2.691858E-01 -1.026786E-01
C4 2.258831E+00 9.854472E-02 -1.349142E-03 1.221443E-02
C5 -1.535769E+00 -1.091677E-01 -2.238036E-03 -1.702849E-02
C6 -7.061055E-02 6.565726E-02 -1.879633E-03 2.374300E-03
C7 -2.242459E-04 -1.193785E-03 3.818088E-06 6.297647E-05
C8 -4.490070E-03 2.499677E-04 9.199773E-06 1.040660E-04
C9 1.881847E-03 8.544351E-04 7.863442E-06 1.148953E-05

C10 -1.583358E-05 -3.541209E-04 4.391558E-06 -1.380679E-05

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
