Model:AJA2425AXC

Product Description

Type: Reciprocating
Application: LBP - Low Back Pressure
Refrigerant: R12
Voltage/Frequency: 220-240V ~ 50HZ

Product Specifications

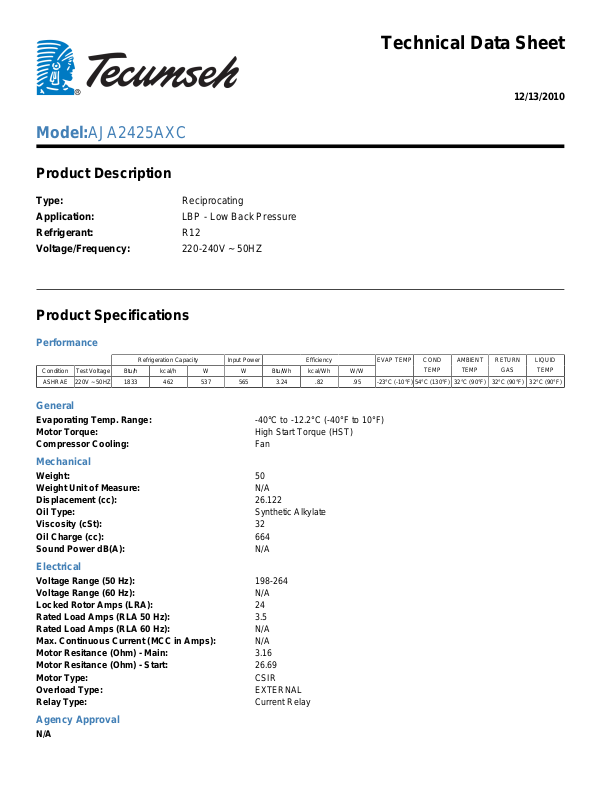

Technical Data Sheet

12/13/2010

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 220V ~ 50HZ 1833 462 537 565 3.24 .82 .95 -23°C (-10°F) 54°C (130°F) 32°C (90°F) 32°C (90°F) 32°C (90°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

General

Evaporating Temp. Range: -40°C to -12.2°C (-40°F to 10°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 50
Weight Unit of Measure: N/A
Displacement (cc): 26.122
Oil Type: Synthetic Alkylate
Viscosity (cSt): 32
Oil Charge (cc): 664
Sound Power dB(A): N/A

Electrical

Voltage Range (50 Hz): 198-264
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 24
Rated Load Amps (RLA 50 Hz): 3.5
Rated Load Amps (RLA 60 Hz): N/A
Max. Continuous Current (MCC in Amps): N/A
Motor Resitance (Ohm) - Main: 3.16
Motor Resitance (Ohm) - Start: 26.69
Motor Type: CSIR
Overload Type: EXTERNAL
Relay Type: Current Relay

Agency Approval

N/A
