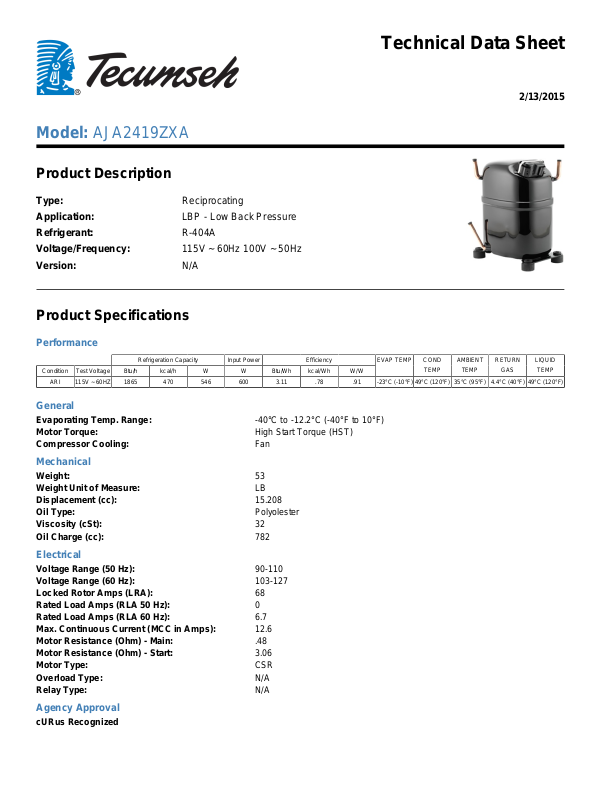

Technical Data Sheet
2/13/2015
Model: AJA2419ZXA
Product Description
Type: |
Reciprocating |
Application: |
LBP - Low Back Pressure |
Refrigerant: |
R-404A |
Voltage/Frequency: |
115V ~ 60Hz 100V ~ 50Hz |
Version: |
N/A |
Product Specifications
Performance
|
|
|
Refrigeration Capacity |
|
Input Power |
|
Efficiency |
|
EVAP TEMP |
COND |
AMBIENT |
RETURN |
LIQUID |
||
|
|
|
|
|
|
|
|
|
|
|
|
TEMP |
TEMP |
GAS |
TEMP |
Condition |
Test Voltage |
Btu/h |
|
kcal/h |
|
W |
W |
Btu/Wh |
kcal/Wh |
W/W |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ARI |
115V ~ 60HZ |
1865 |
|
470 |
|
546 |
600 |
3.11 |
.78 |
.91 |
-23°C (-10°F) |
49°C (120°F) |
35°C (95°F) |
4.4°C (40°F) |
49°C (120°F) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General
Evaporating Temp. Range: |
-40°C to -12.2°C (-40°F to 10°F) |
Motor Torque: |
High Start Torque (HST) |
Compressor Cooling: |
Fan |
Mechanical
Weight: |
53 |
Weight Unit of Measure: |
LB |
Displacement (cc): |
15.208 |
Oil Type: |
Polyolester |
Viscosity (cSt): |
32 |
Oil Charge (cc): |
782 |
Electrical
Voltage Range (50 Hz): |
90-110 |
Voltage Range (60 Hz): |
103-127 |
Locked Rotor Amps (LRA): |
68 |
Rated Load Amps (RLA 50 Hz): |
0 |
Rated Load Amps (RLA 60 Hz): |
6.7 |
Max. Continuous Current (MCC in Amps): |
12.6 |
Motor Resistance (Ohm) - Main: |
.48 |
Motor Resistance (Ohm) - Start: |
3.06 |
Motor Type: |
CSR |
Overload Type: |
N/A |
Relay Type: |
N/A |
Agency Approval
cURus Recognized
