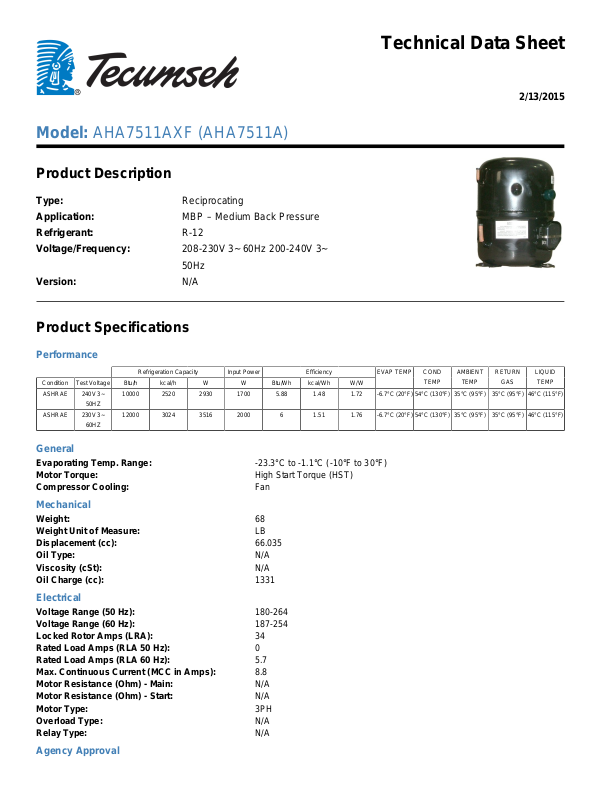

Tecumseh AHA7511AXF Technical Data Sheet

Model: AHA7511AXF (AHA7511A)

Product Description

Type: Reciprocating
Application: MBP – Medium Back Pressure
Refrigerant: R-12
Voltage/Frequency: 208-230V 3~ 60Hz 200-240V 3~

50Hz

Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 240V 3~

50HZ

ASHRAE 230V 3~

60HZ

10000 2520 2930 1700 5.88 1.48 1.72 -6.7°C (20°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

12000 3024 3516 2000 6 1.51 1.76 -6.7°C (20°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

General

Evaporating Temp. Range: -23.3°C to -1.1°C (-10°F to 30°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 68
Weight Unit of Measure: LB
Displacement (cc): 66.035
Oil Type: N/A
Viscosity (cSt): N/A
Oil Charge (cc): 1331

Electrical

Voltage Range (50 Hz): 180-264
Voltage Range (60 Hz): 187-254
Locked Rotor Amps (LRA): 34
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 5.7
Max. Continuous Current (MCC in Amps): 8.8
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

cURus Recognized
