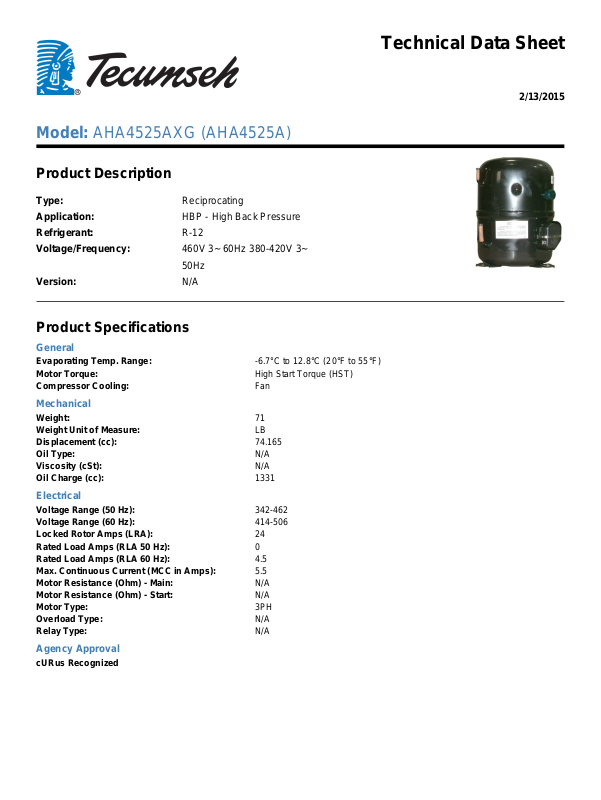

Tecumseh AHA4525AXG Technical Data Sheet

Model: AHA4525AXG (AHA4525A)

Product Description

Type: Reciprocating
Application: HBP - High Back Pressure
Refrigerant: R-12
Voltage/Frequency: 460V 3~ 60Hz 380-420V 3~

50Hz

Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 71
Weight Unit of Measure: LB
Displacement (cc): 74.165
Oil Type: N/A
Viscosity (cSt): N/A
Oil Charge (cc): 1331

Electrical

Voltage Range (50 Hz): 342-462
Voltage Range (60 Hz): 414-506
Locked Rotor Amps (LRA): 24
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 4.5
Max. Continuous Current (MCC in Amps): 5.5
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
