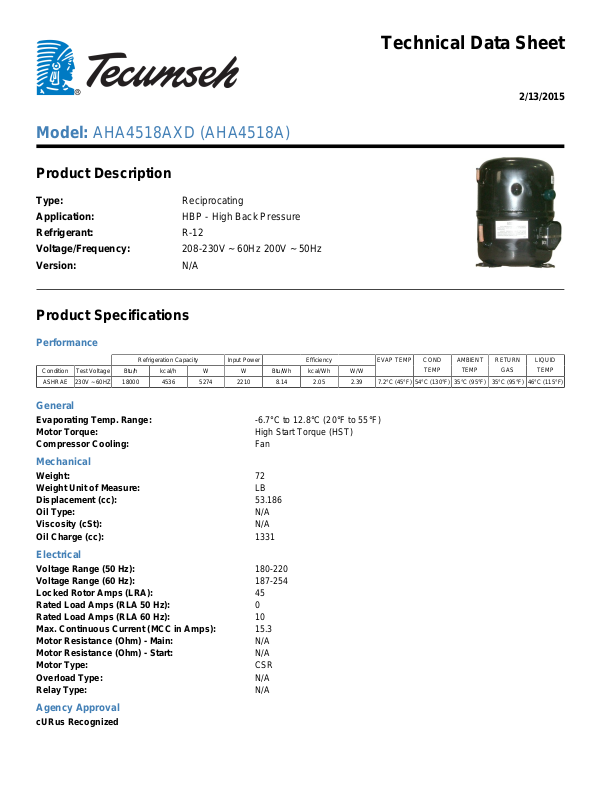

Tecumseh AHA4518AXD Technical Data Sheet

Model: AHA4518AXD (AHA4518A)

Product Description

Type: Reciprocating
Application: HBP - High Back Pressure
Refrigerant: R-12
Voltage/Frequency: 208-230V ~ 60Hz 200V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 230V ~ 60HZ 18000 4536 5274 2210 8.14 2.05 2.39 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 72
Weight Unit of Measure: LB
Displacement (cc): 53.186
Oil Type: N/A
Viscosity (cSt): N/A
Oil Charge (cc): 1331

Electrical

Voltage Range (50 Hz): 180-220
Voltage Range (60 Hz): 187-254
Locked Rotor Amps (LRA): 45
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 10
Max. Continuous Current (MCC in Amps): 15.3
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: CSR
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
