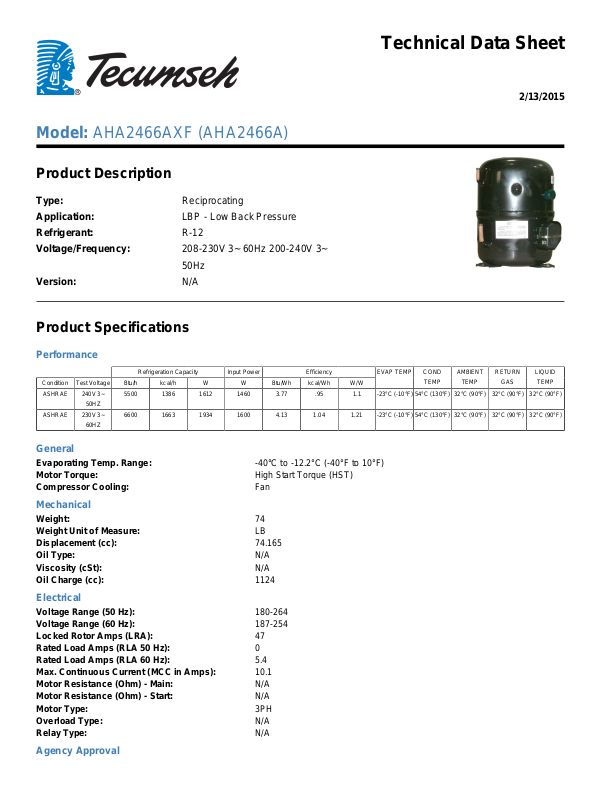

Tecumseh AHA2466AXF Technical Data Sheet

Model: AHA2466AXF (AHA2466A)

Product Description

Type: Reciprocating
Application: LBP - Low Back Pressure
Refrigerant: R-12
Voltage/Frequency: 208-230V 3~ 60Hz 200-240V 3~

50Hz

Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 240V 3~

50HZ

ASHRAE 230V 3~

60HZ

5500 1386 1612 1460 3.77 .95 1.1 -23°C (-10°F) 54°C (130°F) 32°C (90°F) 32°C (90°F) 32°C (90°F)

6600 1663 1934 1600 4.13 1.04 1.21 -23°C (-10°F) 54°C (130°F) 32°C (90°F) 32°C (90°F) 32°C (90°F)

General

Evaporating Temp. Range: -40°C to -12.2°C (-40°F to 10°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 74
Weight Unit of Measure: LB
Displacement (cc): 74.165
Oil Type: N/A
Viscosity (cSt): N/A
Oil Charge (cc): 1124

Electrical

Voltage Range (50 Hz): 180-264
Voltage Range (60 Hz): 187-254
Locked Rotor Amps (LRA): 47
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 5.4
Max. Continuous Current (MCC in Amps): 10.1
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

cURus Recognized
