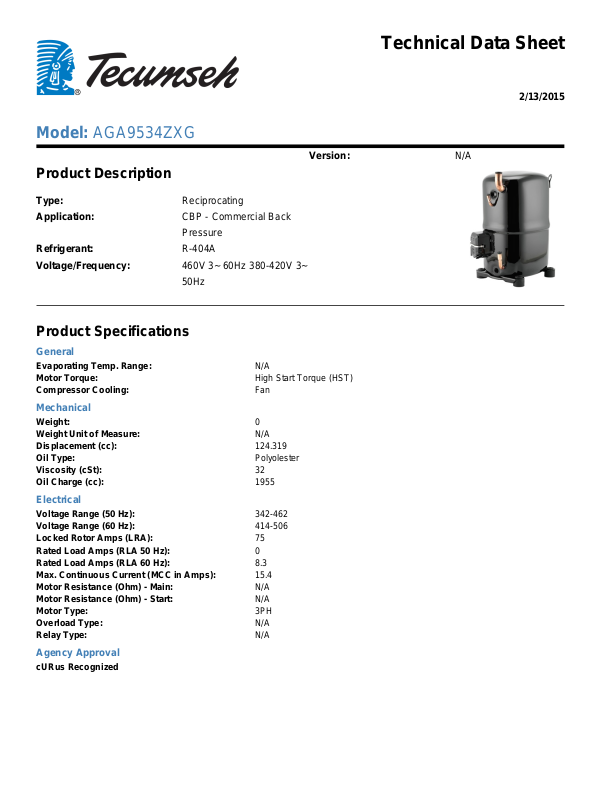

Tecumseh AGA9534ZXG Technical Data Sheet

Model: AGA9534ZXG

Product Description

Type: Reciprocating
Application: CBP - Commercial Back

Pressure

Refrigerant: R-404A
Voltage/Frequency: 460V 3~ 60Hz 380-420V 3~

50Hz

Product Specifications

Technical Data Sheet

2/13/2015

Version: N/A

General

Evaporating Temp. Range: N/A
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 0
Weight Unit of Measure: N/A
Displacement (cc): 124.319
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 1955

Electrical

Voltage Range (50 Hz): 342-462
Voltage Range (60 Hz): 414-506
Locked Rotor Amps (LRA): 75
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 8.3
Max. Continuous Current (MCC in Amps): 15.4
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
