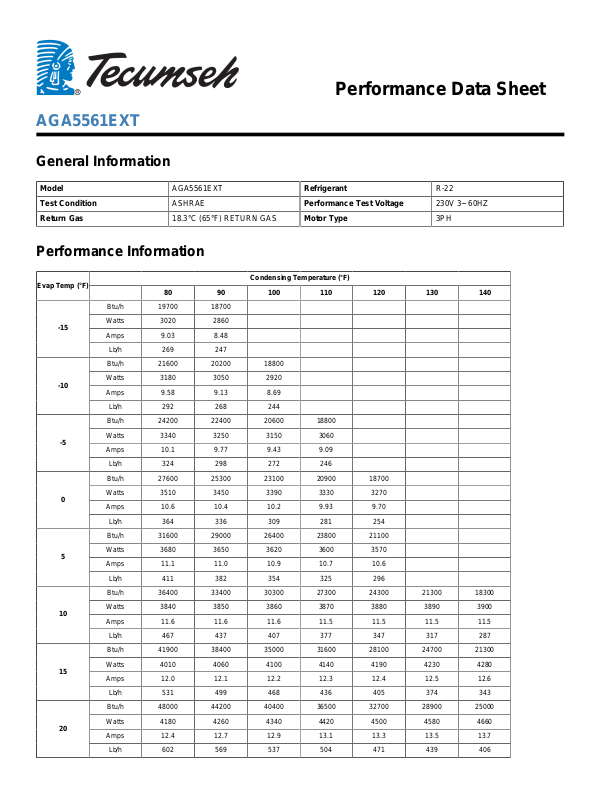

Performance Data Sheet
AGA5561EXT
General Information
Model AGA5561EXT Refrigerant R-22
Test Condition ASHRAE Performance Test Voltage 230V 3~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH
Performance Information
Evap Temp (°F)
-15
-10
-5
0
5
10
15
20
Condensing Temperature (°F)
80 90 100 110 120 130 140
Btu/h 19700 18700
Watts 3020 2860
Amps 9.03 8.48
Lb/h 269 247
Btu/h 21600 20200 18800
Watts 3180 3050 2920
Amps 9.58 9.13 8.69
Lb/h 292 268 244
Btu/h 24200 22400 20600 18800
Watts 3340 3250 3150 3060
Amps 10.1 9.77 9.43 9.09
Lb/h 324 298 272 246
Btu/h 27600 25300 23100 20900 18700
Watts 3510 3450 3390 3330 3270
Amps 10.6 10.4 10.2 9.93 9.70
Lb/h 364 336 309 281 254
Btu/h 31600 29000 26400 23800 21100
Watts 3680 3650 3620 3600 3570
Amps 11.1 11.0 10.9 10.7 10.6
Lb/h 411 382 354 325 296
Btu/h 36400 33400 30300 27300 24300 21300 18300
Watts 3840 3850 3860 3870 3880 3890 3900
Amps 11.6 11.6 11.6 11.5 11.5 11.5 11.5
Lb/h 467 437 407 377 347 317 287
Btu/h 41900 38400 35000 31600 28100 24700 21300
Watts 4010 4060 4100 4140 4190 4230 4280
Amps 12.0 12.1 12.2 12.3 12.4 12.5 12.6
Lb/h 531 499 468 436 405 374 343
Btu/h 48000 44200 40400 36500 32700 28900 25000
Watts 4180 4260 4340 4420 4500 4580 4660
Amps 12.4 12.7 12.9 13.1 13.3 13.5 13.7
Lb/h 602 569 537 504 471 439 406
![](/html/f5/f540/f5400f3b87efe6de255bb83727b5445c71c1728f07cec63c05f81bcd9f5996c0/bg2.png)
Btu/h 54800 50600 46400 42200 37900 33700 29500
25
30
35
40
45
50
55
Watts 4340 4460 4580 4690 4810 4920 5040
Amps 12.8 13.2 13.5 13.8 14.1 14.5 14.8
Lb/h 680 646 613 579 546 512 478
Btu/h 62300 57700 53100 48500 43900 39300 34600
Watts 4510 4660 4810 4970 5120 5270 5420
Amps 13.2 13.6 14.1 14.5 15.0 15.4 15.8
Lb/h 765 731 697 662 628 593 558
Btu/h 70400 65400 60500 55500 50500 45500 40500
Watts 4660 4860 5050 5240 5430 5620 5800
Amps 13.5 14.1 14.6 15.2 15.7 16.3 16.8
Lb/h 858 823 788 753 717 681 645
Btu/h 79100 73800 68500 63100 57800 52400 47000
Watts 4810 5050 5280 5510 5730 5960 6180
Amps 13.7 14.4 15.1 15.8 16.5 17.2 17.8
Lb/h 957 922 886 850 814 777 740
Btu/h 88500 82800 77100 71400 65700 60000 54200
Watts 4960 5230 5500 5770 6040 6300 6560
Amps 14.0 14.8 15.6 16.4 17.2 18.0 18.8
Lb/h 1060 1030 991 954 917 880 843
Btu/h 98400 92400 86400 80400 74300 68200 62000
Watts 5100 5410 5720 6030 6330 6640 6940
Amps 14.1 15.1 16.0 17.0 17.9 18.8 19.7
Lb/h 1170 1140 1100 1070 1030 990 952
Btu/h 96300 89900 83500 77000 70500
Watts 5230 5580 5930 6280 6630 6970 7310
Amps 14.3 15.3 16.4 17.5 18.5 19.6 20.6
Lb/h 1290 1260 1220 1180 1150 1110 1070
COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW
C1 4.573439E+04 4.031312E+03 1.260251E+01 5.900292E+02
C2 1.376375E+03 -2.391434E+01 -8.066041E-02 1.058389E+01
C3 -2.294099E+02 -6.733020E+00 -2.528121E-02 -2.866358E+00
C4 1.300350E+01 -7.043041E-02 -7.187807E-04 1.419904E-01
C5 -7.553126E+00 7.461545E-01 2.354868E-03 -1.719740E-02
C6 1.178373E-02 9.756046E-04 2.886280E-06 1.830983E-04
C7 -1.587222E-02 -1.314101E-03 -3.887706E-06 -2.466263E-04
C8 1.570324E-02 1.300111E-03 3.846316E-06 2.440006E-04
C9 -4.446765E-03 -3.681590E-04 -1.089181E-06 -6.909489E-05
C10 2.129478E-04 1.763049E-05 5.215897E-08 3.308833E-06
Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3
Te = Evaporator Temperature
Tc = Condensing Temperature
