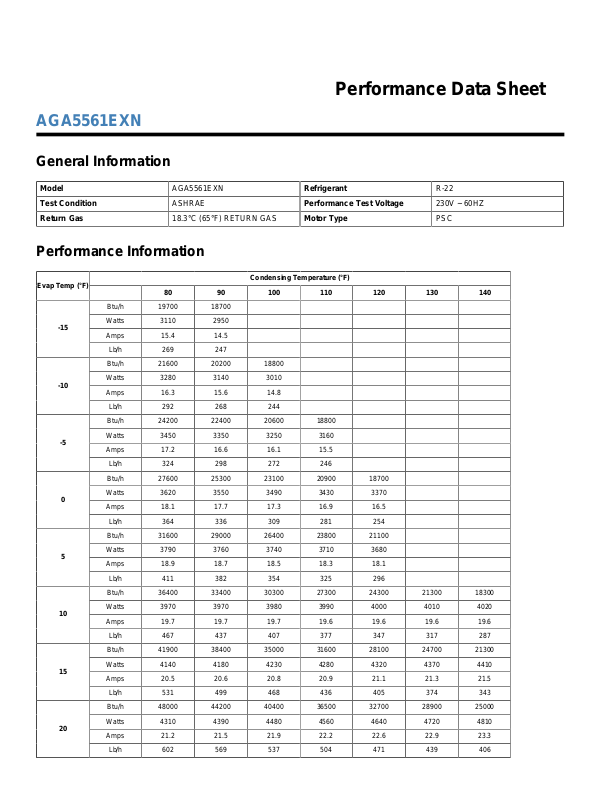

Tecumseh AGA5561EXN Performance Data Sheet

Performance Data Sheet

AGA5561EXN

General Information

Model AGA5561EXN Refrigerant R-22
Test Condition ASHRAE Performance Test Voltage 230V ~ 60HZ
Return Gas 18.3°C (65°F) RETURN GAS Motor Type PSC

Performance Information

Evap Temp (°F)

-15

-10

-5

0

5

10

15

20

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 19700 18700
Watts 3110 2950
Amps 15.4 14.5

Lb/h 269 247

Btu/h 21600 20200 18800
Watts 3280 3140 3010
Amps 16.3 15.6 14.8

Lb/h 292 268 244

Btu/h 24200 22400 20600 18800
Watts 3450 3350 3250 3160
Amps 17.2 16.6 16.1 15.5

Lb/h 324 298 272 246

Btu/h 27600 25300 23100 20900 18700
Watts 3620 3550 3490 3430 3370
Amps 18.1 17.7 17.3 16.9 16.5

Lb/h 364 336 309 281 254

Btu/h 31600 29000 26400 23800 21100
Watts 3790 3760 3740 3710 3680
Amps 18.9 18.7 18.5 18.3 18.1

Lb/h 411 382 354 325 296

Btu/h 36400 33400 30300 27300 24300 21300 18300
Watts 3970 3970 3980 3990 4000 4010 4020
Amps 19.7 19.7 19.7 19.6 19.6 19.6 19.6

Lb/h 467 437 407 377 347 317 287

Btu/h 41900 38400 35000 31600 28100 24700 21300
Watts 4140 4180 4230 4280 4320 4370 4410
Amps 20.5 20.6 20.8 20.9 21.1 21.3 21.5

Lb/h 531 499 468 436 405 374 343

Btu/h 48000 44200 40400 36500 32700 28900 25000
Watts 4310 4390 4480 4560 4640 4720 4810
Amps 21.2 21.5 21.9 22.2 22.6 22.9 23.3

Lb/h 602 569 537 504 471 439 406

Btu/h 54800 50600 46400 42200 37900 33700 29500

25

30

35

40

45

50

55

Watts 4480 4600 4720 4840 4960 5080 5200
Amps 21.8 22.4 22.9 23.5 24.0 24.5 25.1

Lb/h 680 646 613 579 546 512 478

Btu/h 62300 57700 53100 48500 43900 39300 34600
Watts 4650 4810 4970 5130 5280 5440 5590
Amps 22.4 23.1 23.9 24.6 25.4 26.1 26.8

Lb/h 765 731 697 662 628 593 558

Btu/h 70400 65400 60500 55500 50500 45500 40500
Watts 4810 5010 5210 5410 5600 5790 5990
Amps 22.9 23.9 24.8 25.8 26.7 27.6 28.6

Lb/h 858 823 788 753 717 681 645

Btu/h 79100 73800 68500 63100 57800 52400 47000
Watts 4970 5210 5450 5680 5920 6150 6380
Amps 23.4 24.5 25.7 26.8 28.0 29.1 30.2

Lb/h 957 922 886 850 814 777 740

Btu/h 88500 82800 77100 71400 65700 60000 54200
Watts 5120 5400 5680 5950 6230 6500 6770
Amps 23.7 25.1 26.5 27.8 29.2 30.5 31.8

Lb/h 1060 1030 991 954 917 880 843

Btu/h 98400 92400 86400 80400 74300 68200 62000
Watts 5260 5580 5900 6220 6530 6850 7160
Amps 24.0 25.6 27.2 28.8 30.3 31.8 33.4

Lb/h 1170 1140 1100 1070 1030 990 952

Btu/h 96300 89900 83500 77000 70500
Watts 5400 5760 6120 6480 6840 7190 7540
Amps 24.2 26.1 27.8 29.6 31.4 33.1 34.9

Lb/h 1290 1260 1220 1180 1150 1110 1070

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.573439E+04 4.154507E+03 2.137325E+01 5.900292E+02
C2 1.376375E+03 -2.447884E+01 -1.338563E-01 1.058389E+01
C3 -2.294099E+02 -6.907507E+00 -4.219874E-02 -2.866358E+00
C4 1.300350E+01 -7.317355E-02 -1.213801E-03 1.419904E-01
C5 -7.553126E+00 7.684664E-01 3.949681E-03 -1.719740E-02
C6 1.178373E-02 1.009877E-03 5.001349E-06 1.830983E-04
C7 -1.587222E-02 -1.360265E-03 -6.736621E-06 -2.466263E-04
C8 1.570324E-02 1.345783E-03 6.664901E-06 2.440006E-04
C9 -4.446765E-03 -3.810922E-04 -1.887334E-06 -6.909489E-05

C10 2.129478E-04 1.824984E-05 9.038111E-08 3.308833E-06

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
