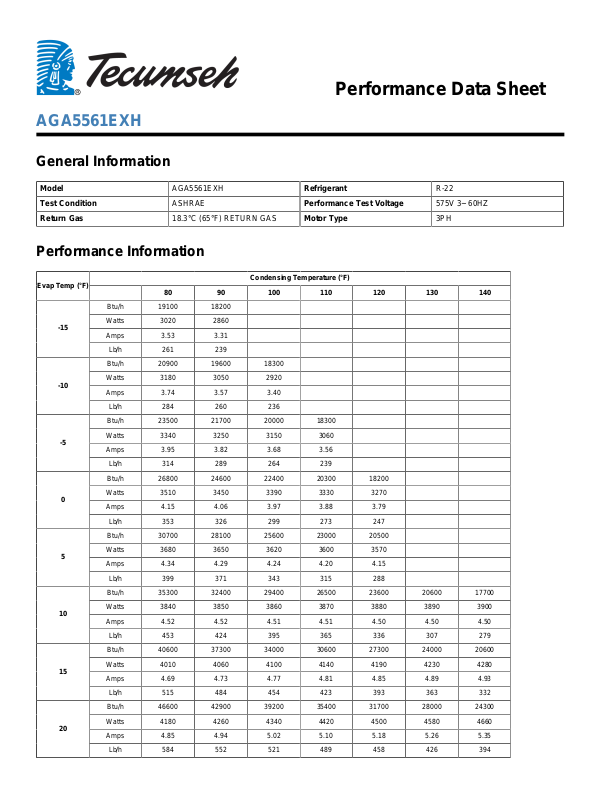

Tecumseh AGA5561EXH Performance Data Sheet

Performance Data Sheet

AGA5561EXH

General Information

Model AGA5561EXH Refrigerant R-22 Test Condition ASHRAE Performance Test Voltage 575V 3~ 60HZ Return Gas 18.3°C (65°F) RETURN GAS Motor Type 3PH

Performance Information

Evap Temp (°F)

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 19100 18200 Watts 3020 2860 Amps 3.53 3.31

Lb/h 261 239

Btu/h 20900 19600 18300 Watts 3180 3050 2920 Amps 3.74 3.57 3.40

Lb/h 284 260 236

Btu/h 23500 21700 20000 18300 Watts 3340 3250 3150 3060 Amps 3.95 3.82 3.68 3.56

Lb/h 314 289 264 239

Btu/h 26800 24600 22400 20300 18200 Watts 3510 3450 3390 3330 3270 Amps 4.15 4.06 3.97 3.88 3.79

Lb/h 353 326 299 273 247

Btu/h 30700 28100 25600 23000 20500 Watts 3680 3650 3620 3600 3570 Amps 4.34 4.29 4.24 4.20 4.15

Lb/h 399 371 343 315 288

Btu/h 35300 32400 29400 26500 23600 20600 17700 Watts 3840 3850 3860 3870 3880 3890 3900 Amps 4.52 4.52 4.51 4.51 4.50 4.50 4.50

Lb/h 453 424 395 365 336 307 279

Btu/h 40600 37300 34000 30600 27300 24000 20600 Watts 4010 4060 4100 4140 4190 4230 4280 Amps 4.69 4.73 4.77 4.81 4.85 4.89 4.93

Lb/h 515 484 454 423 393 363 332

Btu/h 46600 42900 39200 35400 31700 28000 24300 Watts 4180 4260 4340 4420 4500 4580 4660 Amps 4.85 4.94 5.02 5.10 5.18 5.26 5.35

Lb/h 584 552 521 489 458 426 394

Btu/h 53200 49100 45000 40900 36800 32700 28600

Watts 4340 4460 4580 4690 4810 4920 5040 Amps 5.00 5.13 5.26 5.38 5.51 5.63 5.76

Lb/h 660 627 595 562 530 497 464

Btu/h 60400 56000 51500 47100 42600 38100 33600 Watts 4510 4660 4810 4970 5120 5270 5420 Amps 5.13 5.31 5.48 5.65 5.82 5.99 6.16

Lb/h 743 710 676 643 609 575 541

Btu/h 68300 63500 58700 53900 49000 44200 39300 Watts 4660 4860 5050 5240 5430 5620 5800 Amps 5.26 5.47 5.69 5.91 6.13 6.34 6.55

Lb/h 832 799 765 730 696 661 626

Btu/h 76800 71600 66500 61300 56100 50900 45600 Watts 4810 5050 5280 5510 5730 5960 6180 Amps 5.36 5.63 5.89 6.16 6.42 6.68 6.94

Lb/h 929 894 860 825 790 754 718

Btu/h 85900 80400 74900 69300 63800 58200 52600 Watts 4960 5230 5500 5770 6040 6300 6560 Amps 5.45 5.76 6.08 6.39 6.69 7.00 7.30

Lb/h 1030 997 962 926 890 854 818

Btu/h 95500 89700 83900 78000 72100 66200 60200 Watts 5100 5410 5720 6030 6330 6640 6940 Amps 5.52 5.88 6.24 6.60 6.96 7.31 7.66

Lb/h 1140 1110 1070 1030 998 961 924

Btu/h 99600 93400 87200 81000 74700 68400 Watts 5230 5580 5930 6280 6630 6970 7310 Amps 5.57 5.98 6.39 6.80 7.20 7.60 8.00

Lb/h 1260 1220 1180 1150 1110 1070 1040

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 4.438313E+04 4.031312E+03 4.901907E+00 5.726132E+02 C2 1.335853E+03 -2.391434E+01 -3.086649E-02 1.027283E+01 C3 -2.226322E+02 -6.733020E+00 -9.622370E-03 -2.781804E+00 C4 1.261898E+01 -7.043041E-02 -2.716823E-04 1.377840E-01 C5 -7.330643E+00 7.461545E-01 9.043486E-04 -1.669182E-02 C6 1.145626E-02 9.756046E-04 9.901005E-07 1.779816E-04 C7 -1.543113E-02 -1.314101E-03 -1.333627E-06 -2.397343E-04 C8 1.526685E-02 1.300111E-03 1.319428E-06 2.371820E-04 C9 -4.323191E-03 -3.681590E-04 -3.736292E-07 -6.716402E-05

C10 2.070300E-04 1.763049E-05 1.789245E-08 3.216368E-06

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
