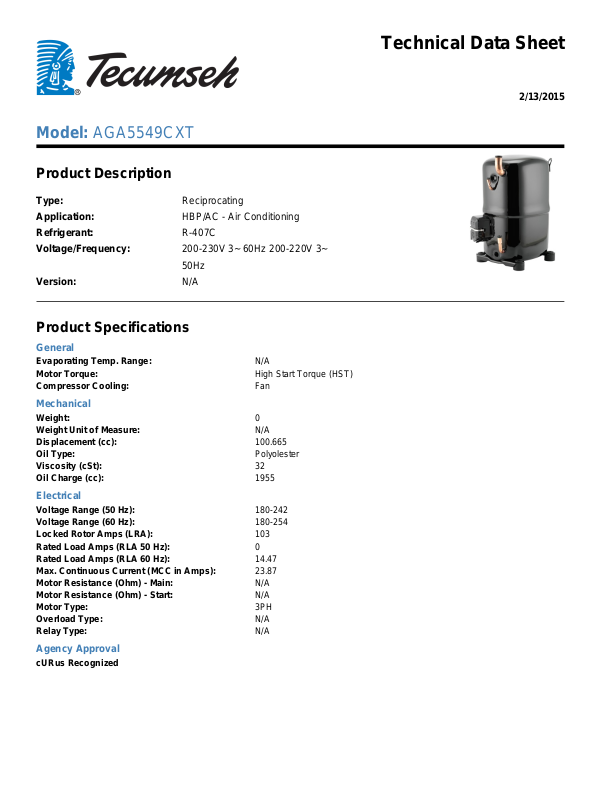

Tecumseh AGA5549CXT Technical Data Sheet

Model: AGA5549CXT

Product Description

Type: Reciprocating
Application: HBP/AC - Air Conditioning
Refrigerant: R-407C
Voltage/Frequency: 200-230V 3~ 60Hz 200-220V 3~

50Hz

Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

General

Evaporating Temp. Range: N/A
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 0
Weight Unit of Measure: N/A
Displacement (cc): 100.665
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 1955

Electrical

Voltage Range (50 Hz): 180-242
Voltage Range (60 Hz): 180-254
Locked Rotor Amps (LRA): 103
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 14.47
Max. Continuous Current (MCC in Amps): 23.87
Motor Resistance (Ohm) - Main: N/A
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
