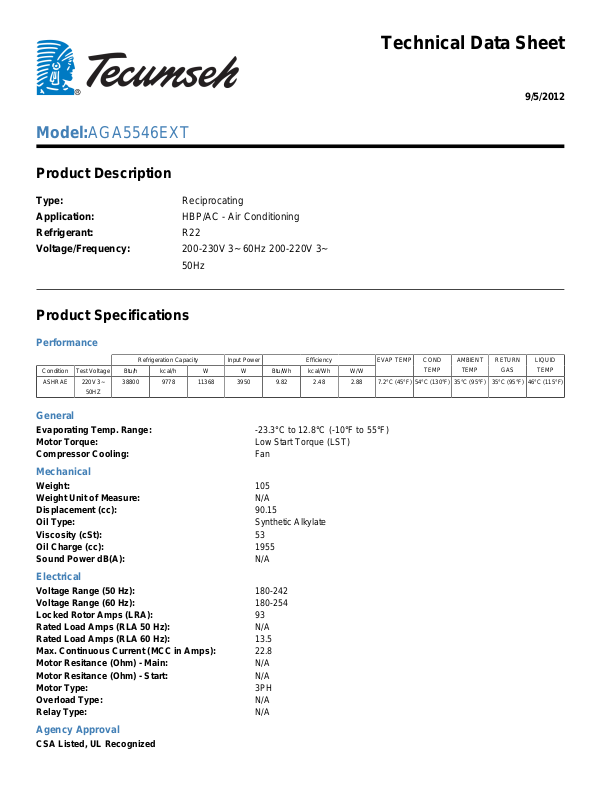

Tecumseh AGA5546EXT User Manual

Model:AGA5546EXT

Product Description

Type: Reciprocating
Application: HBP/AC - Air Conditioning
Refrigerant: R22
Voltage/Frequency: 200-230V 3~ 60Hz 200-220V 3~

50Hz

Product Specifications

Technical Data Sheet

9/5/2012

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 220V 3~

50HZ

38800 9778 11368 3950 9.82 2.48 2.88 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

General

Evaporating Temp. Range: -23.3°C to 12.8°C (-10°F to 55°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Mechanical

Weight: 105
Weight Unit of Measure: N/A
Displacement (cc): 90.15
Oil Type: Synthetic Alkylate
Viscosity (cSt): 53
Oil Charge (cc): 1955
Sound Power dB(A): N/A

Electrical

Voltage Range (50 Hz): 180-242
Voltage Range (60 Hz): 180-254
Locked Rotor Amps (LRA): 93
Rated Load Amps (RLA 50 Hz): N/A
Rated Load Amps (RLA 60 Hz): 13.5
Max. Continuous Current (MCC in Amps): 22.8
Motor Resitance (Ohm) - Main: N/A
Motor Resitance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

CSA Listed, UL Recognized
