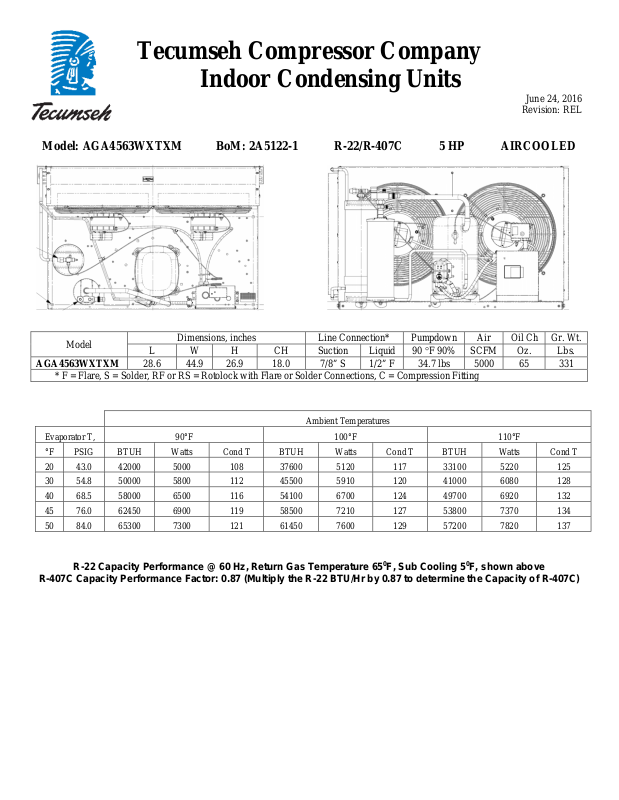

Tecumseh Compressor Company

Indoor Condensing Units

June 24, 2016

Revision: REL

Model: AGA4563WXTXM BoM: 2A5122-1 R-22/R-407C 5 HP AIRCOOLED

AGA4563WXTXM

Ambient Temperatures

R-407C Capacity Performance Factor: 0.87 (Multiply the R-22 BTU/Hr by 0.87 to determine the Capacity of R-407C)

Model

28.6 44.9 26.9 18.0 7/8” S 1/2” F 34.7 lbs 5000 65 331

* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting

Evaporator T, 90°F 100°F 110°F
°F PSIG BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T
20 43.0 42000 5000 108 37600 5120 117 33100 5220 125
30 54.8 50000 5800 112 45500 5910 120 41000 6080 128
40 68.5 58000 6500 116 54100 6700 124 49700 6920 132
45 76.0 62450 6900 119 58500 7210 127 53800 7370 134
50 84.0 65300 7300 121 61450 7600 129 57200 7820 137

R-22 Capacity Performance @ 60 Hz, Return Gas Temperature 650F, Sub Cooling 50F, shown above

Dimensions, inches Line Connection* Pumpdown Air Oil Ch Gr. Wt.

L W H CH Suction Liquid

90 F 90%

SCFM Oz. Lbs.

June 24, 2016

Revision: REL

Specifications/ Parts:

Model AGA4563WXTXM
Unit Bill of Material 2A5122-1 Fan Motor RLA 1.9 Each
Nominal Volts-Hz-Ph 200-230/60/3 Fan Blade 51528-3 (2)
Refrigeration Range 20° to 50°F Fan Guard 70832 (2)
Design Pressure Low 150 Fan Shroud 70611-1
Design Pressure High 450 Low Pressure Control 84026-2
Voltage Range 180 to 253 Condenser 50777-6
Min. Circuit Ampacity 27.5 Receiver Tank 51082-2K
Max. Fuse Size (amps) 45 High Pressure Switch 84095-1
Compressor Model AGA5561WXT Fan Switch 84096-1
Comp. Bill of Material AG134ST-003-J7 Suction Valve 31576
Compressor RLA/LRA 18.8 / 126 Rotolock Valve Gasket 30233
Overload INTERNAL Fan Switch 84096-2
Relay N/A Liquid Valve 31585
Relay Replacement Kit N/A Liquid Valve Gasket 30234
Run Capacitor N/A Baffle 70828
Start Capacitor N/A Crankcase Heater 90699
Start Capacitor Replacement Kit K146-43 Accumulator * TK00044000
Contactor 91014H
Unit Drawing DGU1901-22
Wiring Diagram 91048
* = Equipped Units Only

Fan Motor 810S186B40 (2)

Electrical Diagram

EC72818
