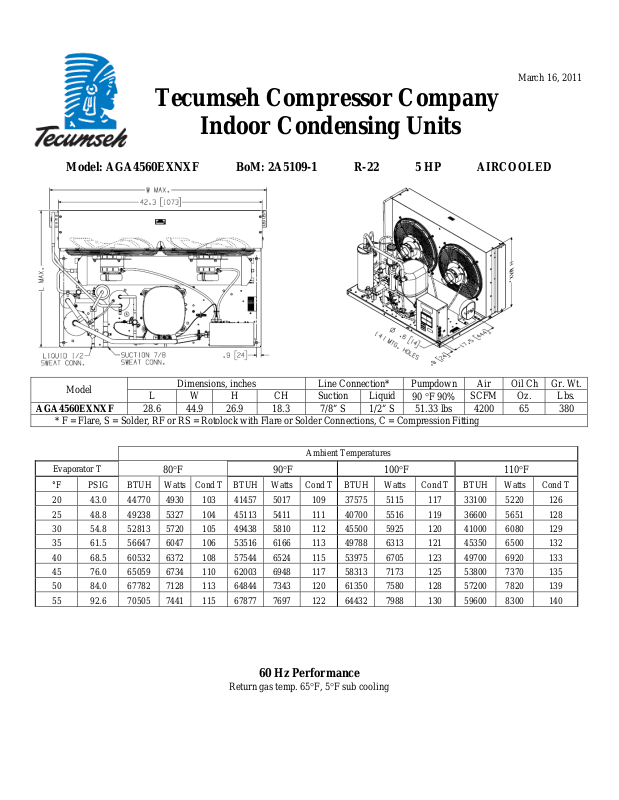

Tecumseh AGA4560EXNXF Performance Data Sheet
Tecumseh Compressor Company
March 16, 2011
Indoor Condensing Units
Model: AGA4560EXNXF BoM: 2A5109-1 R-22 5 HP AIRCOOLED
Model
AGA4560EXNXF
* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting
Evaporator T
°F PSIG BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T
20 43.0 44770 4930 103 41457 5017 109 37575 5115 117 33100 5220 126
25 48.8 49238 5327 104 45113 5411 111 40700 5516 119 36600 5651 128
30 54.8 52813 5720 105 49438 5810 112 45500 5925 120 41000 6080 129
35 61.5 56647 6047 106 53516 6166 113 49788 6313 121 45350 6500 132
40 68.5 60532 6372 108 57544 6524 115 53975 6705 123 49700 6920 133
45 76.0 65059 6734 110 62003 6948 117 58313 7173 125 53800 7370 135
50 84.0 67782 7128 113 64844 7343 120 61350 7580 128 57200 7820 139
55 92.6 70505 7441 115 67877 7697 122 64432 7988 130 59600 8300 140
28.6 44.9 26.9 18.3 7/8” S 1/2” S 51.33 lbs 4200 65 380
Dimensions, inches Line Connection* Pumpdown Air Oil Ch Gr. Wt.
L W H CH Suction Liquid
80F 90F 100F 110F
Return gas temp. 65F, 5F sub cooling
90 F 90%
Ambient Temperatures
SCFM Oz. Lbs.
60 Hz Performance
March 16, 2011
Specifications/ Parts:
Model AGA4560EXNXF Unit Bill of Material 2A5109-1 Fan Motor RLA 1.9 Each Nominal Volts-Hz-Ph 208-230-60-1 Fan Blade 51528-3 (2) Refrigeration Range 20° to 55°F Fan Guard 70832 (2) Design Pressure Low 150 Fan Shroud 70611-1 Design Pressure High 450 High Pressure Switch 84095-1 Voltage Range 187 to 254 Low Pressure Control 84026-2 Min. Circuit Ampacity 42.1 Oil Separator * 704-00003 Max. Fuse Size (amps) 70 Condenser 50777-6 Compressor Model AGA5561EXN Fan Switch 84096-1 Comp. Bill of Material AG133ET-018-P2 Fan Switch 84096-2 Compressor RLA/LRA 30.5 / 165.0 Overload INTERNAL Liquid Valve 56596 Relay 820ARR3H46 Liquid Filter * 70126-3 Run Capacitor 85PR440E90 Sight Glass * 70084-2 Run Capacitor Rating 55MFD 440V(M)VDE Suction Valve * 31529-1 Start Capacitor 85PS330D16 Rotolock Valve Gasket 30233 Start Capacitor Rating 130-156 MFD 330V VDE Discharge Valve 56596 Contactor 91013 Suction Filter * 70082 Unit Drawing DGU1901-45 Accumulator * TK00044000 Wiring Diagram 91263-03 Crankcase Heater 90699 Defrost Timer * N/A Suction Shut Off Valve* 56500-K14 Liquid Shut Off Valve* 56500-K08 Shrader Valve Body* 56510 Valve Core* 56552 * = Equipped Units Only
Fan Motor 810S186B40 (2)
Receiver Tank 51083
Electrical Diagram
