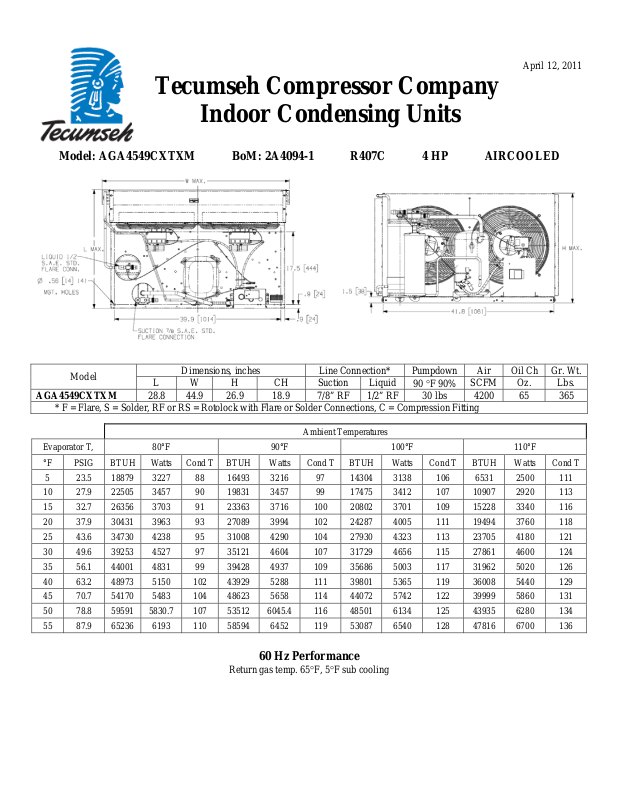

Tecumseh AGA4549CXTXM Performance Data Sheet

Tecumseh Compressor Company
Indoor Condensing Units
Model: AGA4549CXTXM BoM: 2A4094-1 R407C 4 HP AIRCOOLED
April 12, 2011
Model
AGA4549CXTXM
* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting
Ambient Temperatures Evaporator T, 80°F 90°F 100°F 110°F °F PSIG BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T BTUH Watts Cond T
5 23.5 18879 3227 88 16493 3216 97 14304 3138 106 6531 2500 111 10 27.9 22505 3457 90 19831 3457 99 17475 3412 107 10907 2920 113 15 32.7 26356 3703 91 23363 3716 100 20802 3701 109 15228 3340 116 20 37.9 30431 3963 93 27089 3994 102 24287 4005 111 19494 3760 118 25 43.6 34730 4238 95 31008 4290 104 27930 4323 113 23705 4180 121 30 49.6 39253 4527 97 35121 4604 107 31729 4656 115 27861 4600 124 35 56.1 44001 4831 99 39428 4937 109 35686 5003 117 31962 5020 126 40 63.2 48973 5150 102 43929 5288 111 39801 5365 119 36008 5440 129 45 70.7 54170 5483 104 48623 5658 114 44072 5742 122 39999 5860 131 50 78.8 59591 5830.7 107 53512 6045.4 116 48501 6134 125 43935 6280 134 55 87.9 65236 6193 110 58594 6452 119 53087 6540 128 47816 6700 136
28.8 44.9 26.9 18.9 7/8” RF 1/2” RF 30 lbs 4200 65 365
Dimensions, inches Line Connection* Pumpdown Air Oil Ch Gr. Wt.
L W H CH Suction Liquid
90 F 90%
SCFM Oz. Lbs.
60 Hz Performance
Return gas temp. 65F, 5F sub cooling
April 12, 2011
Specifications/ Parts:
Model AGA4549CXTXM Unit Bill of Material 2A4094-1 Fan Motor RLA 1.35 Nominal Volts-Hz-Ph 200-230-60-3 Fan Blade 51529-3 (2) Refrigeration Range 20° to 55° Fan Guard 70832 (2) Design Pressure Low 150 Fan Shroud 70611-1 Design Pressure High 450 High Pressure Switch 84095-1 Voltage Range 180 to 254 Low Pressure Control 84026-2 Min. Circuit Ampacity 22.0 Fan Switch 1 84096-1 Max. Fuse Size (amps) 35 Condenser 50785-4 Compressor Model AGA5549CXT Headmaster Valve * N/A Comp. Bill of Material AG122ST-003-P21 Fan Switch 2 84096-2 Compressor RLA/LRA 15.3 / 103 Overload INTERNAL Liquid Valve 31585 Relay N/A Liquid Filter * N/A Run Capacitor N/A Sight Glass * N/A Run Capacitor Rating N/A Suction Valve 31576 Start Capacitor N/A Rotolock Valve Gasket 30618 Start Capacitor Rating N/A Discharge Valve * N/A Contactor 91014 Suction Filter * N/A Unit Drawing DGU1901-22 Accumulator TK00044000 Wiring Diagram 91048 Crankcase Heater * 90699 Defrost Timer * N/A * = Outdoor Units Only
Options for Outdoor Units Receiver Heater N/A Solenoid Valve N/A
Fan Motor 810S124B38 (2)
Receiver Tank 51082-2K
Electrical Wiring Diagram
